Hardware Installation Kit

Item#: KHI-HWKIT1
Loading ratings...
0 Reviews
Availability:
  • In Stock
Price reduced from $98.97 to $83.97

  • Highlights
  • Complete your cabinet projects quickly and easily with this bundle!
  • Install drawer slides, concealed hinges, and cabinet pulls easily
  • Built-in measuring scales and stops eliminate measuring errors
  • Reliable, repeatable accuracy for professional results
  • Simple to use with any drill - no special tools needed
  • Strong, lightweight materials for easy handling
  • Included adjustable clamps work with all three jigs
Show More

Make hardware installation easy!
Confidently install knobs and pulls, concealed cabinet door hinges, and drawer slides to give your projects the perfect finishing touches using these three ingenious hardware installation jigs. These durable, adjustable jigs position hardware easily and accurately to ensure accurate, repeatable, results every time. And they do it all with an ordinary drill.

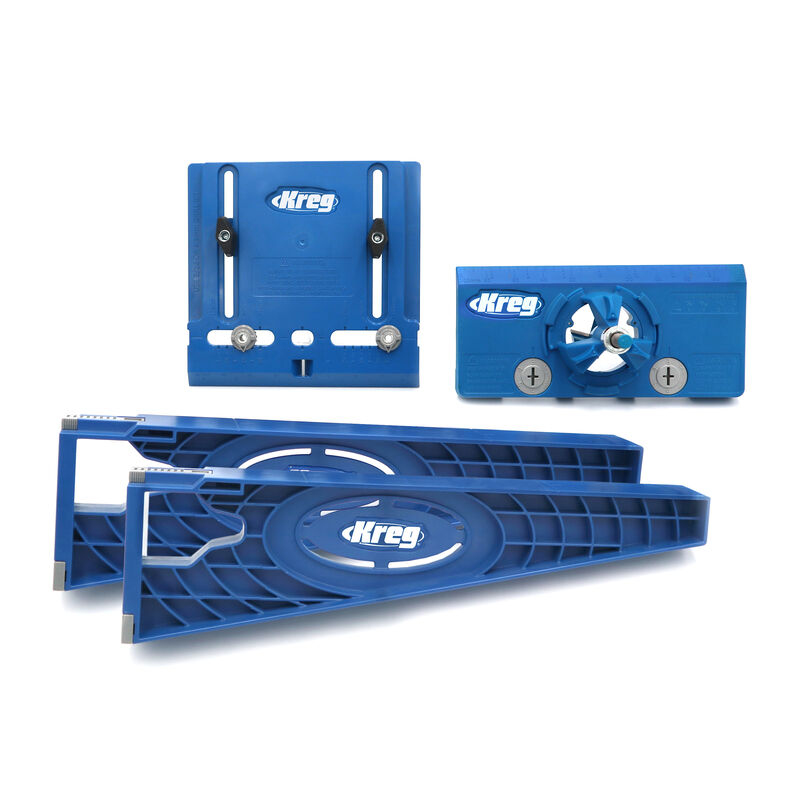

The Hardware Installation Kit contains three jigs—one for drawer slides, one for concealed cabinet hinges, and one for knobs and pulls.

The Cabinet Hardware Jig features moveable, hardened-steel drill guides that lock in place to align with common hole-spacing measurements for cabinet knobs and pulls. This allows you to confidently drill straight, accurately positioned holes. A moveable edge guide and built-in measuring scales (in imperial and metric) ensure that those holes will be positioned where you want them every time, which means you can drill as many holes as you need without the uncertainty and potential mistakes that can come with measuring and marking every one.

The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset, and drills to the perfect depth every time thanks to a depth stop collar. The jig is simple to use, and it ensures that you can mount cabinet doors that fit great and work properly.

The Drawer Slide Jig simplifies drawer installation by aligning slides in the cabinet and on the drawer. Built-in tabs make the jig easy to align to support the slide inside the cabinet, and to support the drawers as you attach the slides to them. The jig is simple to use, and it ensures that every drawer fits right and operates smoothly.

Show More
construction
Durable plastic polymer, hardened steel
capacity
  • Drawer Slide Jig: drawers 14" and deeper
  • Cabinet Hardware Jig: knobs, pulls 2 1/2" to 5" / 64mm to 128mm
  • Concealed Hinge Jig: 35mm hinges with 3mm to 6mm offsets
includes
  • (1) Drawer Slide Jig
  • (1) Concealed Hinge Jig
  • (1) Cabinet Hardware Jig
Quick Tip: How to install knobs on cabinet doors
Quick Tip: How to install knobs on cabinet doors
Kreg Kitchen Makeover Series Part 9: How to dress up kitchen cabinets with new hardware
Kreg Kitchen Makeover Series Part 9: How to dress up kitchen cabinets with new hardware
How to install concealed cabinet door hinges
How to install concealed cabinet door hinges
How to easily install concealed hinges & cabinet doors
How to easily install concealed hinges & cabinet doors
Basics of Building: Mount doors easily and accurately
Basics of Building: Mount doors easily and accurately
Quick Tip: How to install drawer slides easily and accurately
Quick Tip: How to install drawer slides easily and accurately
Kreg Kitchen Makeover Series Part 3: How to install drawers
Kreg Kitchen Makeover Series Part 3: How to install drawers
Easy
Easy

Jig sets up easily to locate knobs or pulls exactly where you want them.

Repeatable
Repeatable

Confidently mount hardware that fits right — every time.

Adjustable
Adjustable

Indexing cams adjust to the correct hinge offset.

Efficient
Efficient

Included high-quality carbide-tipped bit and built-in stop collar ensures smooth, clean holes drilled to the perfect depth.

Accurate
Accurate

Tabs register the jig to the cabinet side and frame for foolproof positioning and repeatable results without measuring and marking over and over.

Versatile
Versatile

Reversible design also supports the drawer box during installation to make the process easy.
