Ultimate Hardware Installation Kit
-
Select options above to show availability
- Highlights
- Complete every step of cabinet installation with this bundle!
- Install drawer slides, concealed hinges, cabinet pulls, and doors easily
- Built-in measuring scales and stops eliminate measuring errors
- Reliable, repeatable accuracy for professional results
- Simple to use with any drill - no special tools needed
- Strong, lightweight materials for easy handling
- For use with frameless or face-frame cabinets
Make hardware installation easy!
Confidently install knobs and pulls, concealed cabinet door hinges, and install drawers and doors to give your projects the perfect finishing touches using these three ingenious hardware installation jigs. These durable, adjustable jigs position hardware easily and accurately to ensure accurate, repeatable, results every time. And they do it all with an ordinary drill.

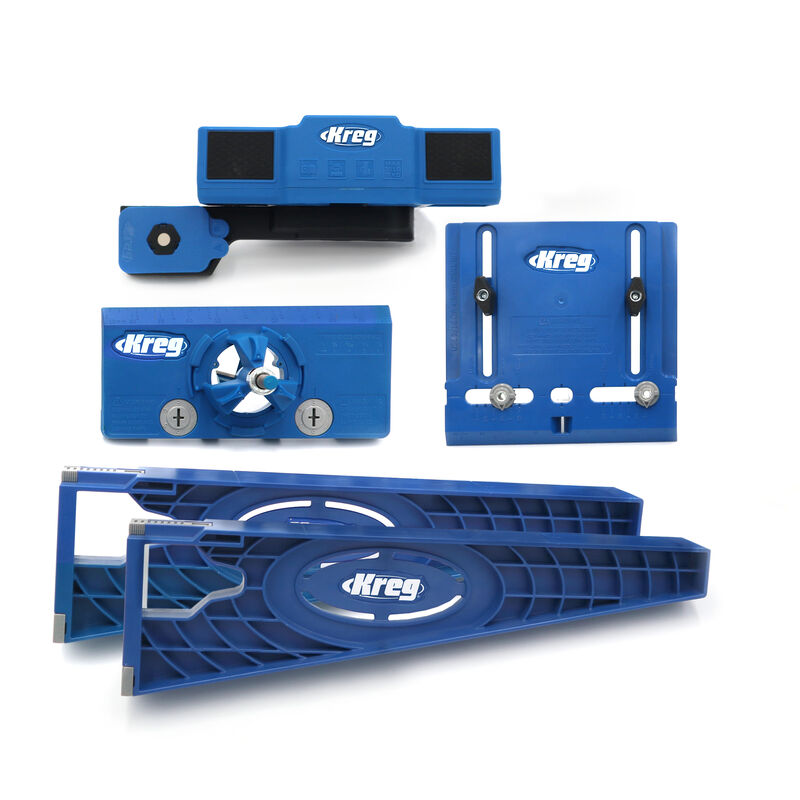

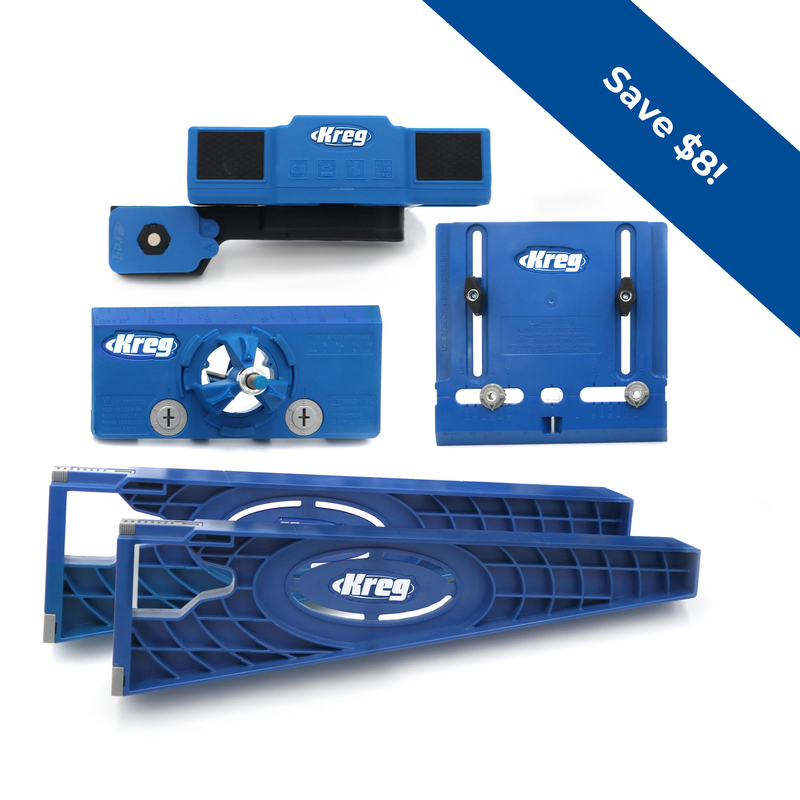

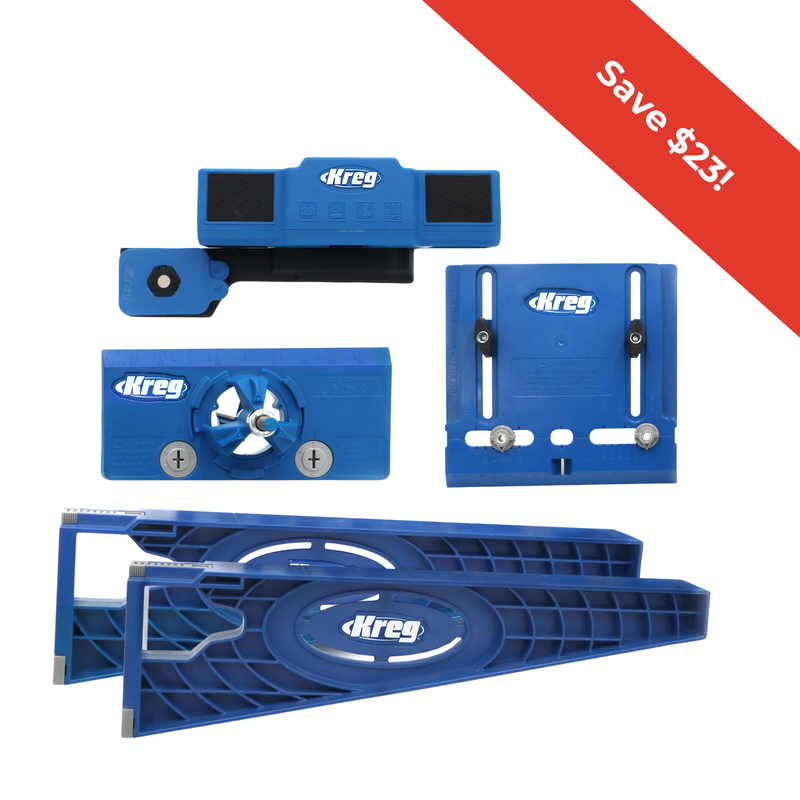

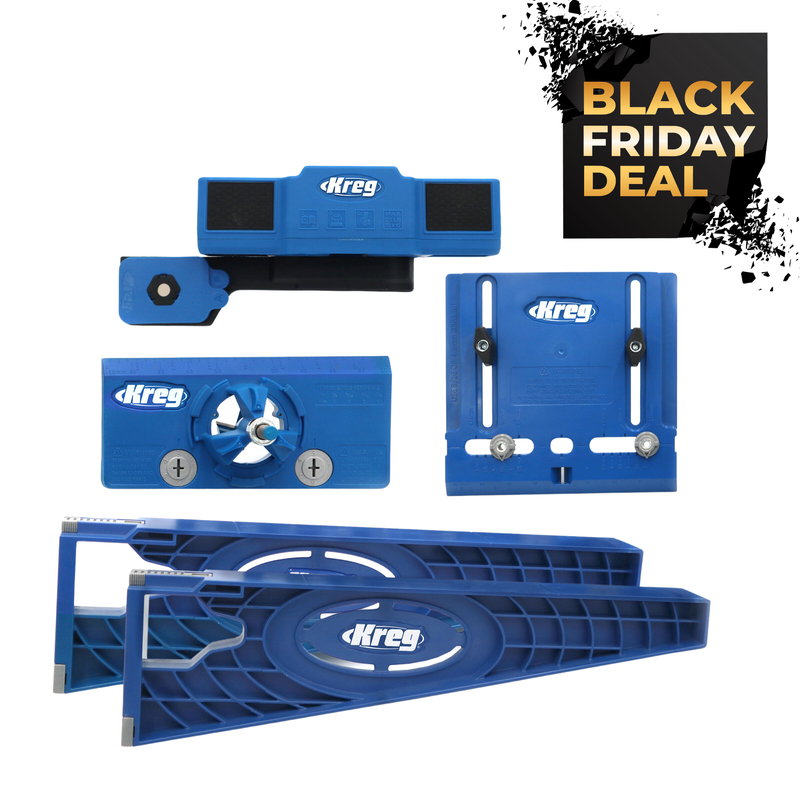

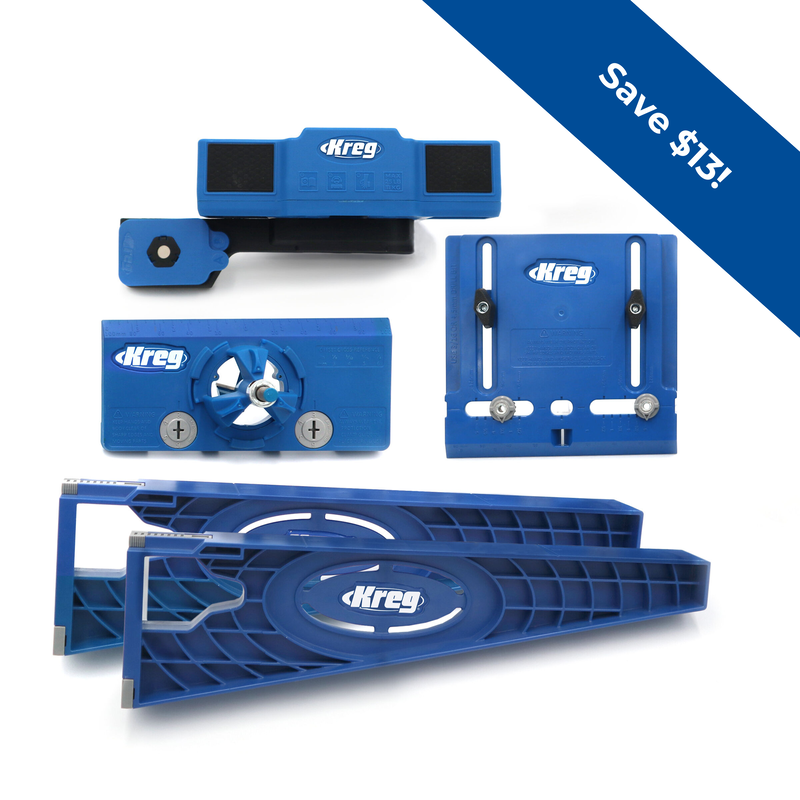

The Ultimate Hardware Installation Kit contains four jigs—one for drawer slides, one for concealed cabinet hinges, one for installing doors, and one for knobs and pulls.

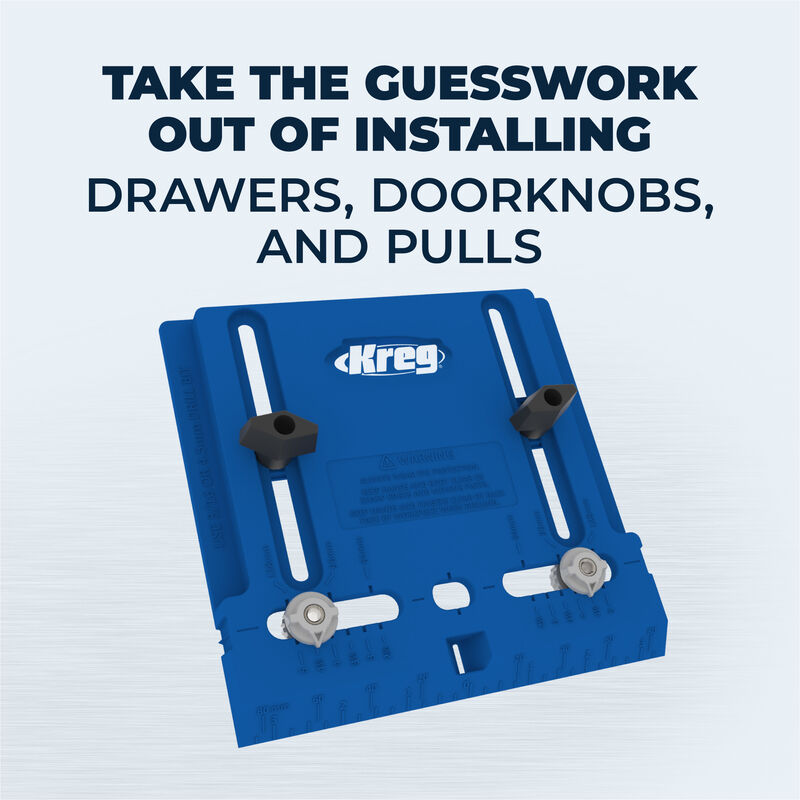

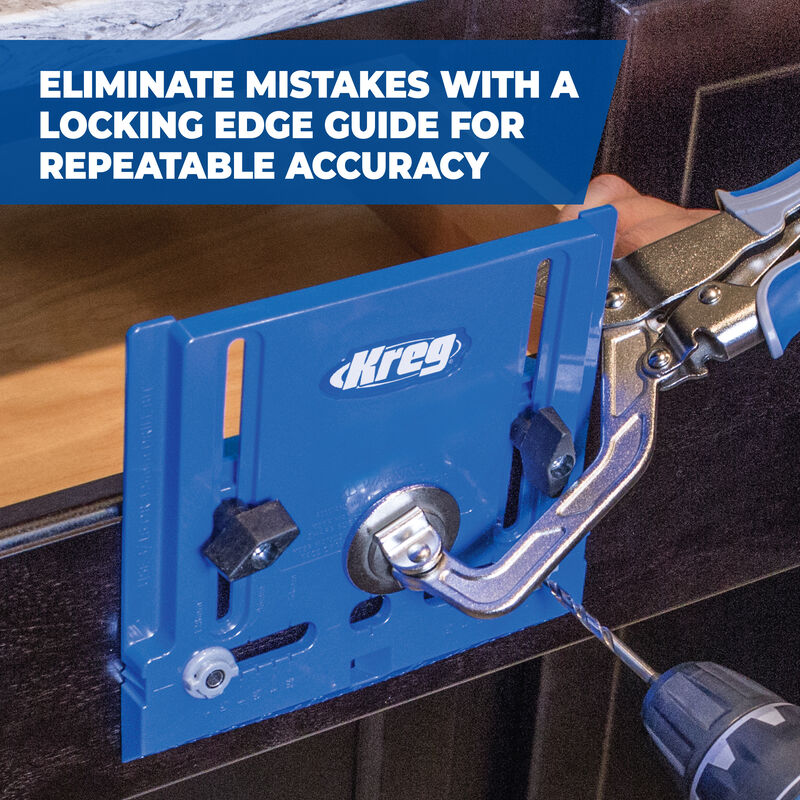

The Cabinet Hardware Jig features moveable, hardened-steel drill guides that lock in place to align with common hole-spacing measurements for cabinet knobs and pulls. This allows you to confidently drill straight, accurately positioned holes. A moveable edge guide and built-in measuring scales (in imperial and metric) ensure that those holes will be positioned where you want them every time, which means you can drill as many holes as you need without the uncertainty and potential mistakes that can come with measuring and marking every one.

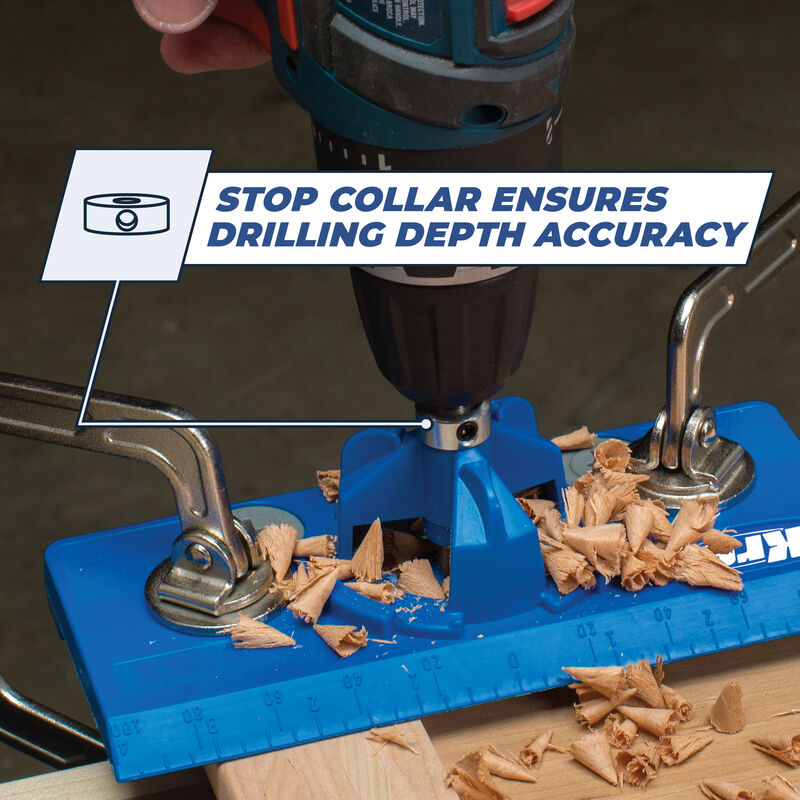

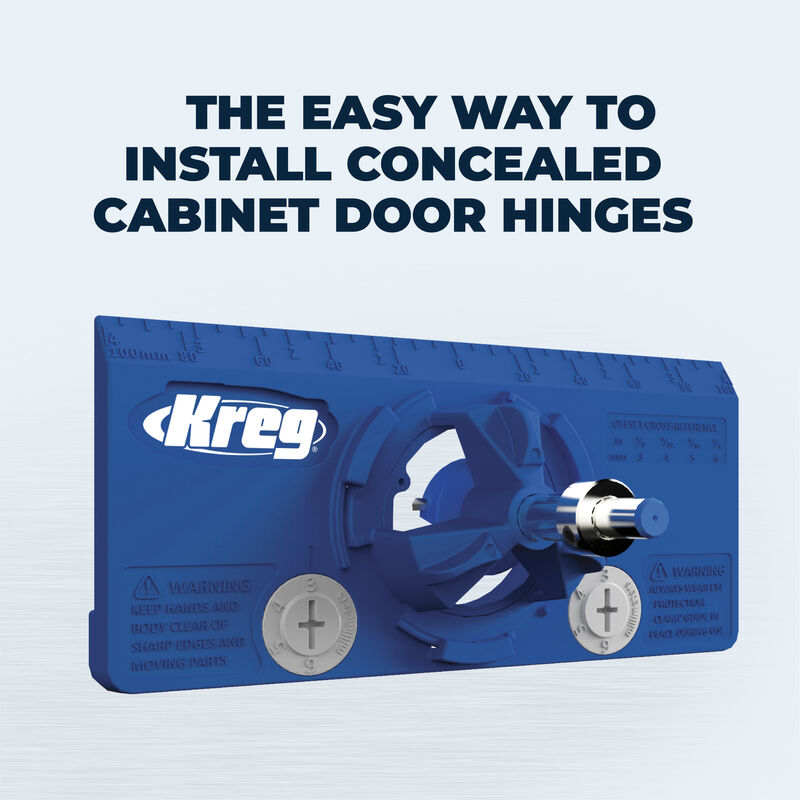

The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset, and drills to the perfect depth every time thanks to a depth stop collar. The jig is simple to use, and it ensures that you can mount cabinet doors that fit great and work properly.

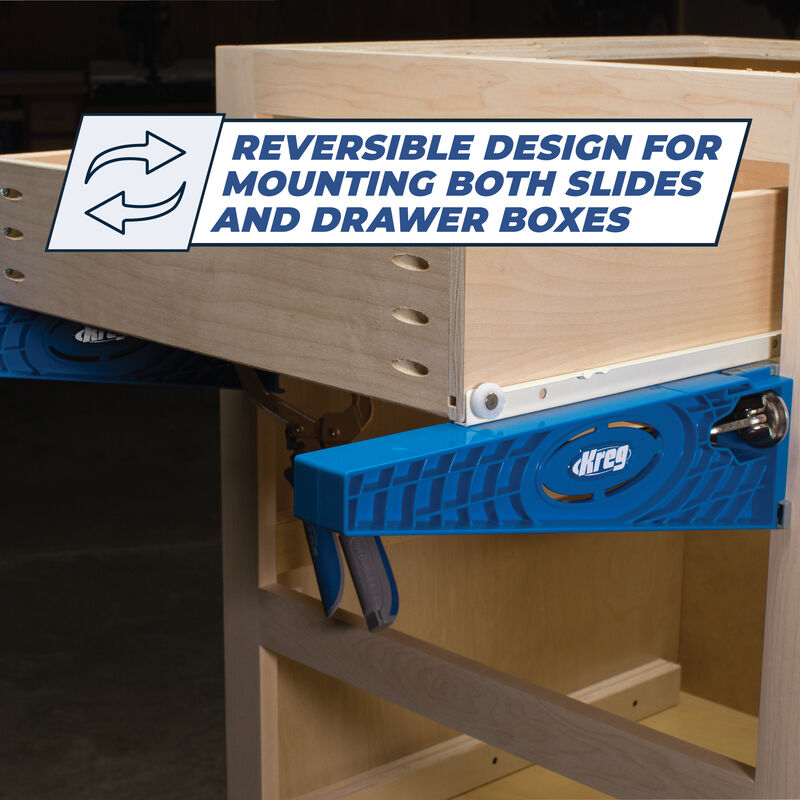

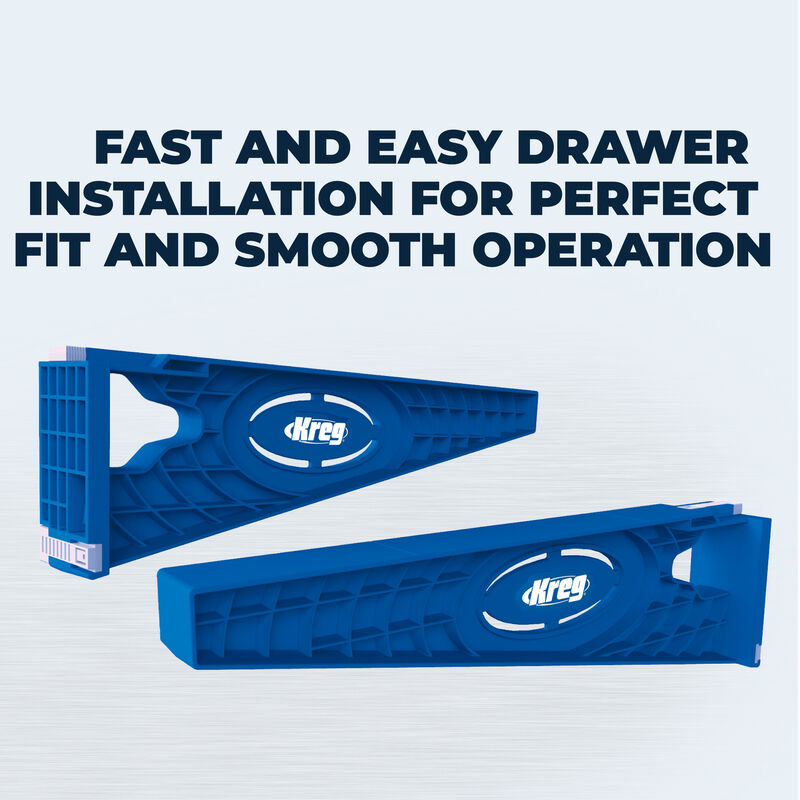

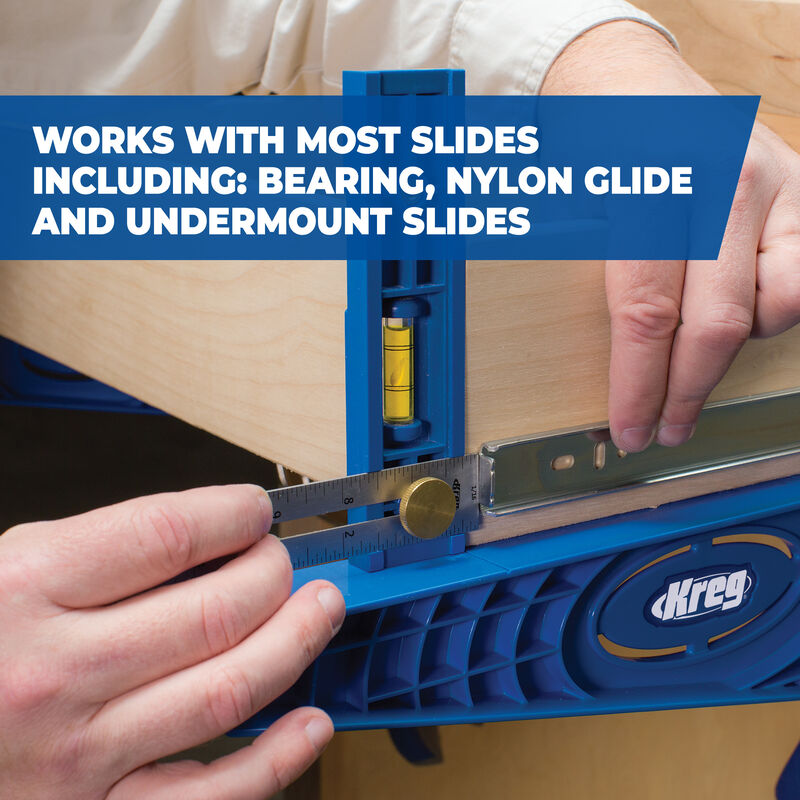

The Drawer Slide Jig simplifies drawer installation by aligning slides in the cabinet and on the drawer. Built-in tabs make the jig easy to align to support the slide inside the cabinet, and to support the drawers as you attach the slides to them. The jig is simple to use, and it ensures that every drawer fits right and operates smoothly.

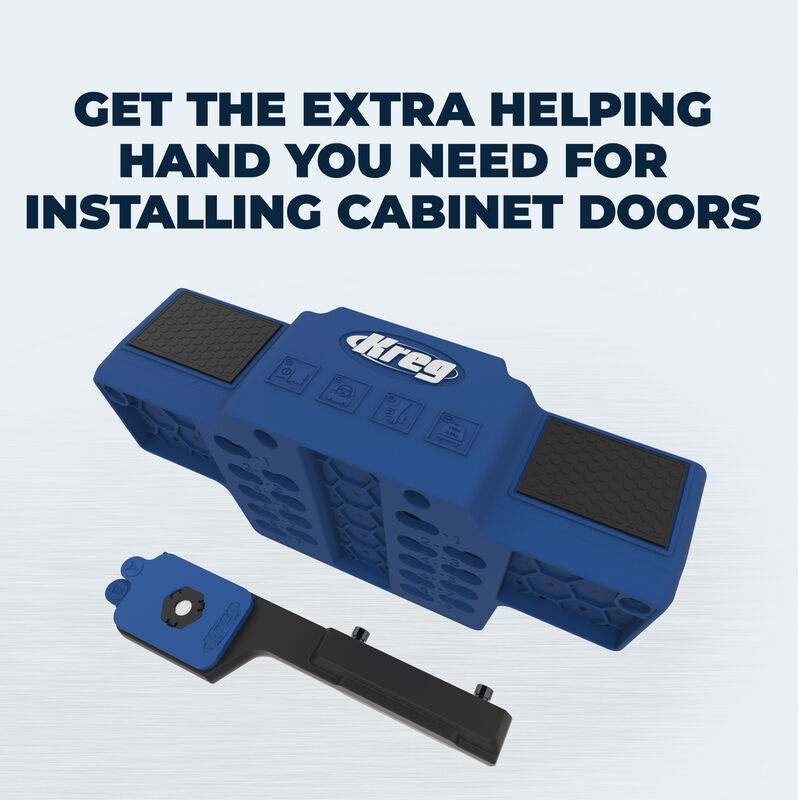

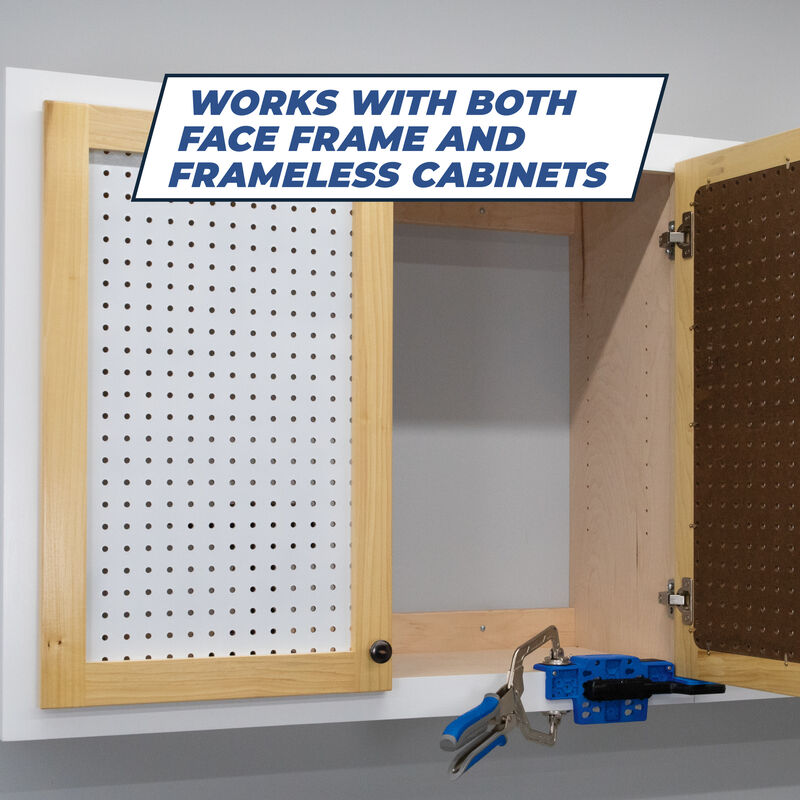

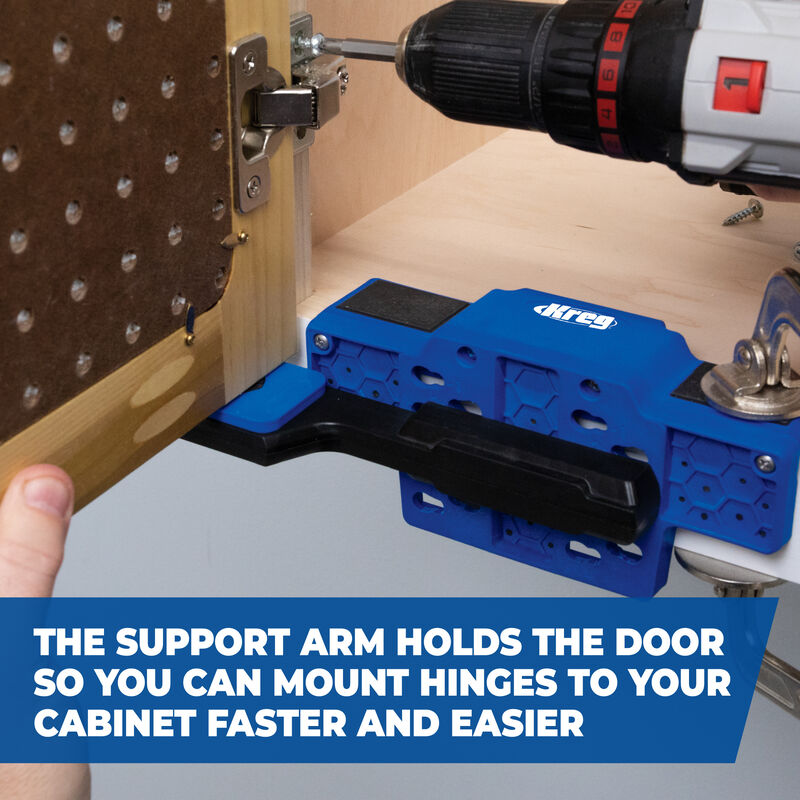

The Cabinet Door Mounting Jig makes the job of installing cabinet doors a breeze – whether you’re working with face frames or frameless cabinets. It works with both left-hand and right-hand doors. The jig features a support arm that helps you hold the door with one hand, while your other hand is free to mount the hinges to the cabinet. The Cabinet Door Mounting Jig also allows you to position your cabinet doors precisely. Adjust the support arm to one of the nine different positions to get your doors placed exactly where you want them.
- Drawer Slide Jig: drawers 14" and deeper
- Cabinet Hardware Jig: knobs, pulls 2 1/2" to 5" / 64mm to 128mm
- Concealed Hinge Jig: 35mm hinges with 3mm to 6mm offsets
- Cabinet Door Mounting Jig: 25 pound doors
- (1) Drawer Slide Jig
- (1) Concealed Hinge Jig
- (1) Cabinet Hardware Jig
- (1) Cabinet Door Mounting Jig
Easy
Jig sets up easily to locate knobs or pulls exactly where you want them.
Repeatable
Confidently mount hardware that fits right — every time.
Adjustable
Indexing cams adjust to the correct hinge offset.
Efficient
Included high-quality carbide-tipped bit and built-in stop collar ensures smooth, clean holes drilled to the perfect depth.
Accurate
Tabs register the jig to the cabinet side and frame for foolproof positioning and repeatable results without measuring and marking over and over.
Precise
Fine tune door height with included micro-adjustment shims.
