This works well Easy to
"This works well Easy to setup. Having the included bit and height adjustment is jey."
Door Hinge Routing Jig

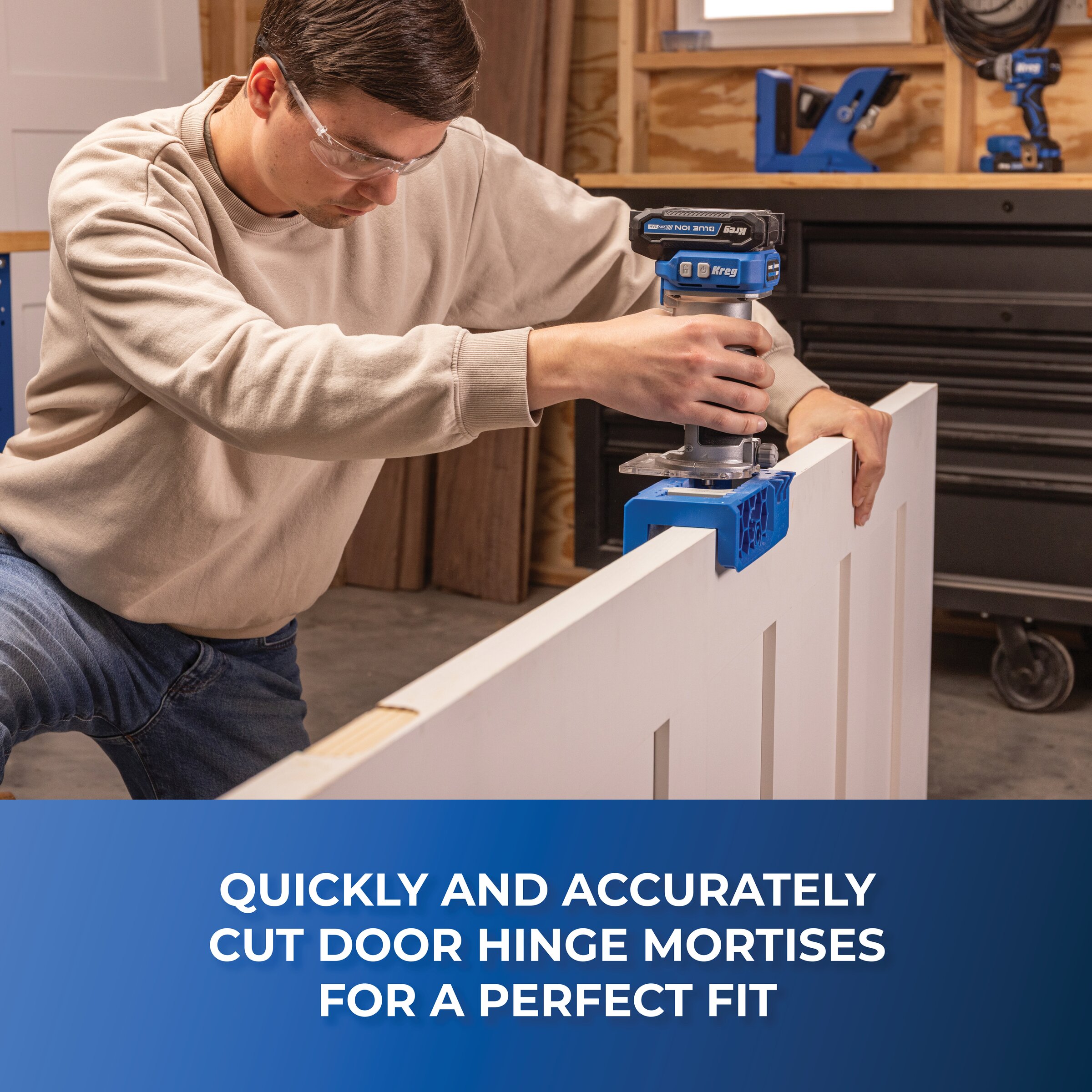

Quickly and accurately cut door hinge mortises for a perfect fit.
Overall rating: 3.5 / 5 from 6 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Mortise too big
"I have several kreg tools and jigs and very happy with the results. When I used this door hinge jig I was extremely disappointed. The final result was the mortise was 1/16" too long. I have made my own jigs for this job but it was for 1 3/8" doors. I usually have to tap the hinge into the mortise with a hammer for a perfect fit. Had to mortise a 1 3/4" exterior door and thought this would be an excellent addition to my door hanging arsenal. Guess I'll have to make my own or buy someone else's jig."
I haven’t used it yet
"I haven’t used it yet but it looks better than the pictures showed"
Door Hinge Routing Template Easy Setup
"I was impressed by how easy it was to setup the door hinge jig and it only required slight adjustments to support a pre-hung door casing with new doors. I did notice that the mortice was slightly larger than the hinge (1/16") which made lining up the hinges a little challenging. All in all, easy to use and quick setup made the job go very smooth"
Exceedingly low quality. Plastic deforms
"Exceedingly low quality. Plastic deforms when tightened on door. I had to make shims to prevent the mortise to be both too large and crooked."
It worked very well with
"It worked very well with a full-size router."
Q&A
- Will this jig work for square edge hinges?
- We only have it for the rounded hinges. You could make it with this and chisel out the rest.
- Can it be used with any router?
- Yep. Any router will work.
Door Hinge Routing Jig
Availability:
-
In Stock
New
$29.99
- Highlights

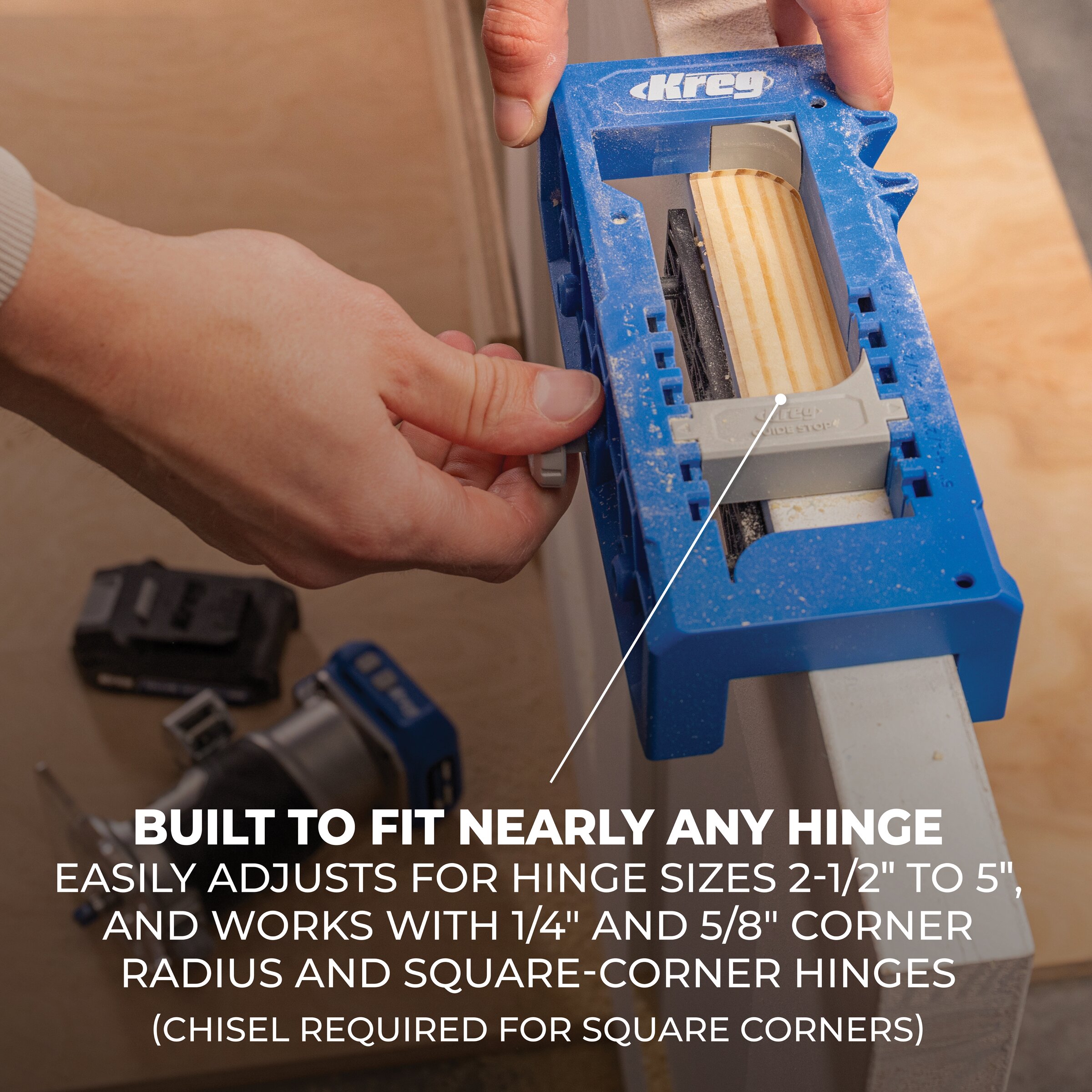

- Easily adjustable for hinge length and corner radius (2-1/2" to 5" hinges)
- Precise depth settings for perfect mortising
- Accurately rout latches for 1-3/8" and 1-3/4" doors

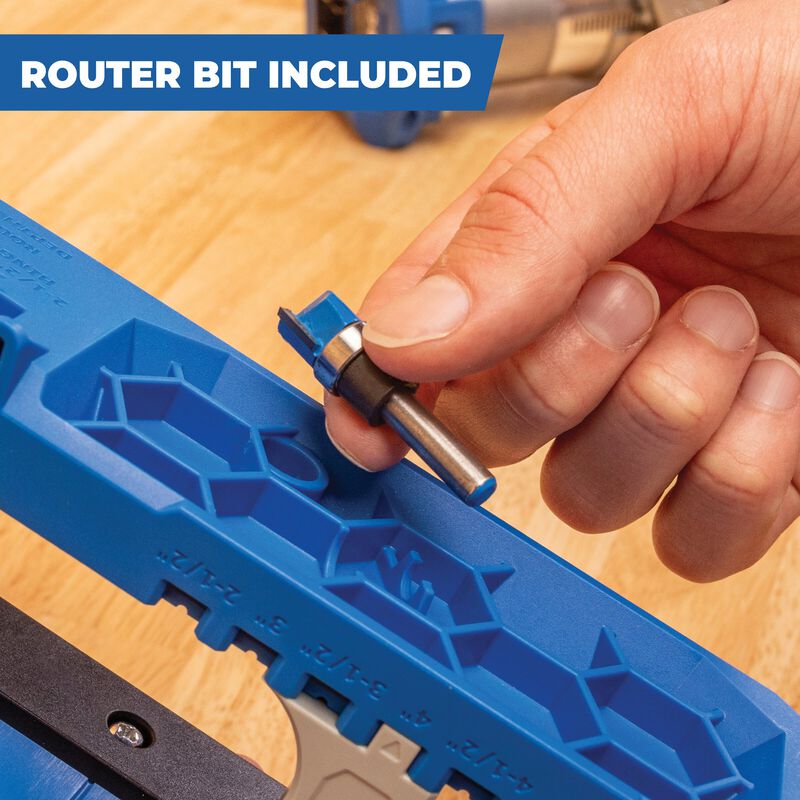

- Includes 1/2" Straight Router Bit — 1/4" shank
- GripMaxx™ clamp surface secures the jig without damaging door surfaces

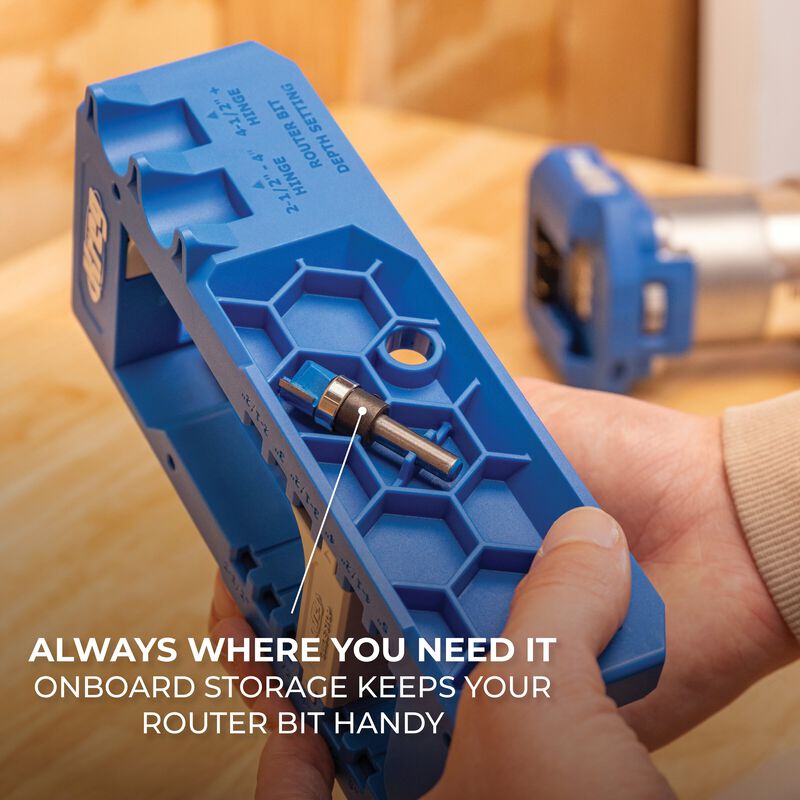

- Onboard router bit storage keeps the included bit conveniently at hand
Show More
You Might Also Like
Kreg 20V Ionic Drive™ 1/4" Trim Router Kit
New
Limited Time Offer
Professional Quality
Delivers consistent, professional-quality results.
Fast Adjustments, Perfect Fit
Easy adjustments and integrated components make for simple and quick setup for common door hinge types.
Versatility Meets Precision
Works on a wide range of door hinge types with intuitive setup.

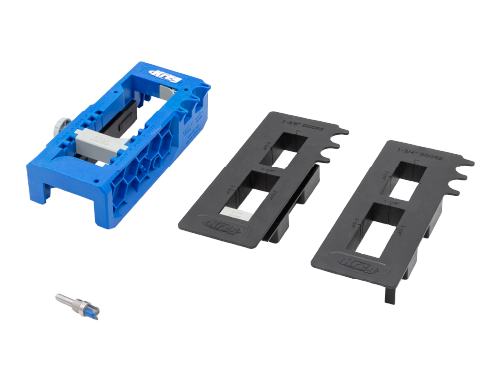

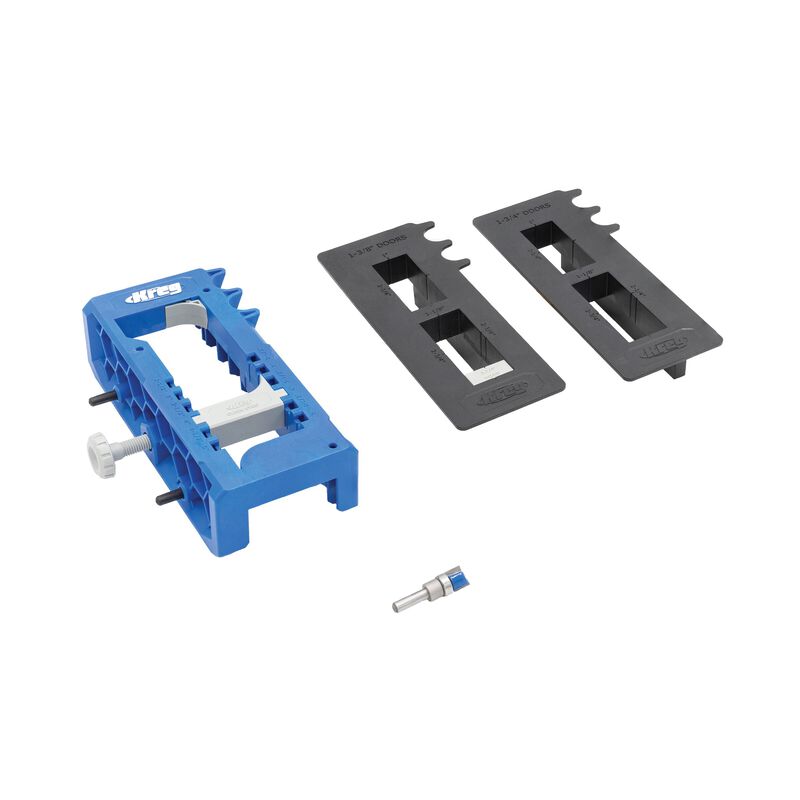

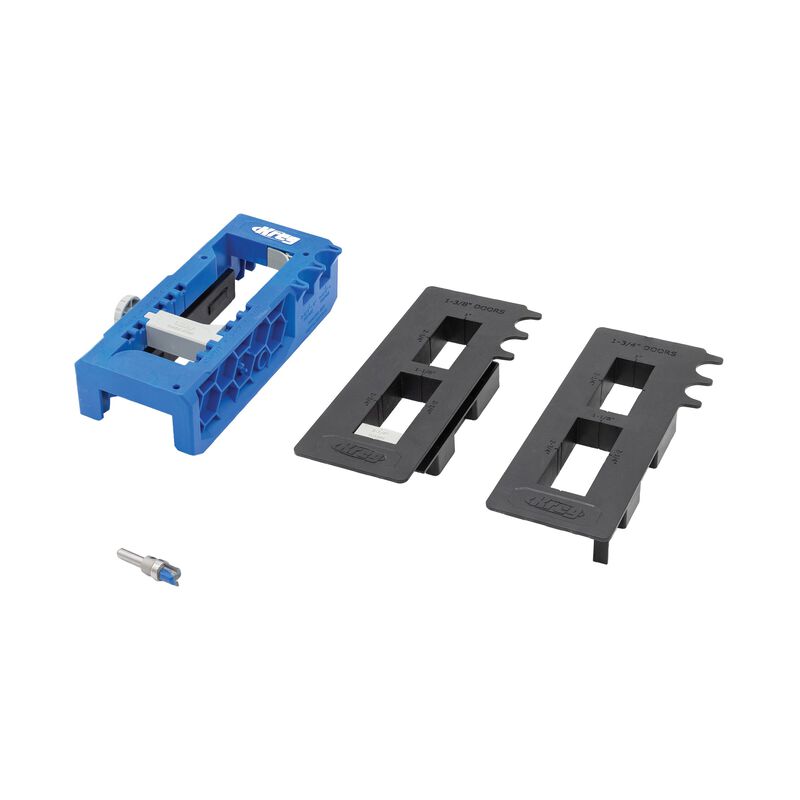

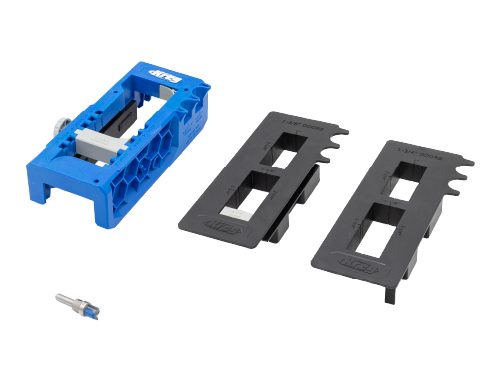

All-In-One Jig
Includes everything you need to make most door hinge types.

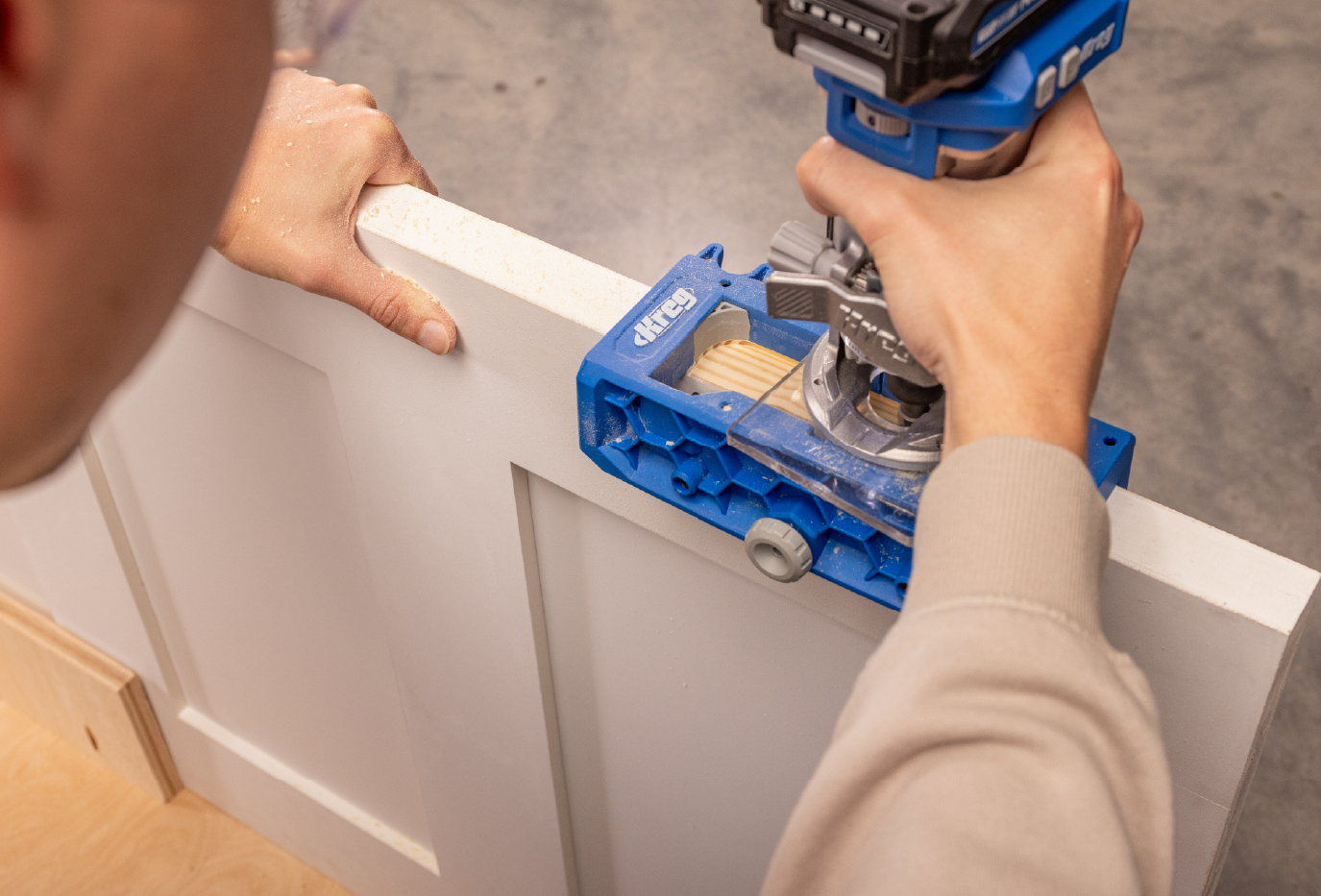

Easy as 1,2,3
Set the hinge size, clamp the jig in place, rout the mortise.

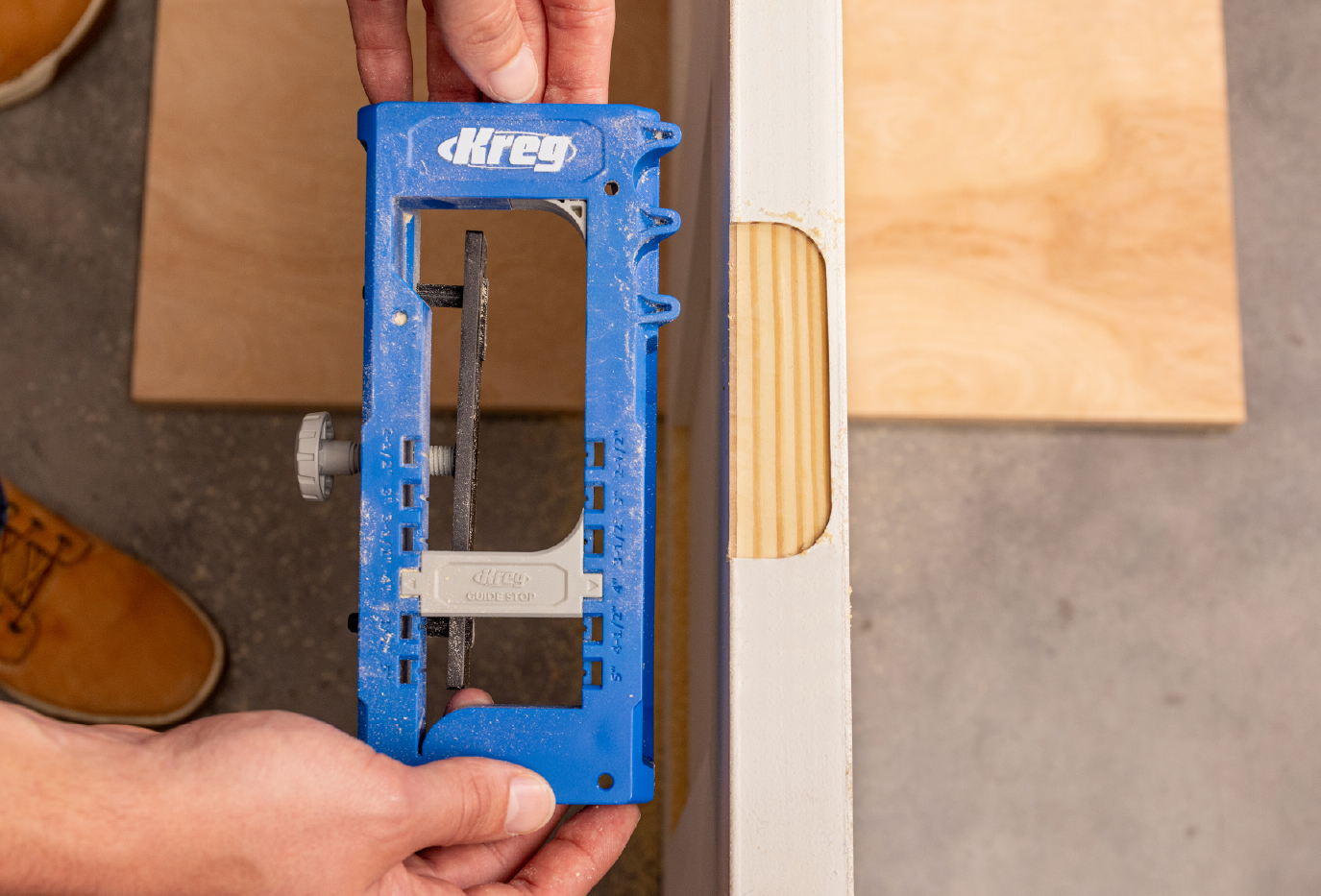

Adjustable
Adjustable for hinge sizes from 2-1/2" to 5".

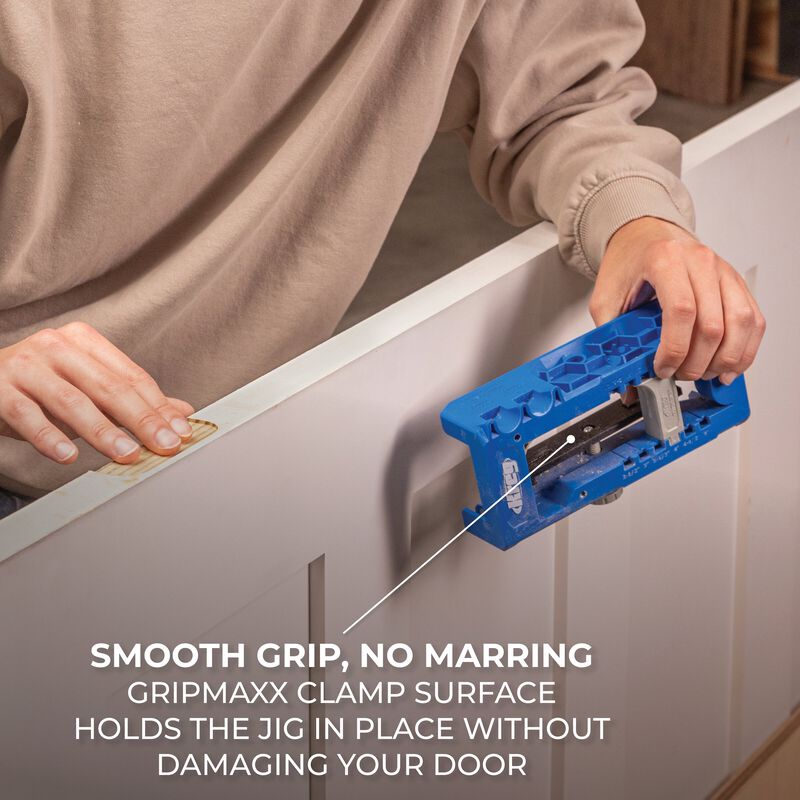

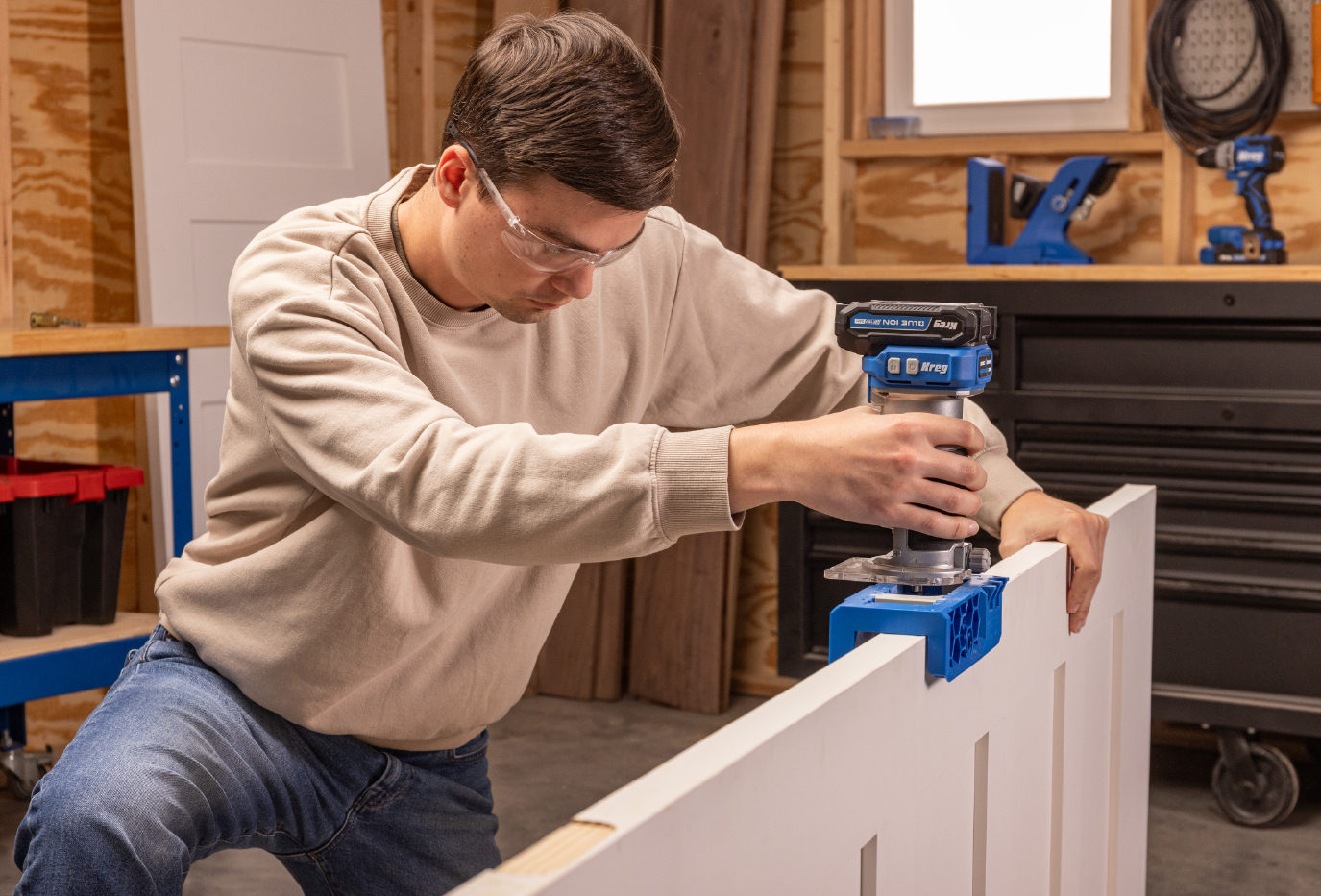

Non-Marring
GripMaxx™ clamp surface secures the jig without damaging your door.
Consistent

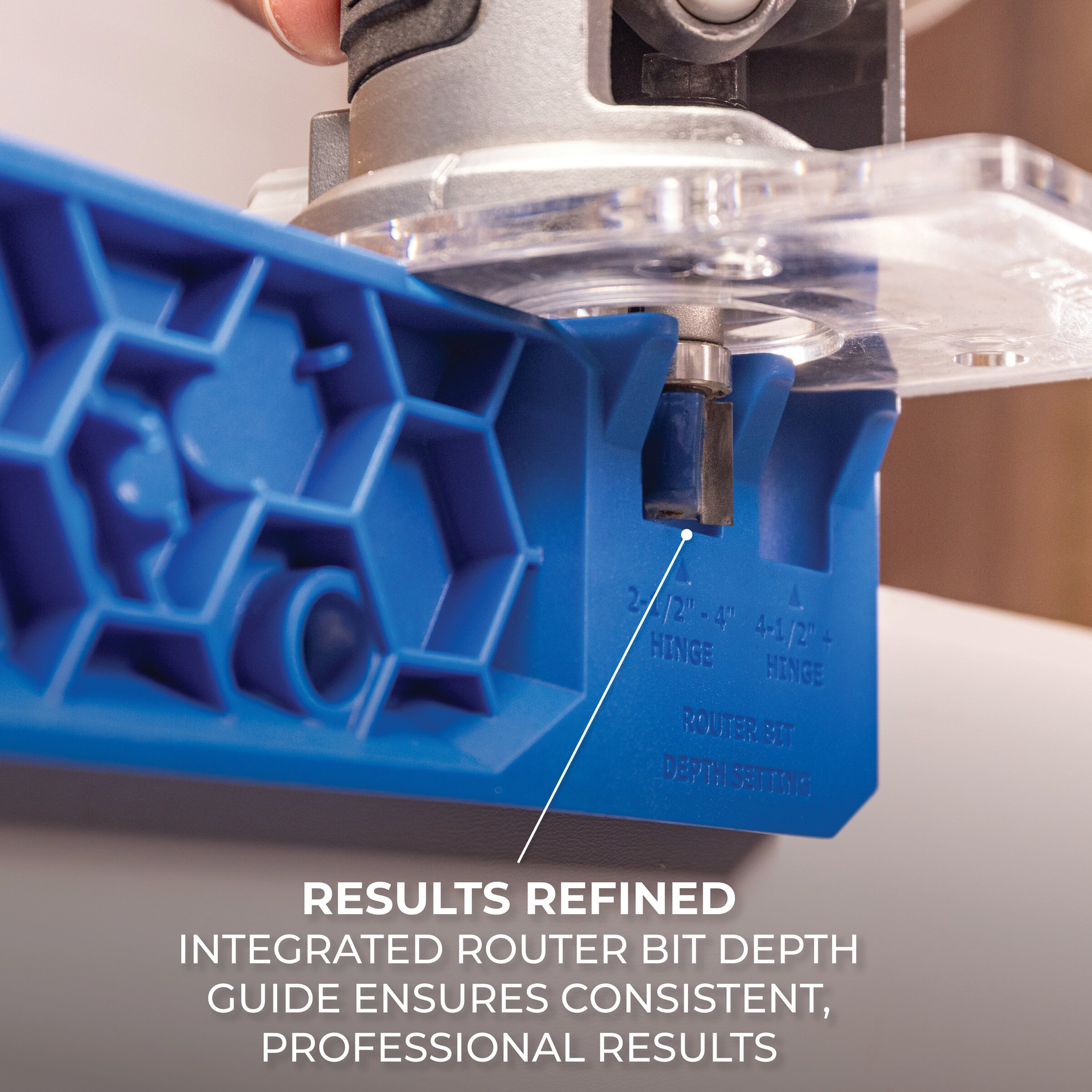

Integrated cutting depth guide ensures consistent results.

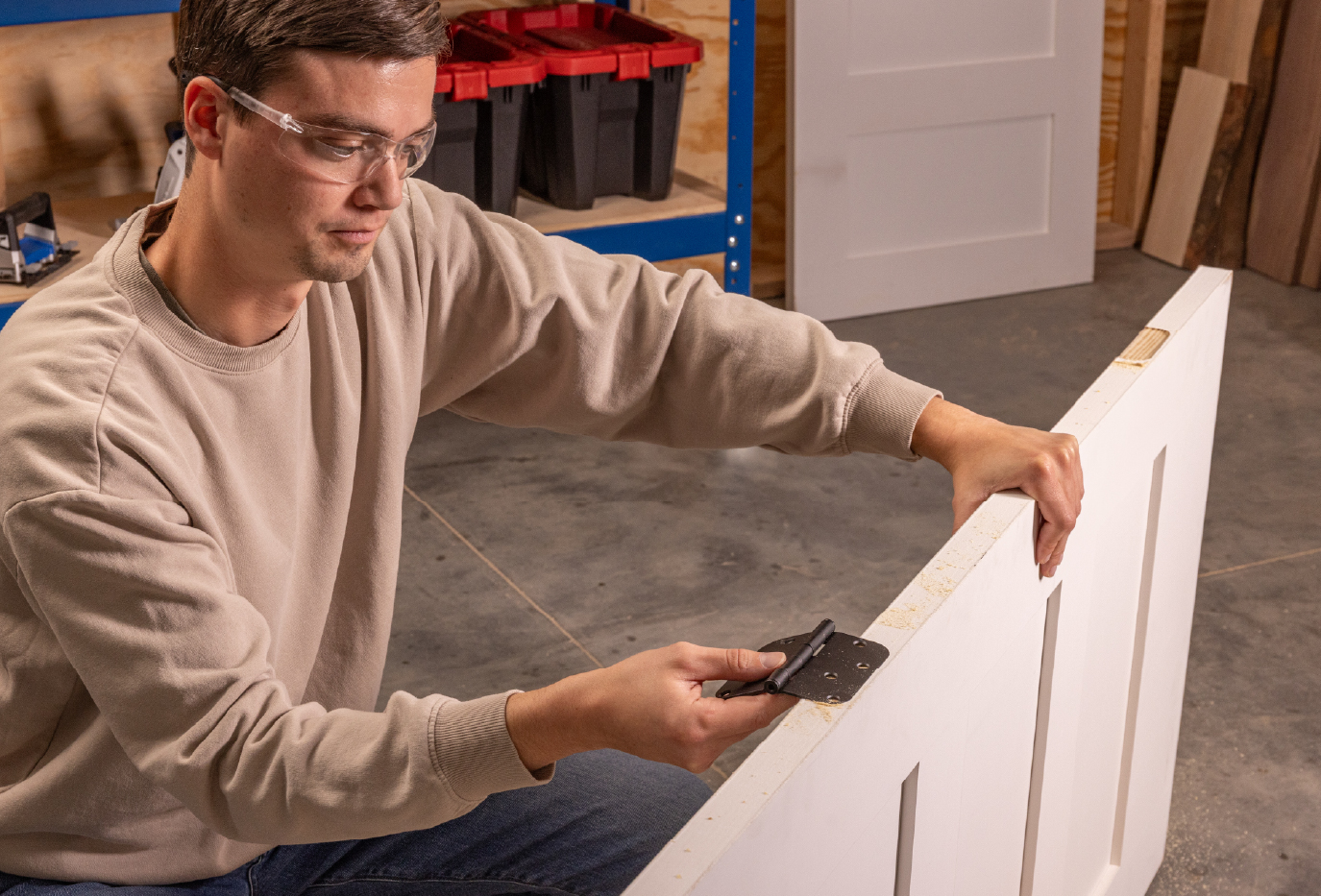

Perfect Fit
Get pro-level results for new installations, renovations, and custom doors.

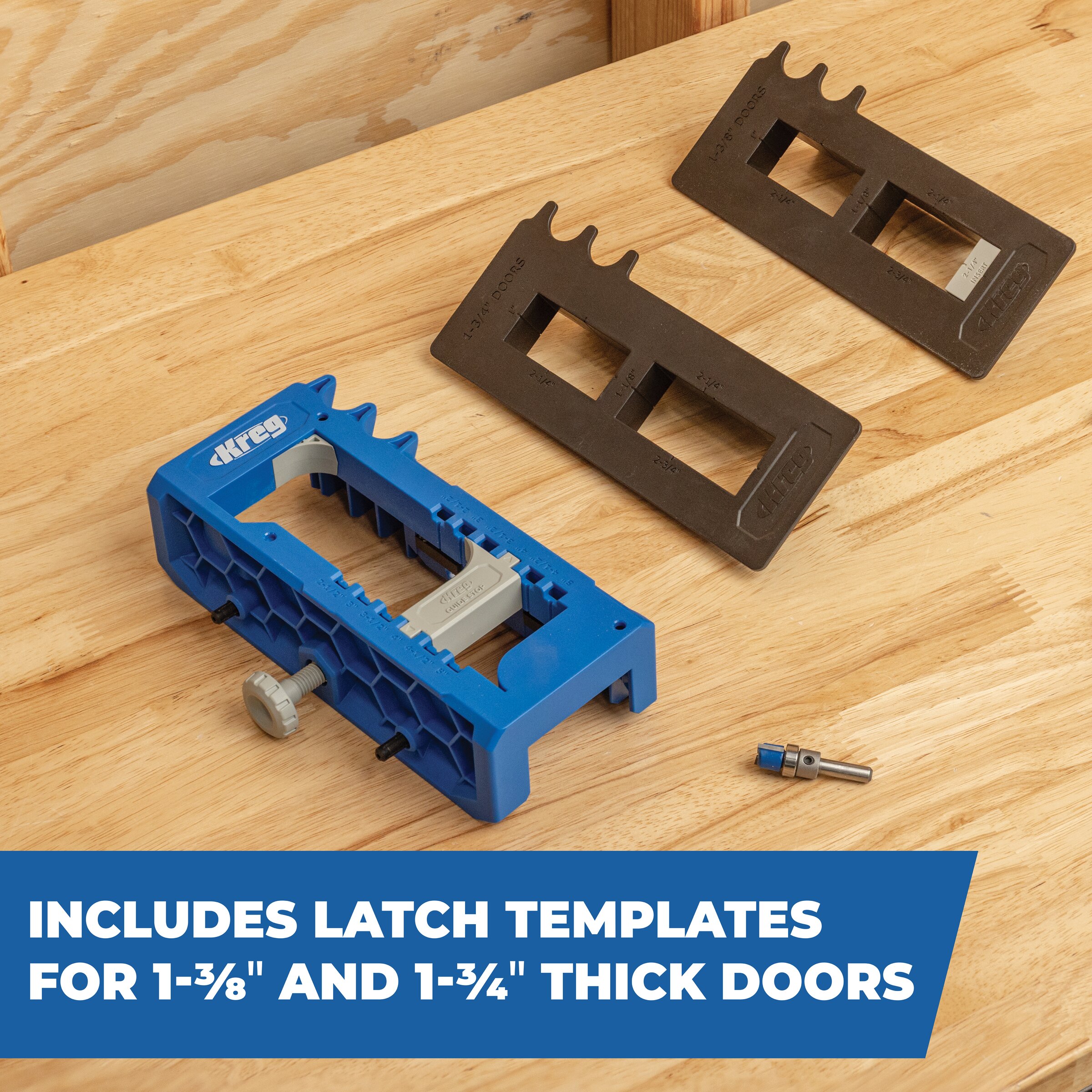

Versatile
Includes latch templates for 1-3/8" to 1-3/4" thick doors.
