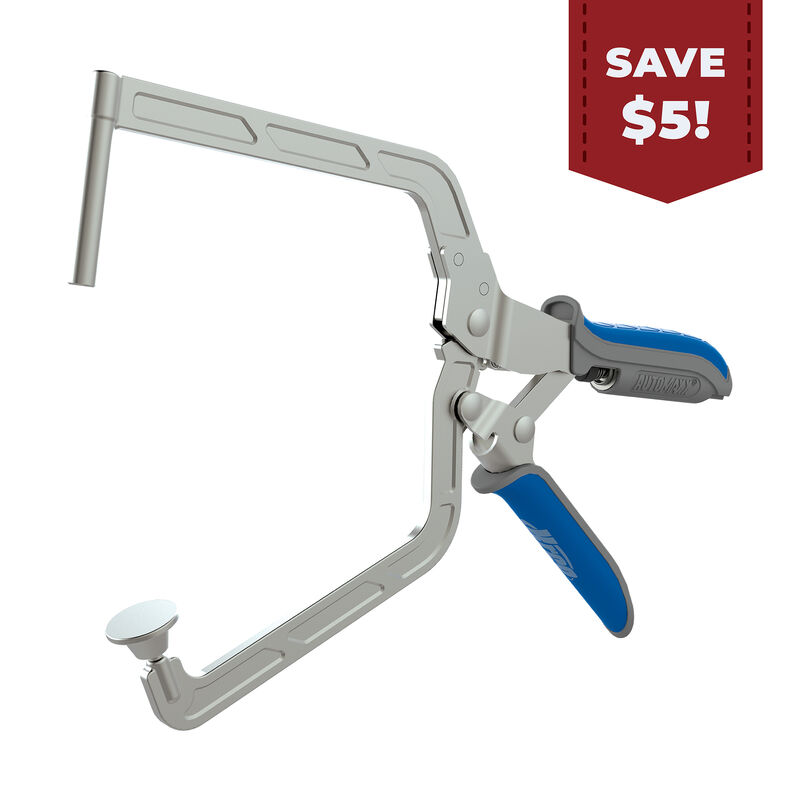

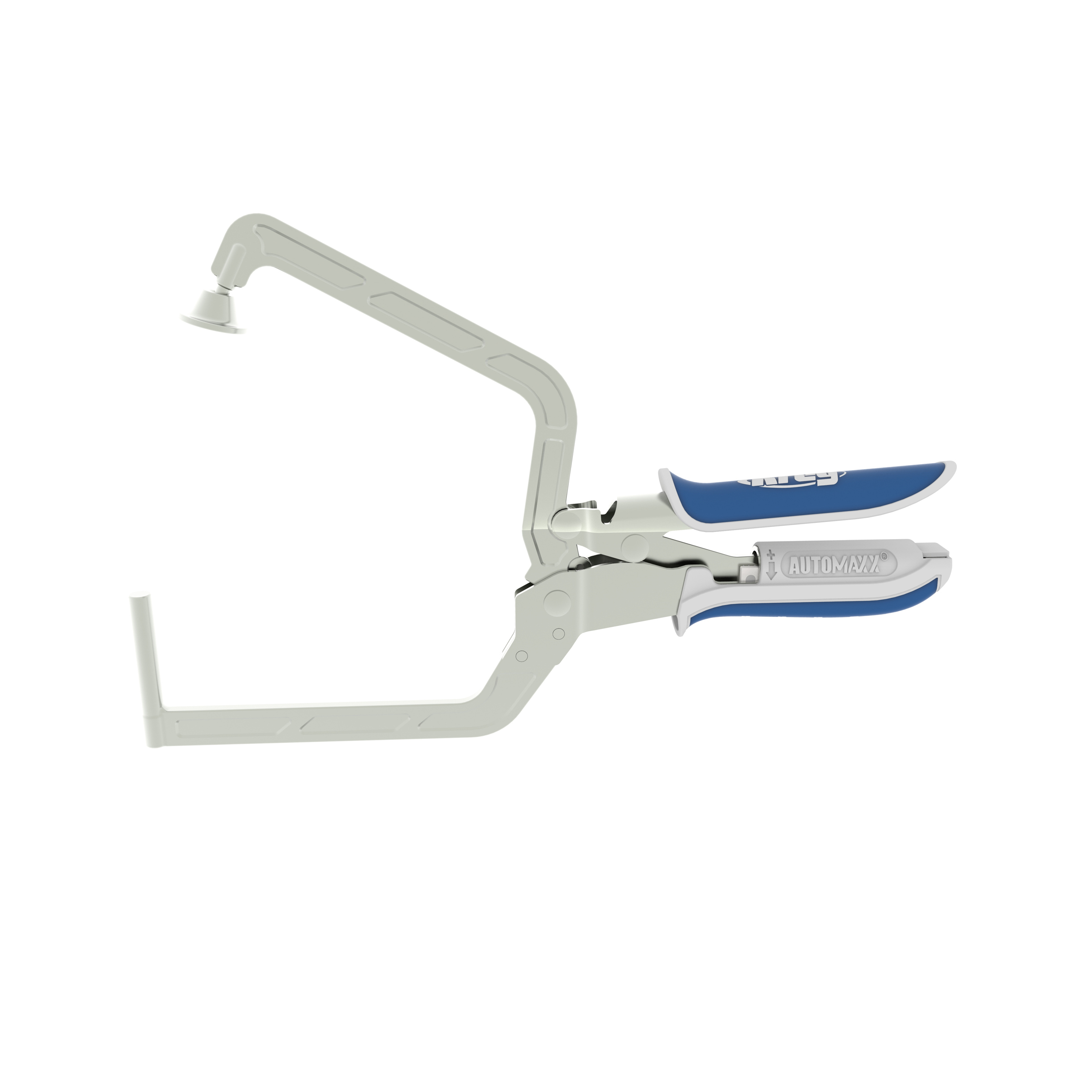

Right Angle Clamp
- Holds pocket-hole joints at 90° during project assembly

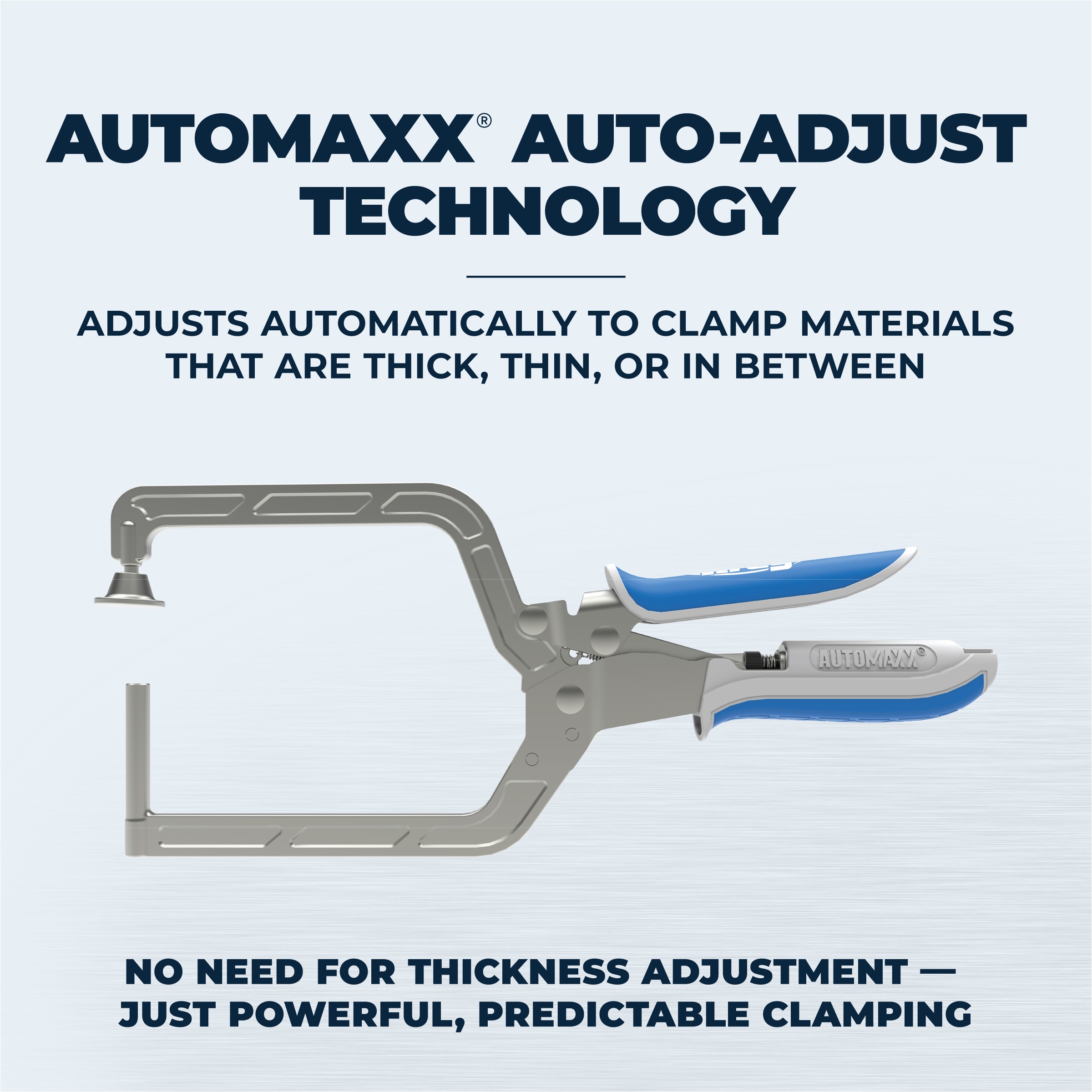

- Automaxx® technology adjusts automatically to material thickness

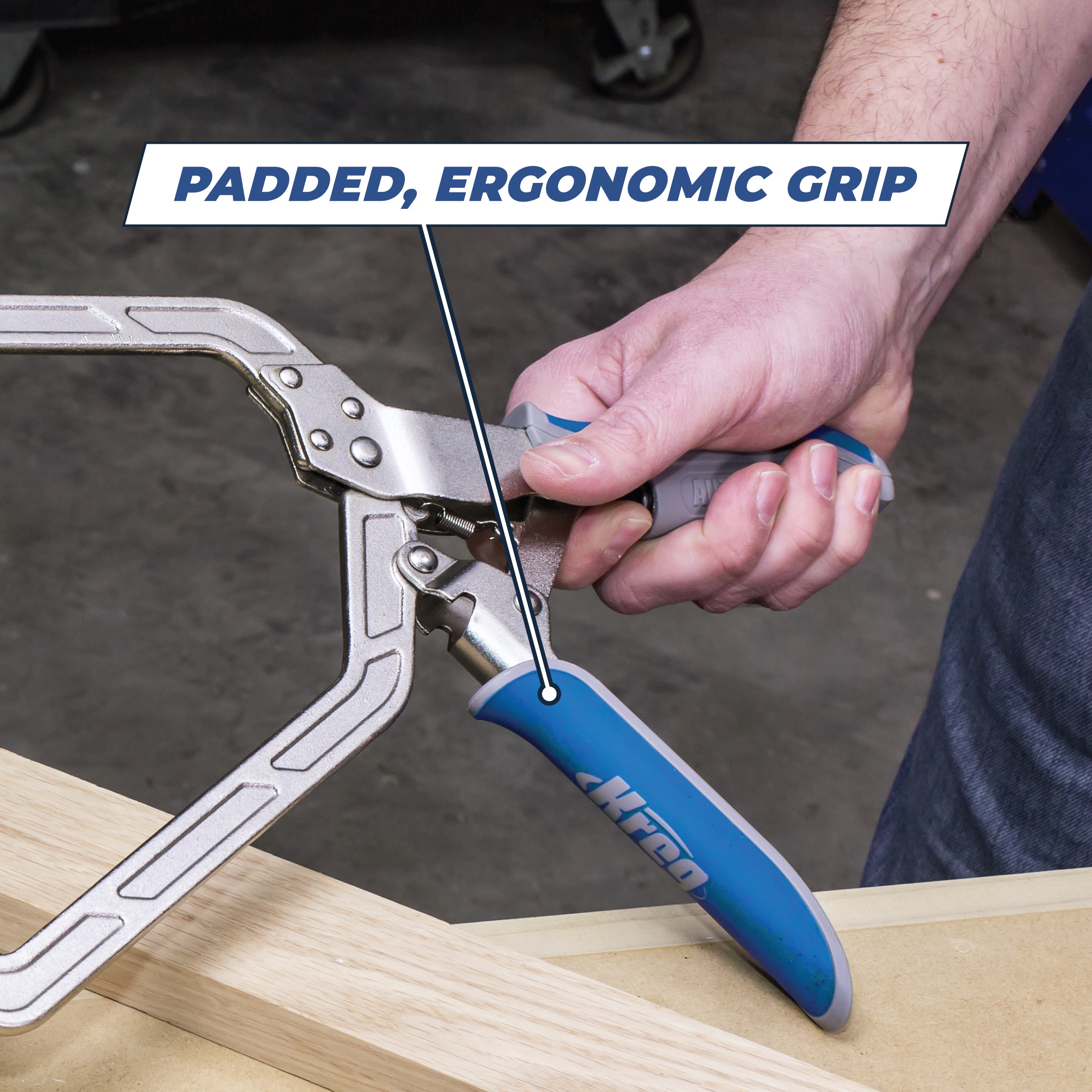

- Contoured grips for added comfort
- Pin fits securely into pocket hole
- Swivel pad holds mating piece

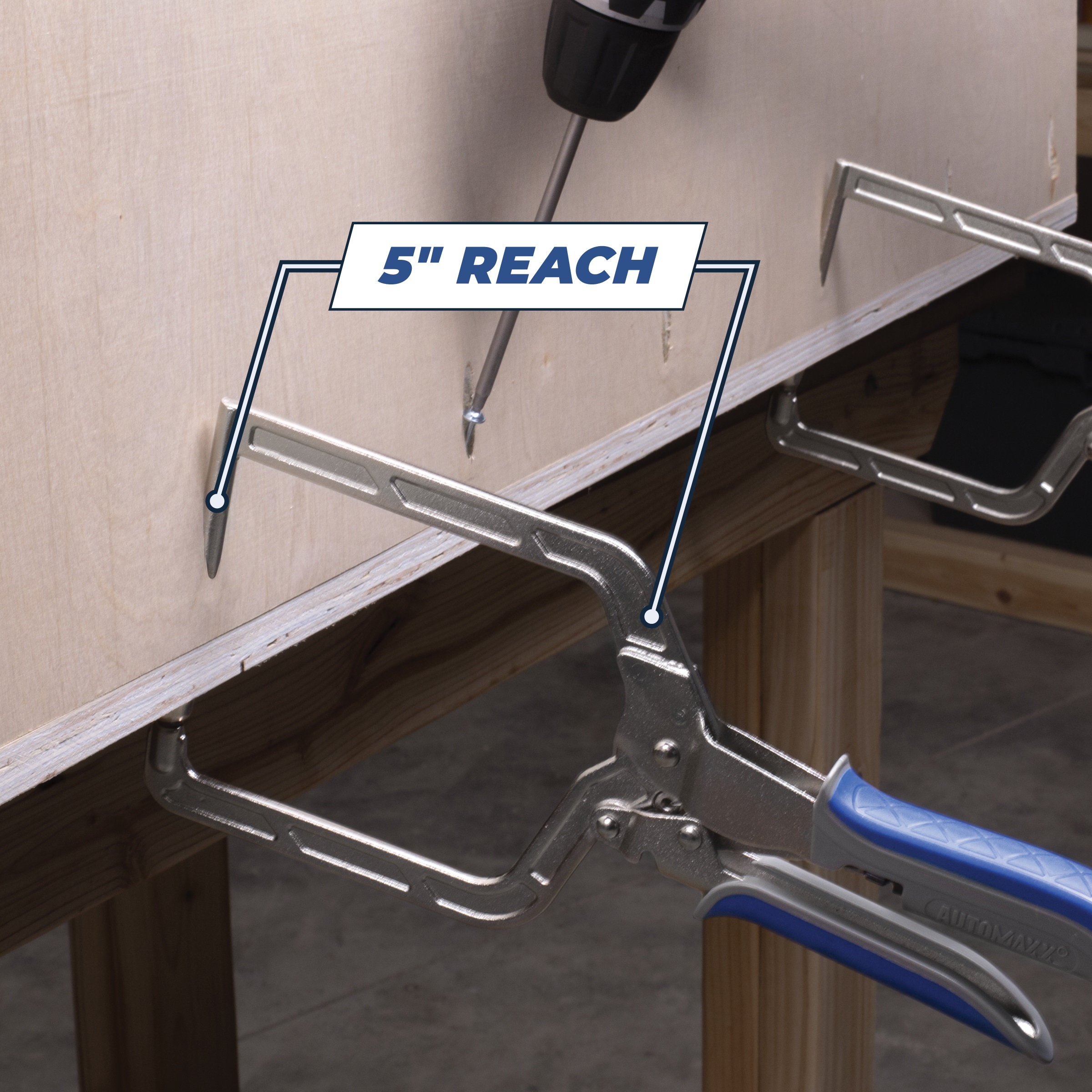

- 5" (127mm) reach

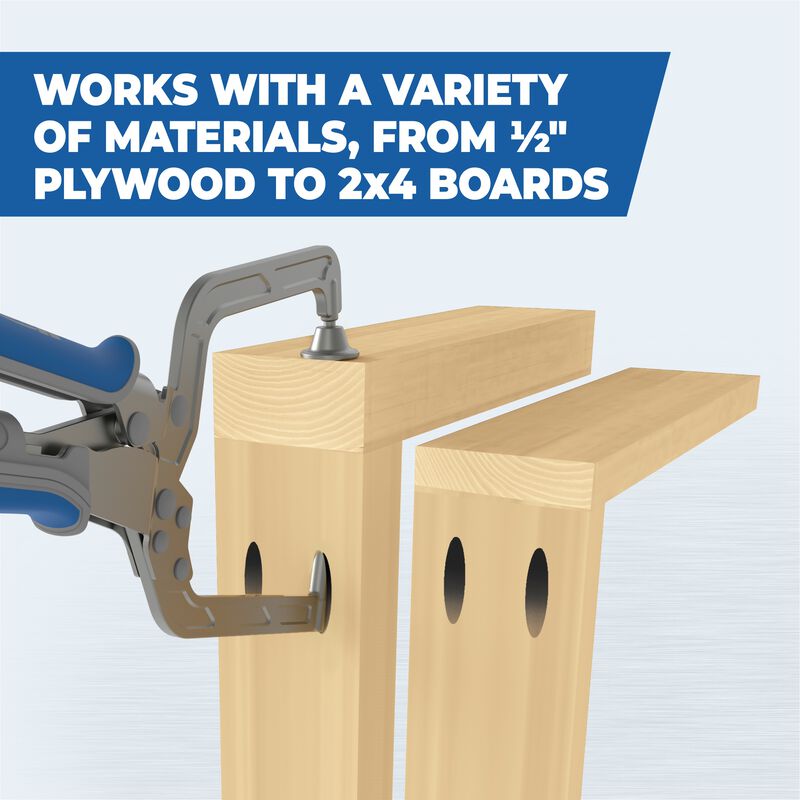

The Right Angle Clamp makes projects with 90° joints faster and easier than ever by giving you the helping hand you need to hold the parts in position as you drive in the screws. Just slip the pin on the Right Angle Clamp into a pocket hole, close the clamp, and it draws the mating pieces tightly together. The swiveling clamp pad opposite the pin grabs the mating piece securely. Thanks to Automaxx® auto-adjust technology, the Right Angle Clamp adjusts to match the material automatically with a simple squeeze of the handles. This handy clamp works with all kinds of materials, from thin 1/2" plywood to thick 2x4 boards.

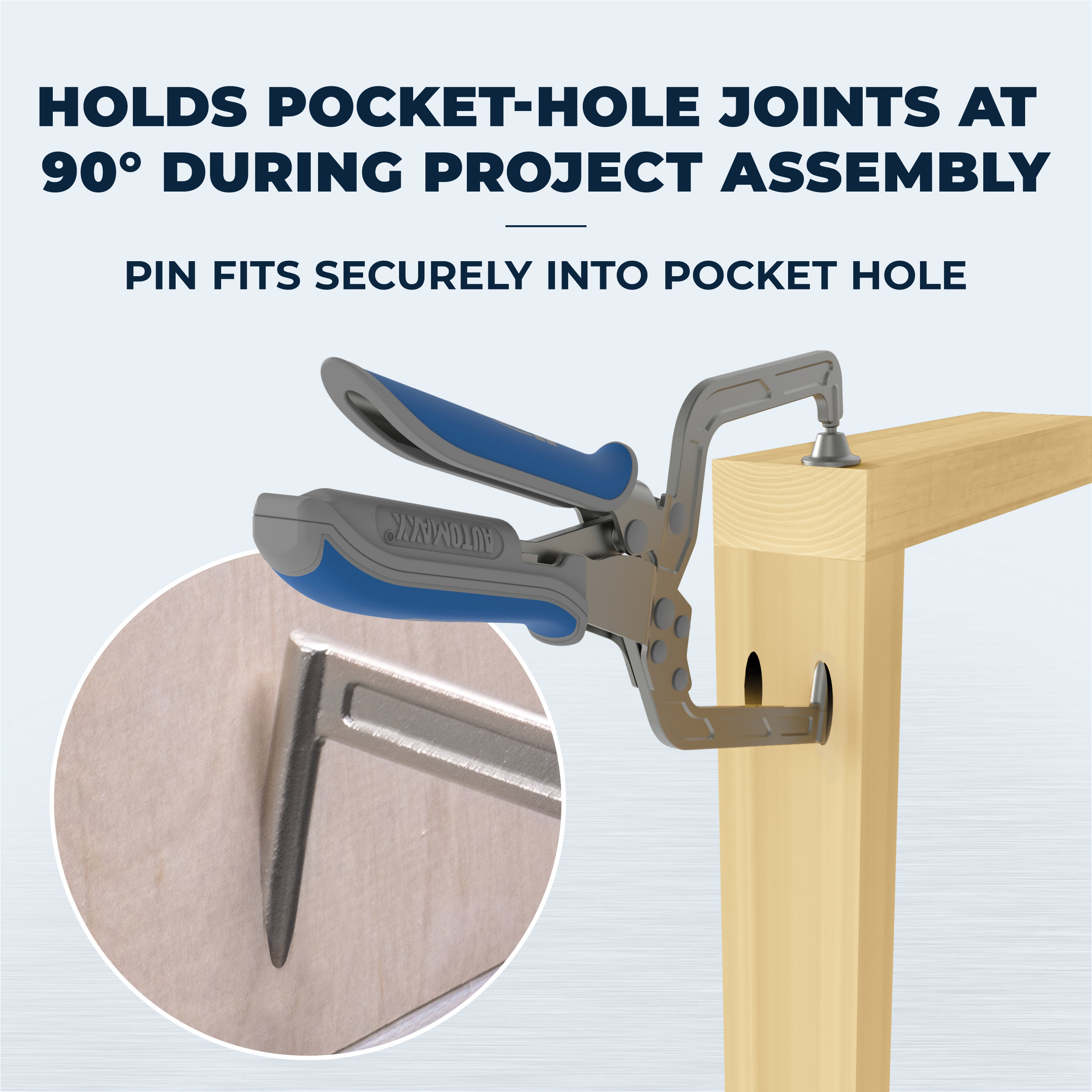

Clamp Using the Pocket Hole
The steel pin on this clamp is shaped to fit snugly into a pocket hole, securely anchoring one workpiece against the other for easy assembly. Just drive a screw into an adjacent pocket hole while the Right Angle Clamp holds the piece steady for you.

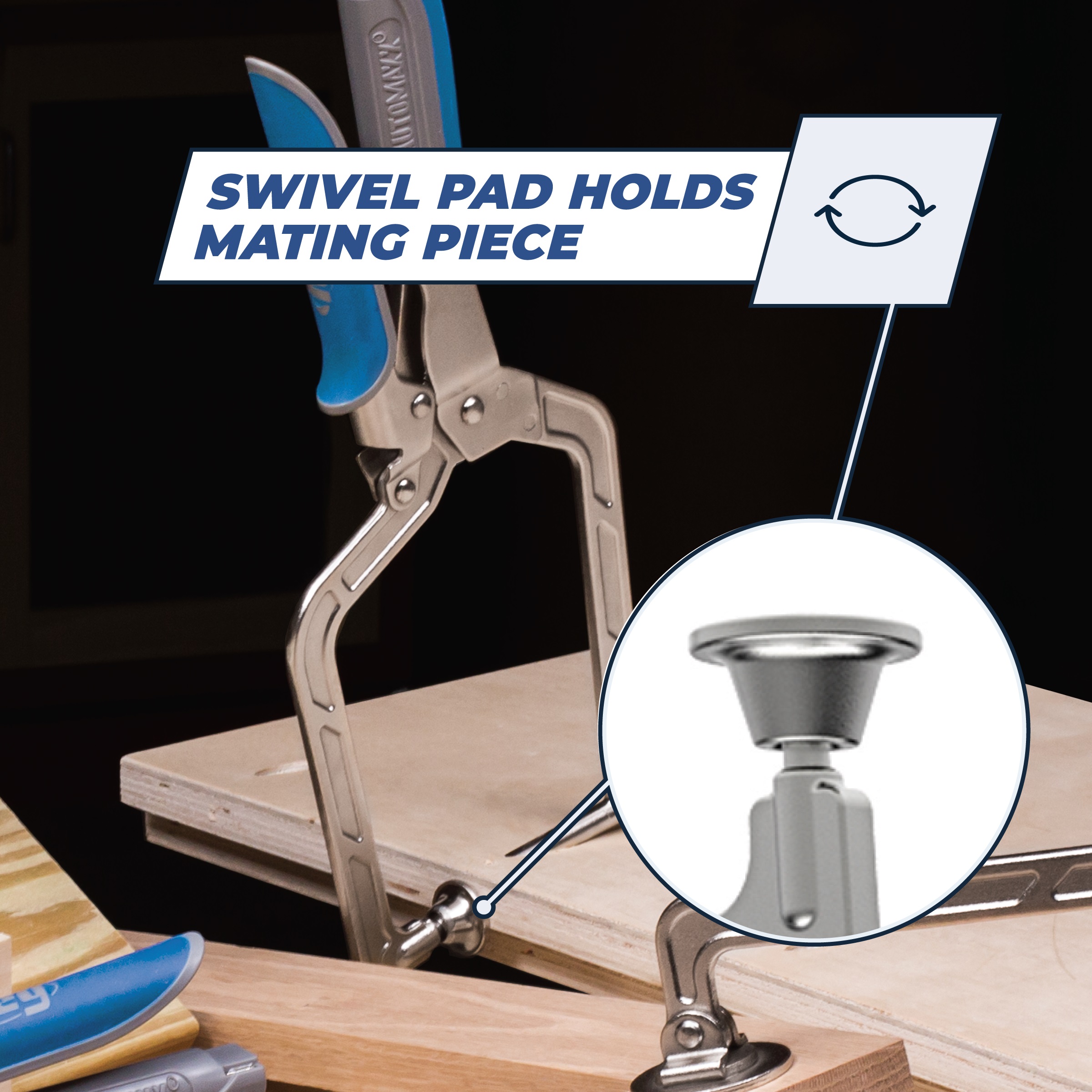

Swivel Pad for Solid Clamping
The arm opposite the pin features a pad that swivels to fit tight against your material, so you can count on solid clamping without a chance of the joint shifting.
Whether you’re joining two thin drawer sides for a cabinet, or thicker materials to frame an outdoor project, the Right Angle Clamp opens wide to get the job done.

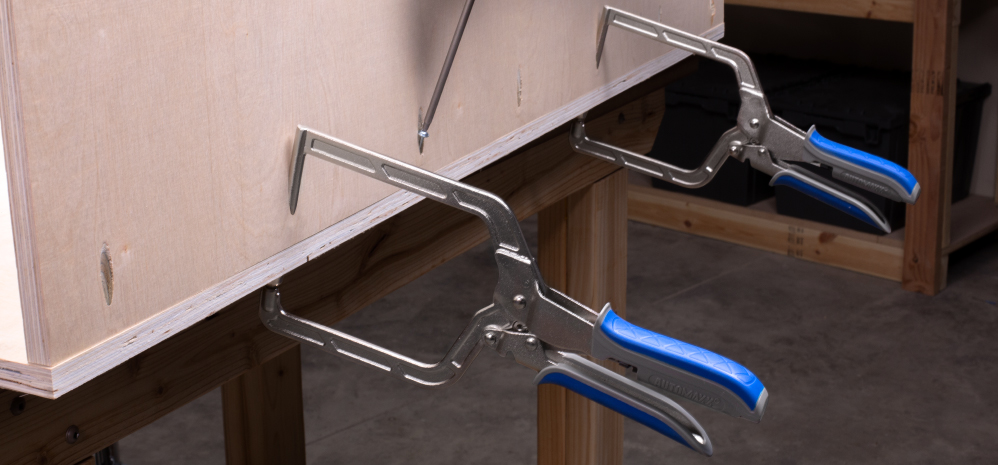

Use One Clamp, or Use Two
Many woodworkers find it handy to use two Right Angle Clamps when assembling large workpieces. Place a clamp on each end to hold the wood while you drive screws in the remaining pocket holes.
We take customer
If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.
|features||Automaxx® auto-adjust technology|
|construction||Steel with padded grips|
|adjustability||Adjustable clamping pressure|
Your question will appear on the site once someone answers it.
- 5.0 star rating
- 4.0 star rating
- 3.0 star rating
- 2.0 star rating
- 1.0 star rating
AKES A DIFFICULT PROCESS SIMPLE
It was a bit unwieldy but it functioned exactly as promoted and how I was hoping it would.
No regrets with this purchase.
Remove the clamp from the packaging and test the clamp pressure on your material.

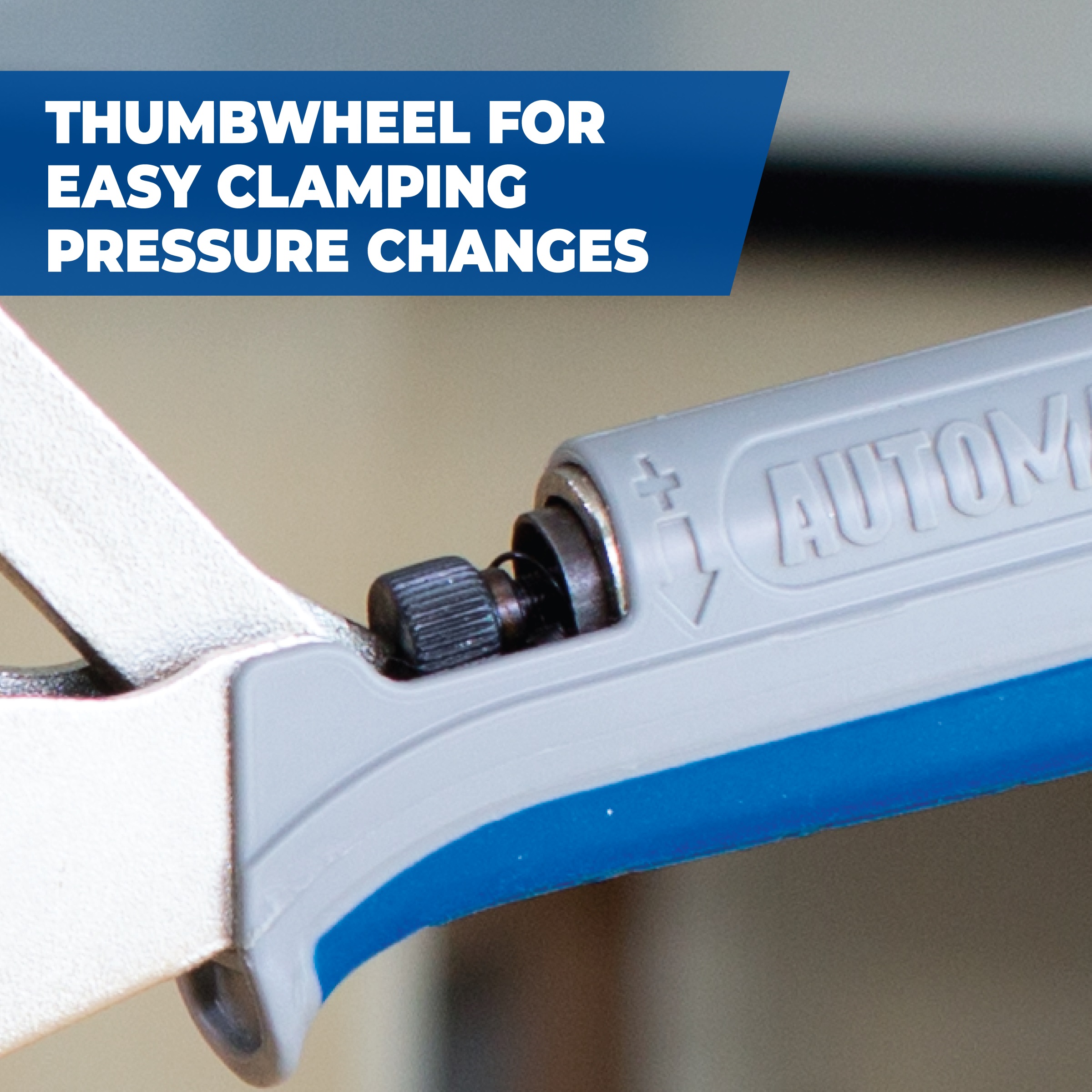

If you are happy with the pressure of the clamp, no further adjustment is needed. If you would like more/less clamping pressure, simply open the clamp handles fully. Once open, turn set screw one-half turn (to the positive for more pressure, to the negative for less pressure) to adjust. Try out the clamp on the same material and repeat these steps until the desired pressure is found.
Once you are happy with the clamping pressure, the clamp will maintain this same pressure until you change the setting again. If you would like to increase or decrease clamping pressure, follow the previous steps until the appropriate pressure is met.
To ensure consistent pressure, open the clamp handles completely each time you move the clamp. This allows the Kreg Automaxx system to reset for the correct clamping pressure.
Following these steps will ensure that these clamps will perform their best for all your project-building needs. If you have any additional questions please contact our Support Team at email@example.com.
