Love it!!! Love all kreg
"Love it!!! Love all kreg products that I have"

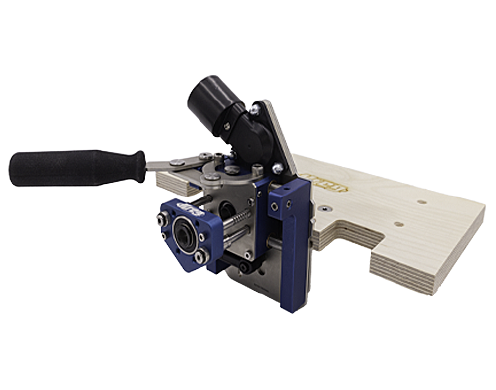

MortiseMate™ Loose Tenon Jig

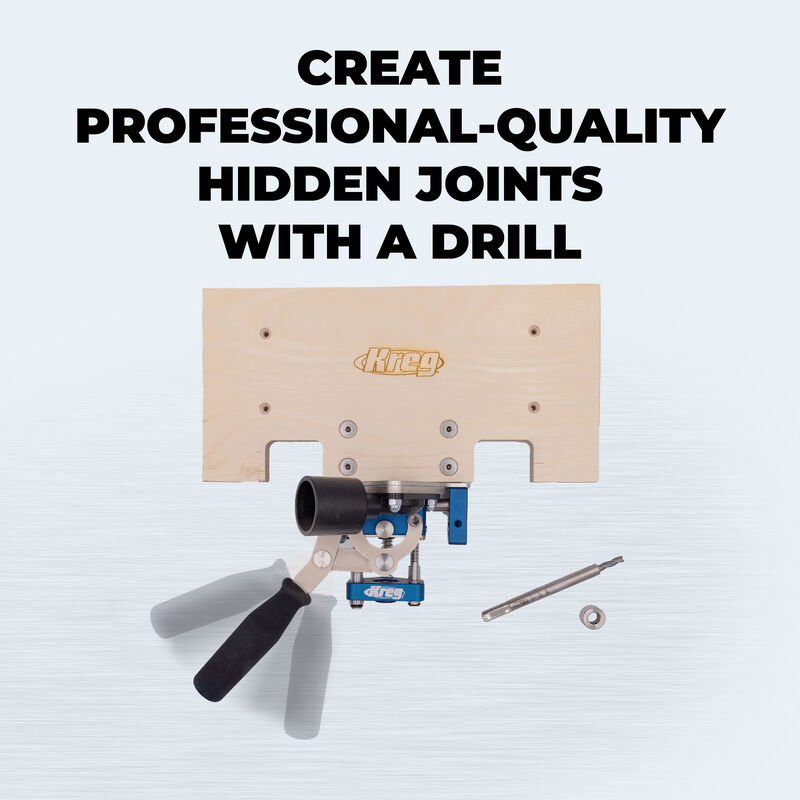

Create professional-quality hidden joints with a drill.
Overall rating: 4.9215684 / 5 from 51 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["instructions","frame","assembly","works","tool","jig","kreg","movement","addition"].
Review highlights
Reviews
Great budget mortise tool
"I purchased this tool for a budget mortise jig. I'm building a bed with 44 rails and wanted them to not have screws in the top and bottom. Once I got going with the set up I was able to get them done in a few hours. Much more work to come, but this was a great start."
does the job

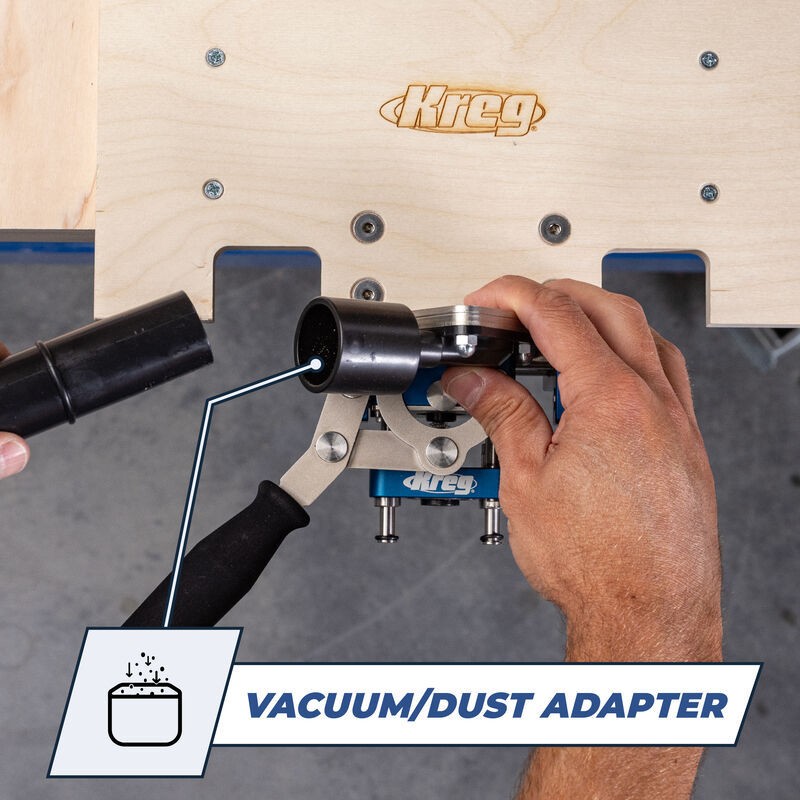

"The MortiseMate works great . I did have some issues. The metal face wasn't perpendicular to the wooden base. I found that putting a clamp on the work piece and pulling it into the MortiseMate helped. I would suggest on the next version they thicken the side walls (where the adjustment is made) to accommodate a clamp head. The vacuum port got in my way when doing thick pieces, they should twist it out of the plane of the back. It would be nice to have a way to easily see when the mortise is finished."
Mortise Mate works great. Completely
"Mortise Mate works great. Completely happy with purchase!"
These is the first using
"These is the first using loose tendons game changer would recommend"
This is a pretty good
"This is a pretty good product. Somewhat limited but does what it should. The 6mm tenons seem to be just a bit loose but do what they are supposed to."
So easy even a cave
"So easy even a cave man can do it."
Great addition to my wood
"Great addition to my wood working. A lot cheaper than the big name bisket jointers. Haven’t used it a lot but I can tell from what little I have used it that it’s an amazing tool."
Awesome product. Easy to use.
"Awesome product. Easy to use."
Simple - Works
"Easy to assemble. Simple concept to understand. Easy set up. However nothing in the manual describes the reset button. You need to press it after each mortise. Had to look through a bunch of videos before I realized there was a reset button. Also, you can adjust the left-right width of the mortise and the depth but not the "up-down" size. Many Kreg tenons are slightly undersized. Vondriska says you ought to be able to pick up both pieces when they are dry-fit together. Generally can't so would like the ability to adjust tighter; shims are a nuisance. Since it moves . 050 inches closer each pass, you need 15 passes for a 3/4 inch deep mortise (8 left, 7 right for example). Keep track of how many you do because hard to tell for sure that the carriage is not moving forward anymore."
Q&A
- Is this compatible with Jessem’s Baltic Birch Workstation for the Pocket Mill Pro? I know the two are both made by Jessem; are they identical?
- No, those will not work together. They are different.
- Can this be used to glue up a table top
- Yes, this can be used to edge join for tabletops.
- Can you do surface tenons that will match up with an edge tenon for right angle joints?? Also do you have a military discount?
- Yes, you sure can. The only thing is the boards will need to be at the edges.
- What width of the tenon. Can you do a like 6inch width.
- 6 mm tenons - 6 mm (H) x 20 mm (W) x 1.5" (L) 8 mm tenons - 8 mm (H) x 22 mm (W) x 1.5" (L) 10 mm tenons -10 mm (H) x 24 mm (W) x 2" (L)
- What is desired RPM for the drill?
- You will want your drill to spin at least 2000 RPMs.
- What is the recommended drill speed (RPM) for each bit?
- You will want your drill to spin at least 2000 RPMs.
- How many tenons do you get for the indicated price?
- The 6mm will have 75. The 8mm will have 50. The 10mm will have 25.
- Do y’all sell the tenons
- We do sell Tenons. Here is the link. https://www.kregtool.com/shop/pocket-hole-joinery/general-joining/mortisemate-loose-tenons/MORTISEMATE-LOOSE-TENONS.html
- Were can the tendons or insets be purchased.
- We do sell Tenons. Here is the link. https://www.kregtool.com/shop/pocket-hole-joinery/general-joining/mortisemate-loose-tenons/MORTISEMATE-LOOSE-TENONS.html
- Can you buy tenons for this?
- We sell the Tenons on our website. https://www.kregtool.com/shop/pocket-hole-joinery/general-joining/mortisemate-loose-tenons/MORTISEMATE-LOOSE-TENONS.html

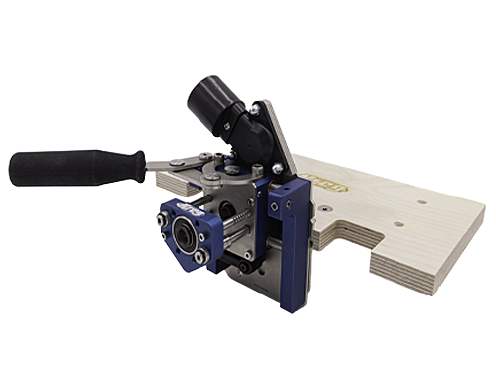

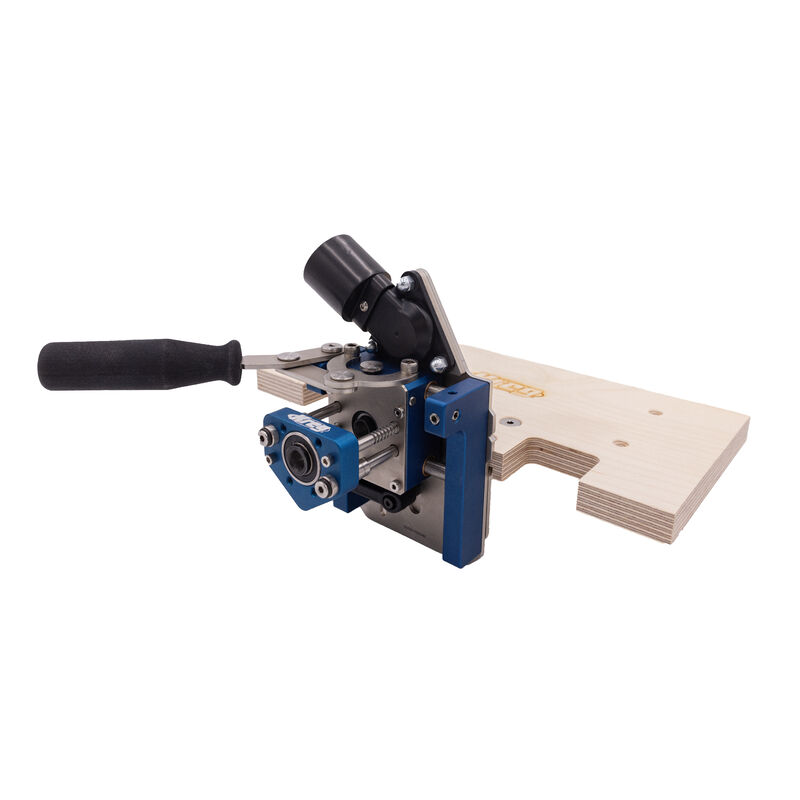

MortiseMate™ Loose Tenon Jig
Availability:
-
In Stock
Best Seller
$299.99
- Highlights
- Cut mortises (loose tenon joinery) with just a drill

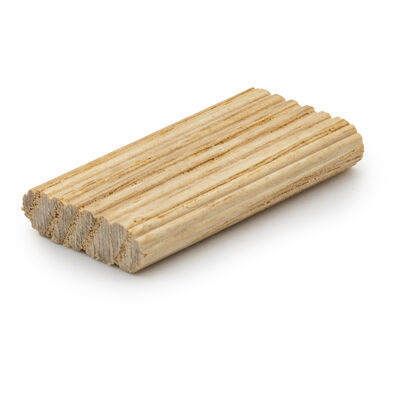

- Tenons available in 6 mm, 8 mm, and 10 mm thicknesses
- Auto-indexing step-down mechanism lowers cutter tip in 1/16" increments

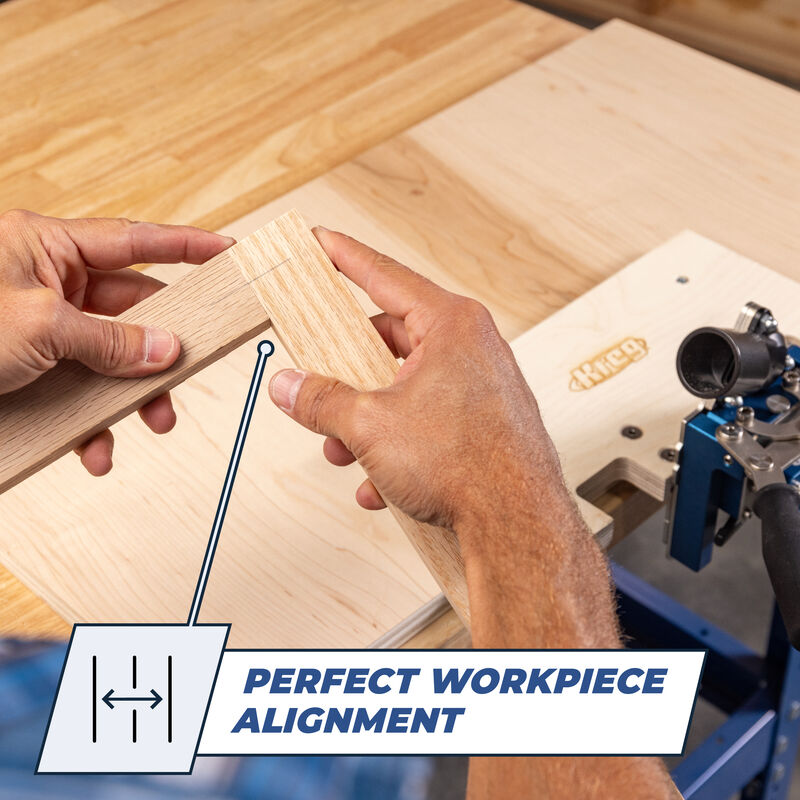

- Quick setup for panels and 90-degree joints
- Micro adjustment screws allow for customizable mortise width
- Integrated mini work surface for quick and secure workpiece clamping
- Precise, consistent mortise depth control
- Fits workpieces 1/2" to 1 1/2" thick

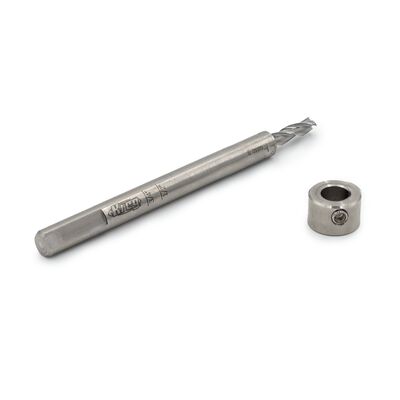

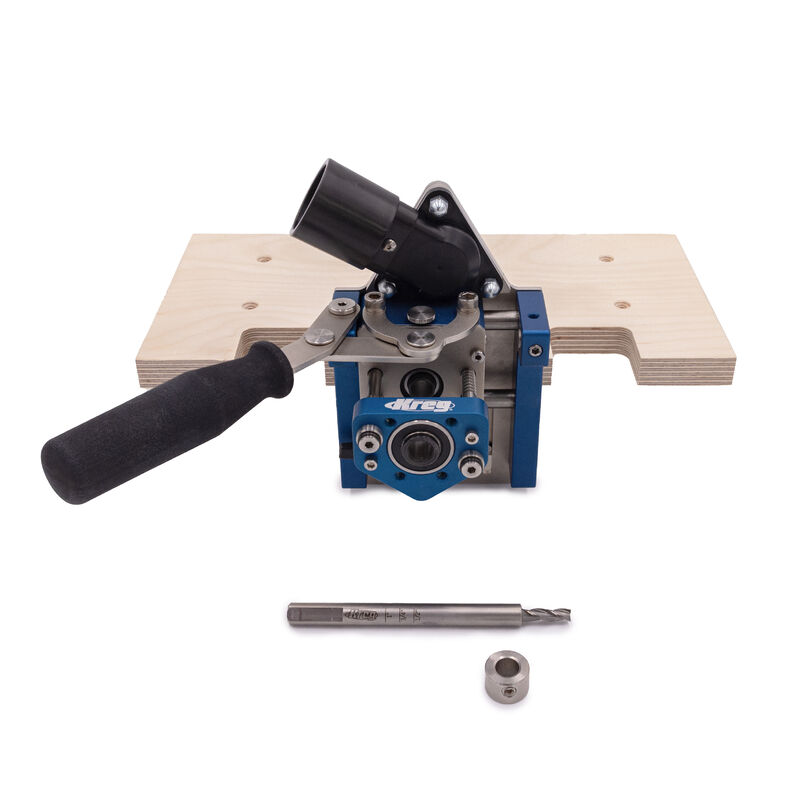

- Carbide-tipped 6 mm Mortising Cutter included
- Laser-etched markings on the cutter make it quick and easy to position the stop collar for commonly used mortise depths, with adjustability for custom tenon fitting
- 8 mm and 10 mm cutters also available
Show More
You Might Also Like
Joinery Made Simple

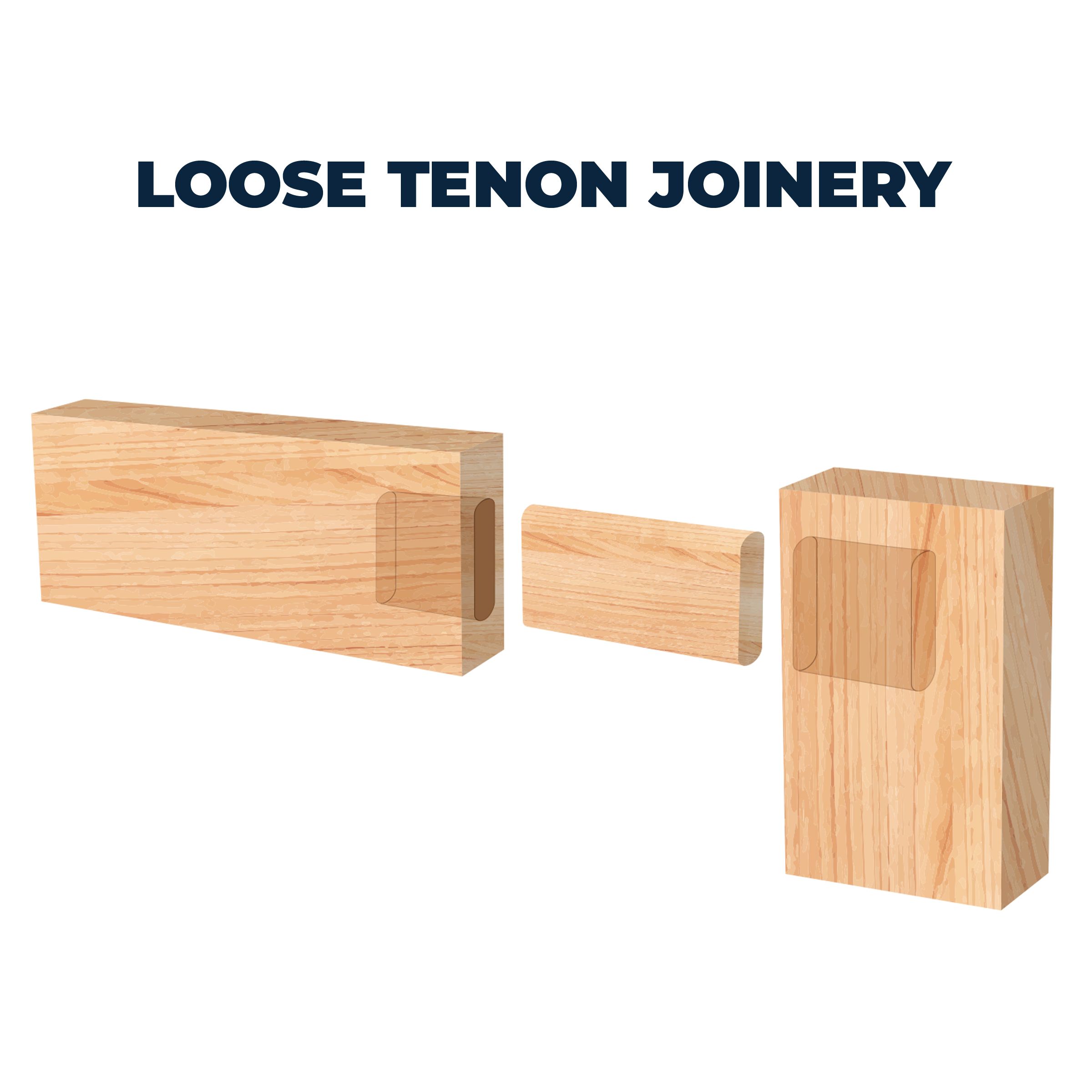

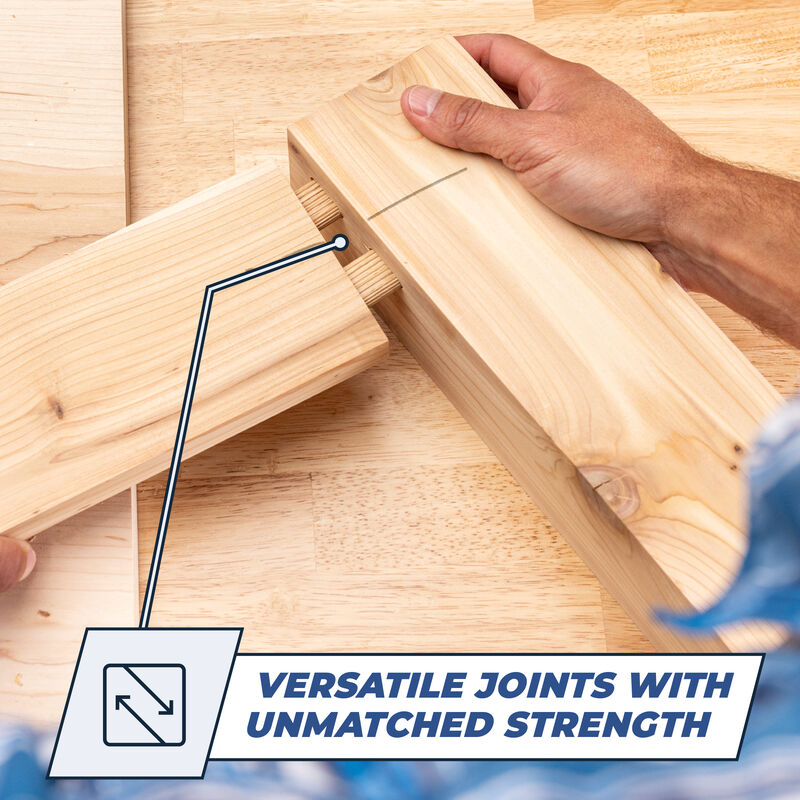

Loose tenon joinery offers unmatched strength and stability with minimal setup.
Effortless Precision
Auto-indexing step-down and micro adjustments ensure consistent, repeatable results.
Hassle-Free Operation
Approachable, intuitive, and easy-to-use.
Craftsmanship Redefined
Achieve professional-quality results with a tool designed for precision and durability.
Unique

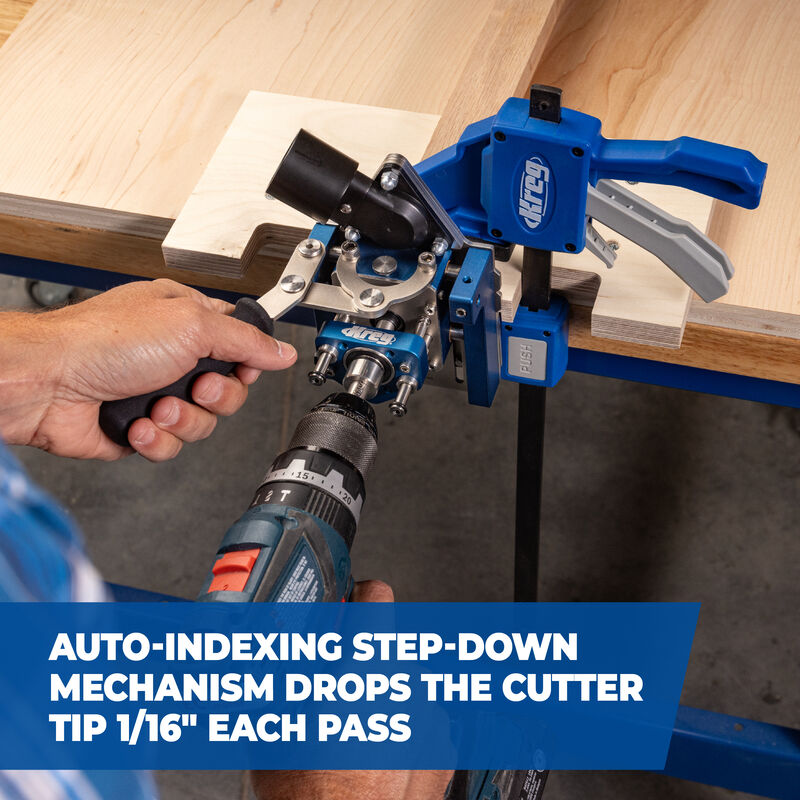

Exclusive auto step-down feature drops cutter tip 1/16" with each pass for clean, precise mortises.
Approachable
Easily create loose tenon joints with unmatched strength.
Versatile
Designed for use with most corded and cordless drills.
Adjustable

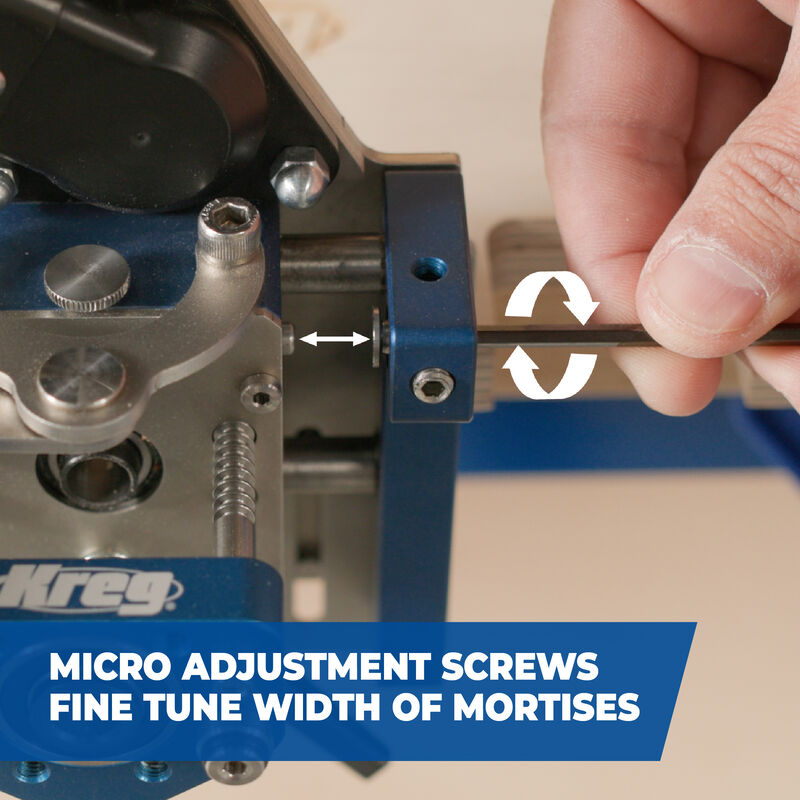

Micro adjustment screws allow fine tuning of mortise width for custom tenon fit.
Secure
Integrated mini work surface for secure workpiece clamping.
Efficient
Included carbide-tipped 6 mm Mortising Cutter creates clean, finished mortises. Available 8 mm and 10 mm cutters sold separately.
