Overall rating: 4.7727275 / 5 from 22 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["replacement","quality","hinges","holes"].

Review highlights

Reviews

Quick, professional and courteous response

"Quick, professional and courteous response to my call and order response. I had to replace a jig bit that I had basically worn out. Over the years I have dealt with a number of companied in the process of ordering variou construction materials. It has always been a true pleasure to call Kreg and have a live person respond. “Very” few companies have maintained their courteous. professional amd intelligent manner in which they respond to customers. I have a number of Kreg products and have benefited from their engineering research that is put into all of the various tools, jigs, etc. I have heard similar view from colleagues regarding their reactions to their use of Kreg products’ use and reliability of built products."

— John B. (5/5)

Very solid and easy to

"Very solid and easy to use at a very fair price"

— Mike G. (5/5)

Works great, easy to use.

"Works great, easy to use."

— Ronald D. (5/5)

Works great!

"Since standard 35mm bits are too thin in the shank, this is the bit you need for a replacement. Works great!"

— MJ P. (5/5)

Cut's smooth, perfect for soft

"Cut's smooth, perfect for soft close hinges."

— Larry P. (5/5)

I have not been able

"I have not been able to use the concealed hinge jig yet, but I am looking forward to using it soon. I have been having real troulble aligning conventional cabinet hinges, so I believe that the concealed hinges will be better, particularly using this jig."

— John H. (5/5)

35mm Concealed Hinge Bit

"The perfect mate for the template. Working together, they make properly drilling holes a snap."

— Danny S. (5/5)

This is an exact replacement for the bit which came...

"This is an exact replacement for the bit which came with my Kreg concealed hinge jig. It works perfectly."

— Hans (5/5)

Although not the best quality bit, it was adequate for...

"Although not the best quality bit, it was adequate for what I needed and the price reflected that it would be an average quality bit. If you want a higher quality you should expect to pay more."

— Impk (4/5)

Worked very well

"Worked very well"

— Jimmy (5/5)

Q&A

I need to bore a 5/16" deep hole (35mm diameter) for a hinge cup made for thin doors. Do you make replacement bits (for the concealed hinge jig) with various drilling depths?: We only have the one style bit that will drill roughly 1/2" deep. You could put a washer under the stop collar to make the bit not drill as deep.
Will this bit fit Rockler Jig-it concealed hinge jig?: We have only tested this bit with our Hinge Jig.
Can this bit be used in a router?: This bit has only been tested with using a standard drill.

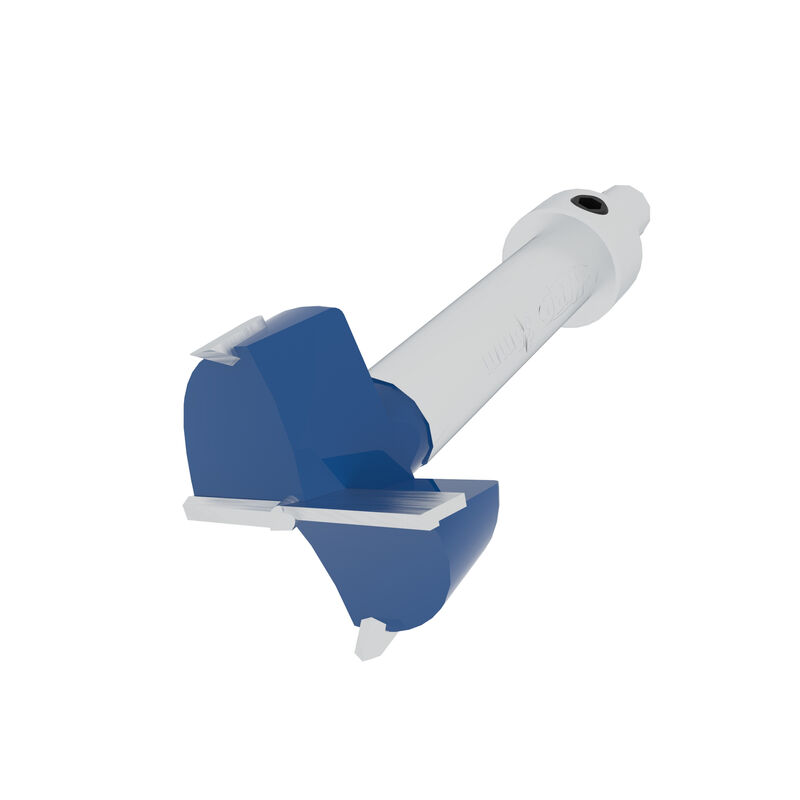

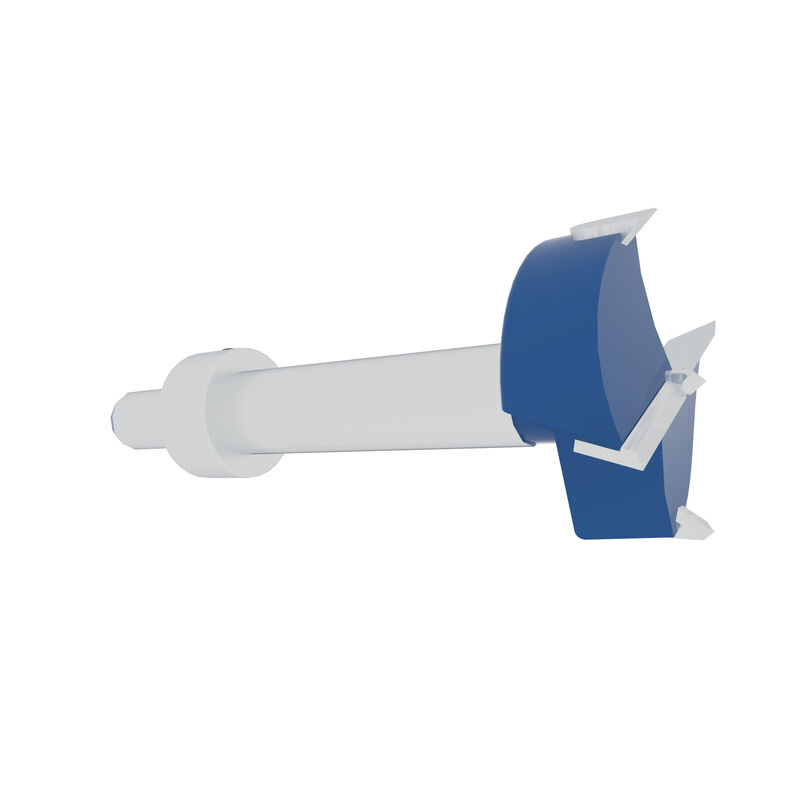

35mm Concealed Hinge Bit

Name: 35mm Concealed Hinge Bit
Brand: Kreg Tool
SKU: KHI-BIT
Price: 19.99 USD
Availability: InStock

Item#: KHI-BIT

35mm Concealed Hinge Bit

Item#: KHI-BIT

Availability:

In Stock

$19.99

Quantity

Highlights

Works with all 35mm concealed hinges
Shank fits perfectly in Concealed Hinge Jig drill guide
Shoulder ensures accurate stop-collar positioning (stop collar sold separately with Concealed Hinge Jig)
Spurs create clean hole edges without tearout
Large carbide cutters bore a flat, smooth hole
