Precision Router Table System

Item#: PRS1045
Loading ratings...

Precision Router Table System

Item#: PRS1045
Loading ratings...
Availability:
  • Out Of Stock
$549.97
$549.97
PayPal Credit

Buy now. Pay over time.

Learn More
  • Multipurpose, self-squaring router table fence system
  • High-performance table top with precision insert-plate system
  • Heavy-duty, customizable, easily-adjustable steel stand

Product Details

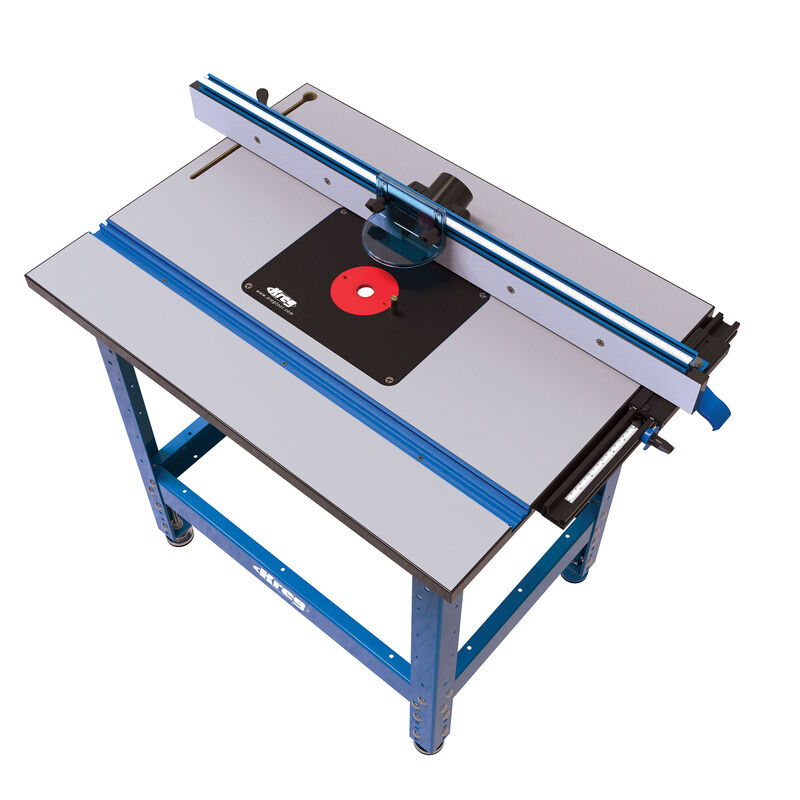

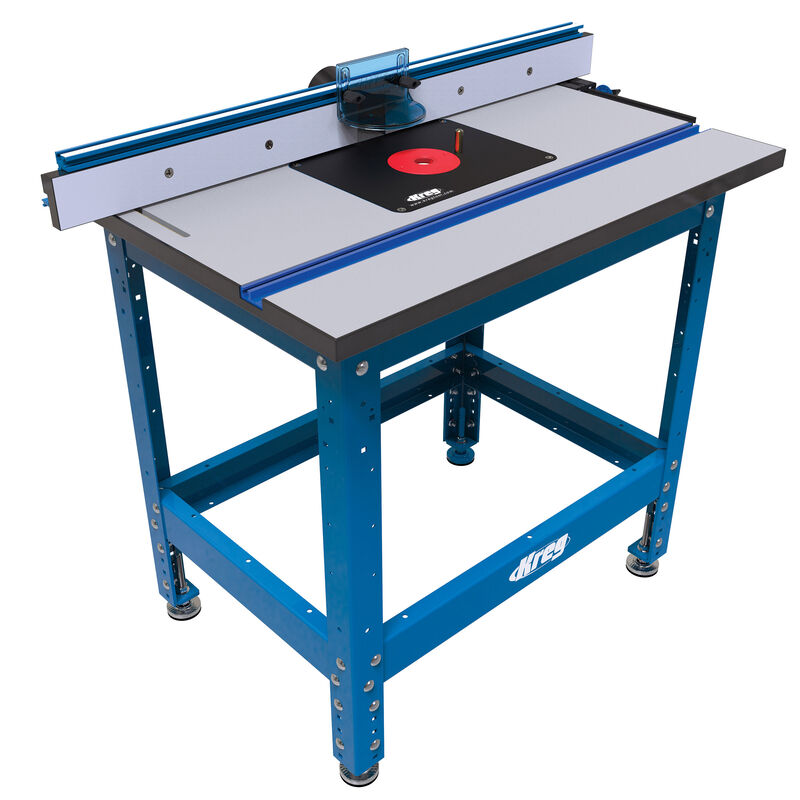

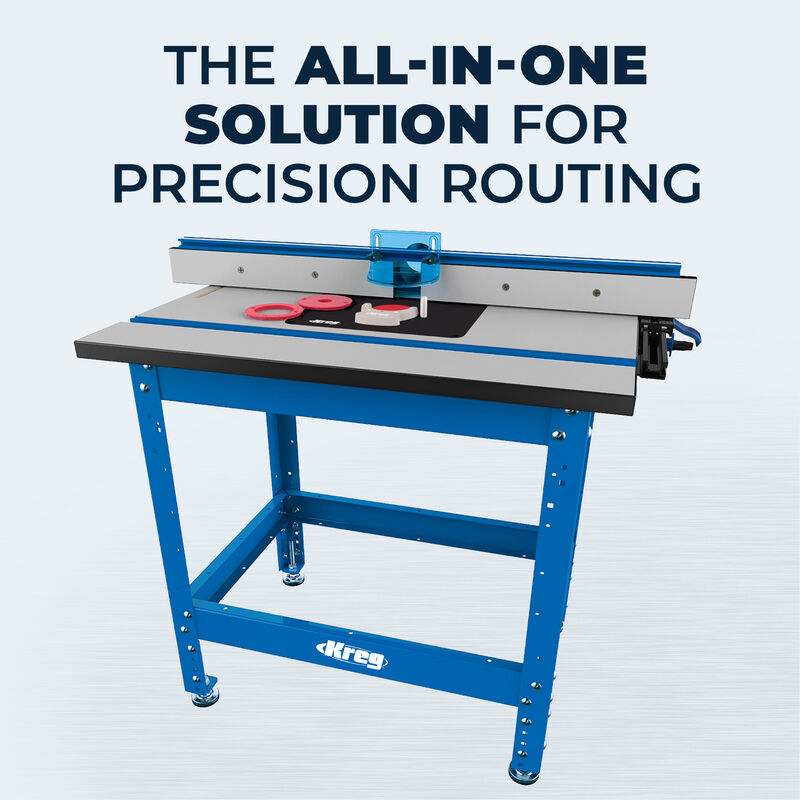

The all-in-one solution for precision routing

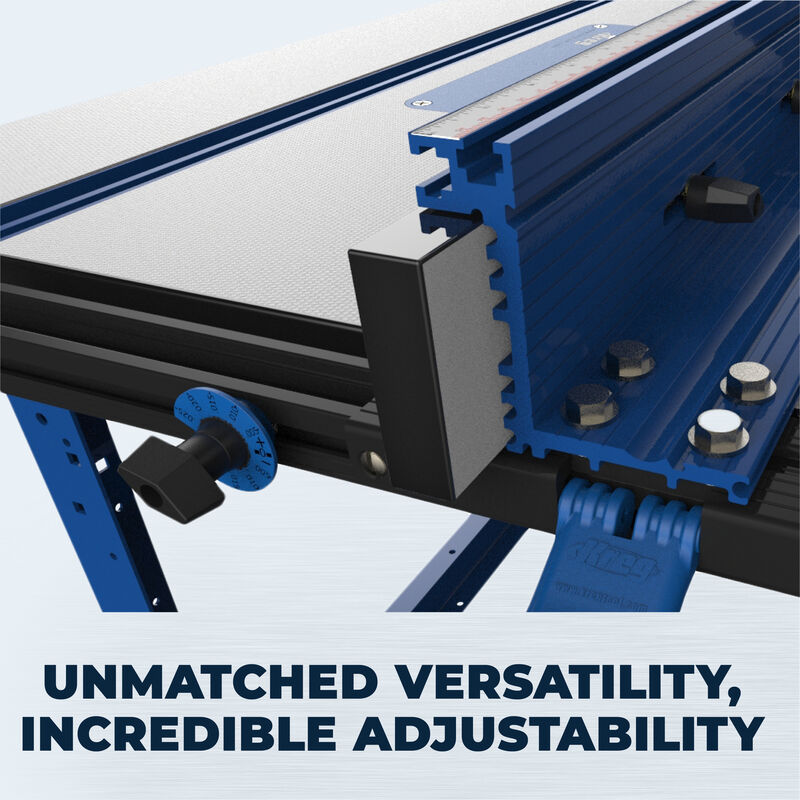

Unmatched versatility, incredible adjustability
The Kreg Precision Router Table System combines unmatched versatility with incredible adjustability and ease of setup to take your woodworking projects to the next level. This powerful system offers a large, durable table top, a one-of-a-kind T-square style fence, and a durable steel stand that work together to create a router table that meets all of your precision-routing needs.

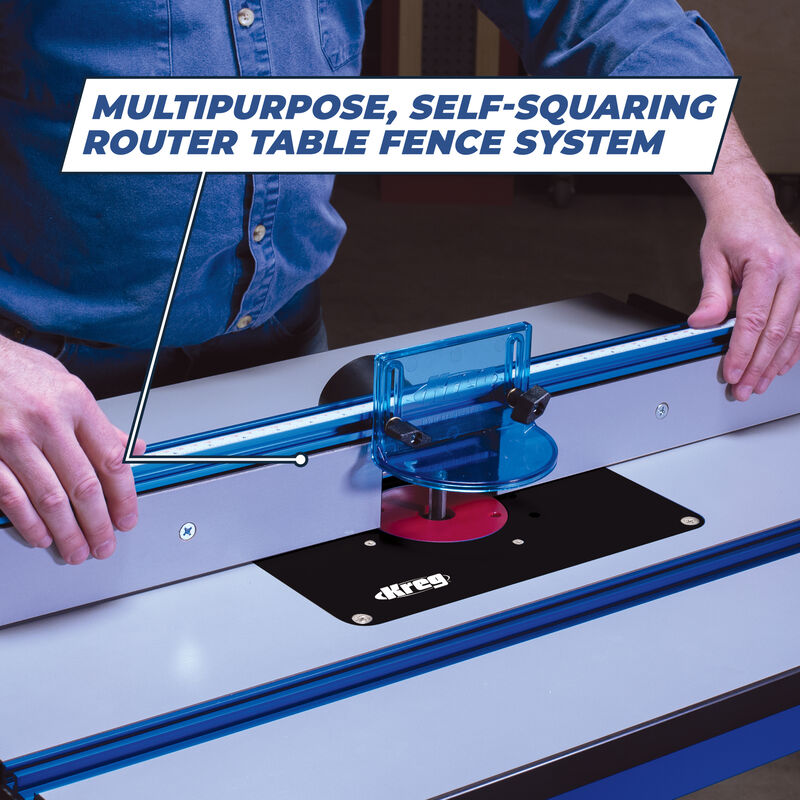

Multipurpose, self-squaring router table fence system

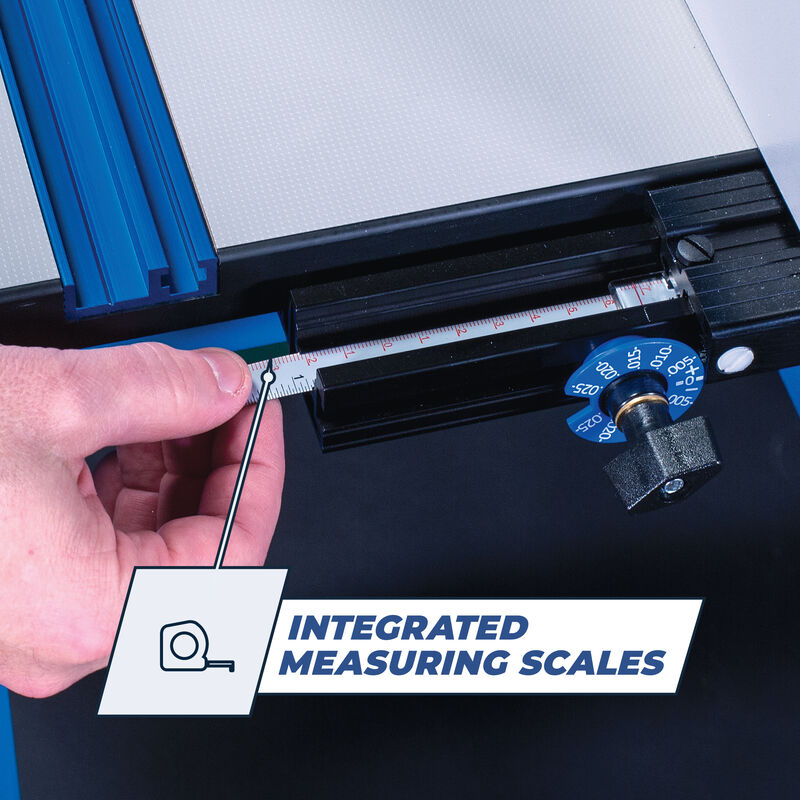

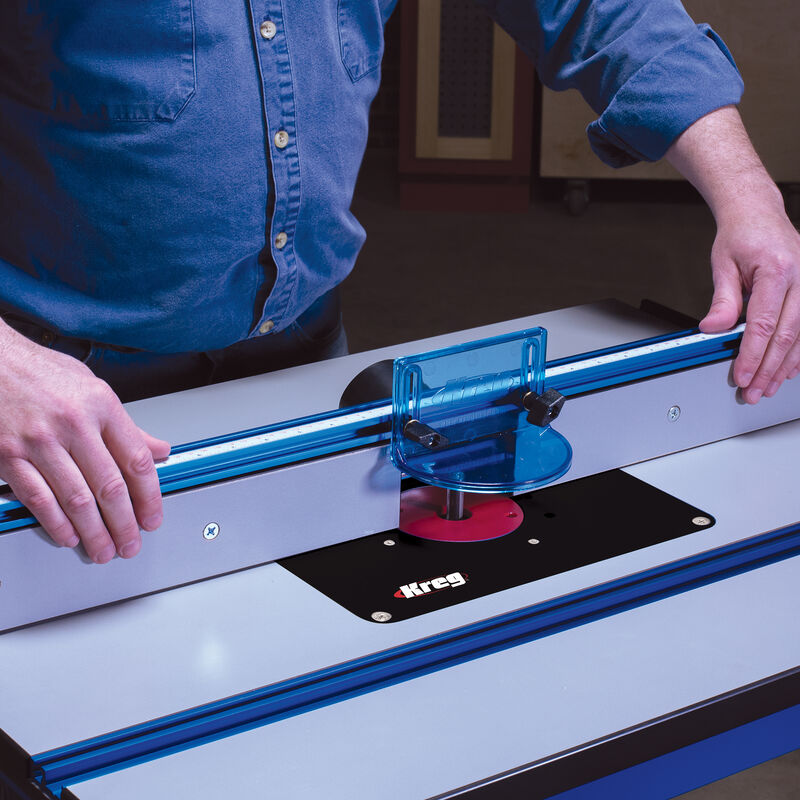

At the heart of the system is the Kreg's Precision Router Table Fence. This innovative, anodized-aluminum fence features a table saw-style T-Square adjustment system that ensures the fence will always stay parallel to the miter-gauge slot. The fence adjusts easily with just one hand and locks firmly in place with dual locks: a large paddle lock on the infeed end, and a quarter-turn lock on the outfeed end that prevents fence deflection. To ensure exact positioning, the fence features a measuring scale that allows you to position the fence and make adjustments based on the bit you are using. An included micro-adjust wheel makes setups simple to ensure precision.

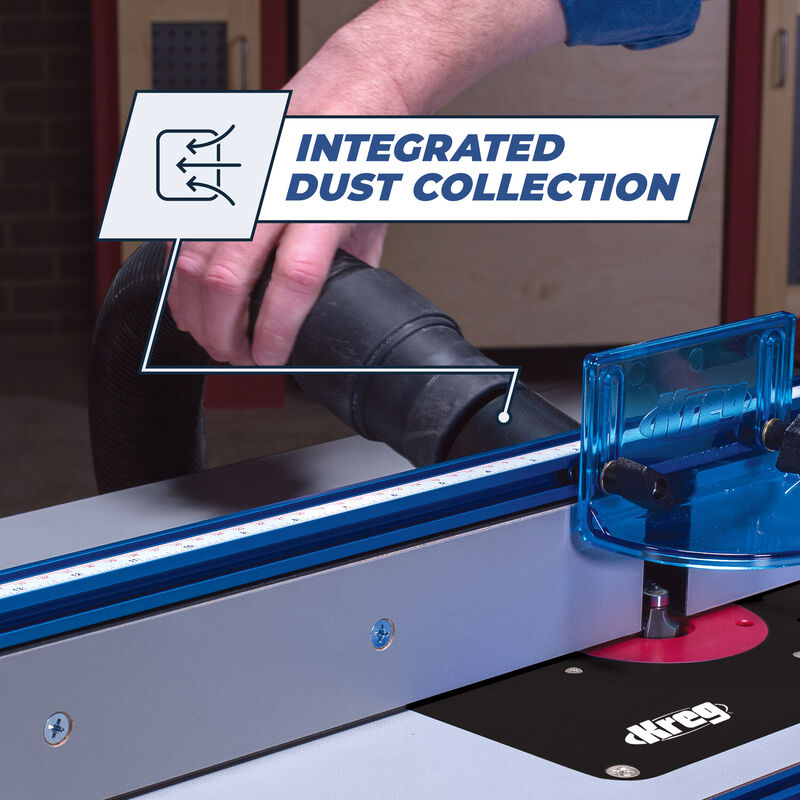

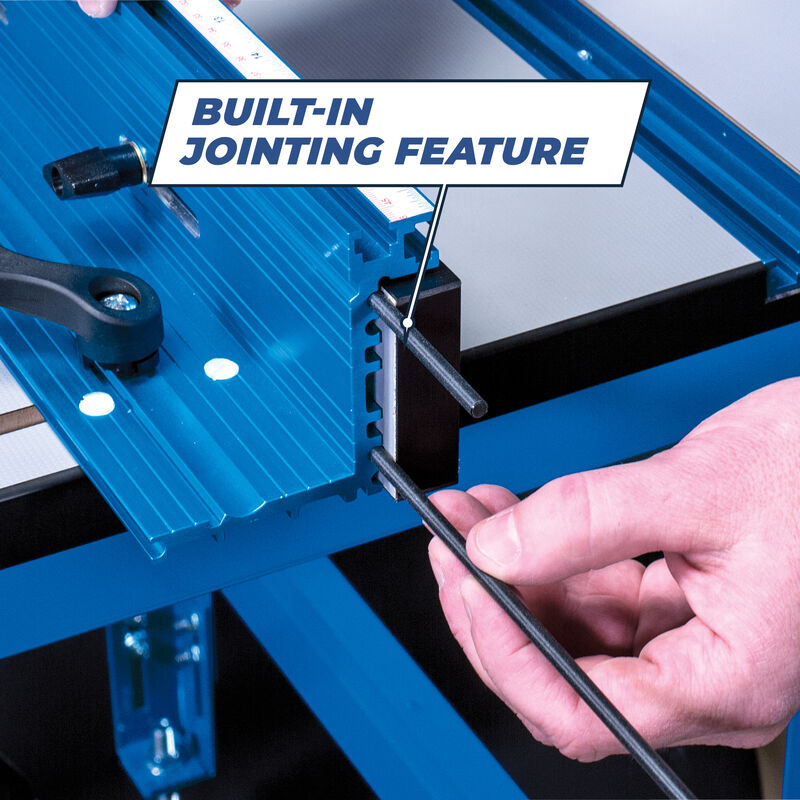

Built-in dust collection and jointing feature

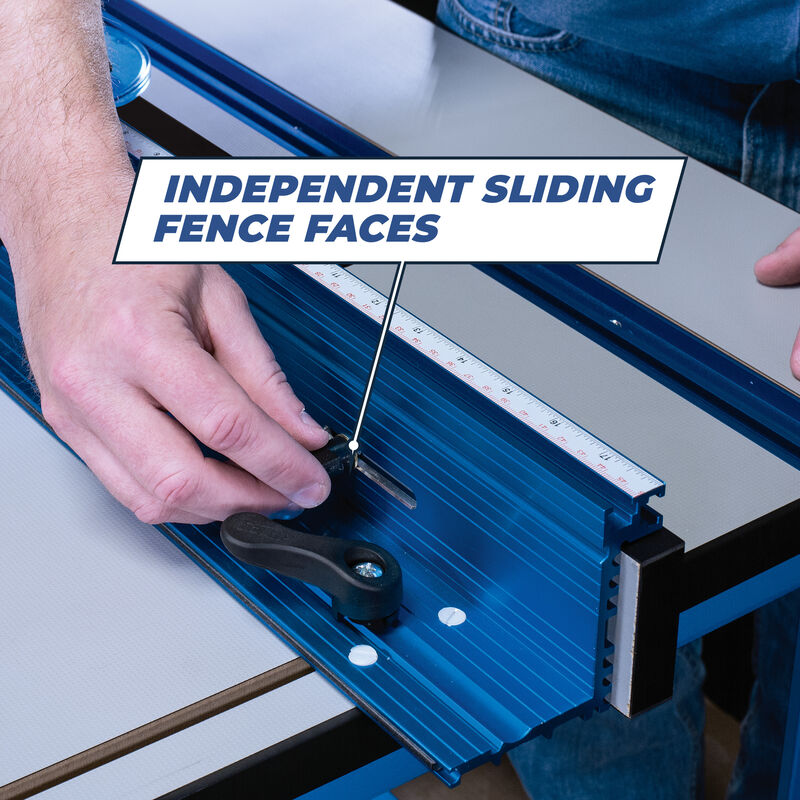

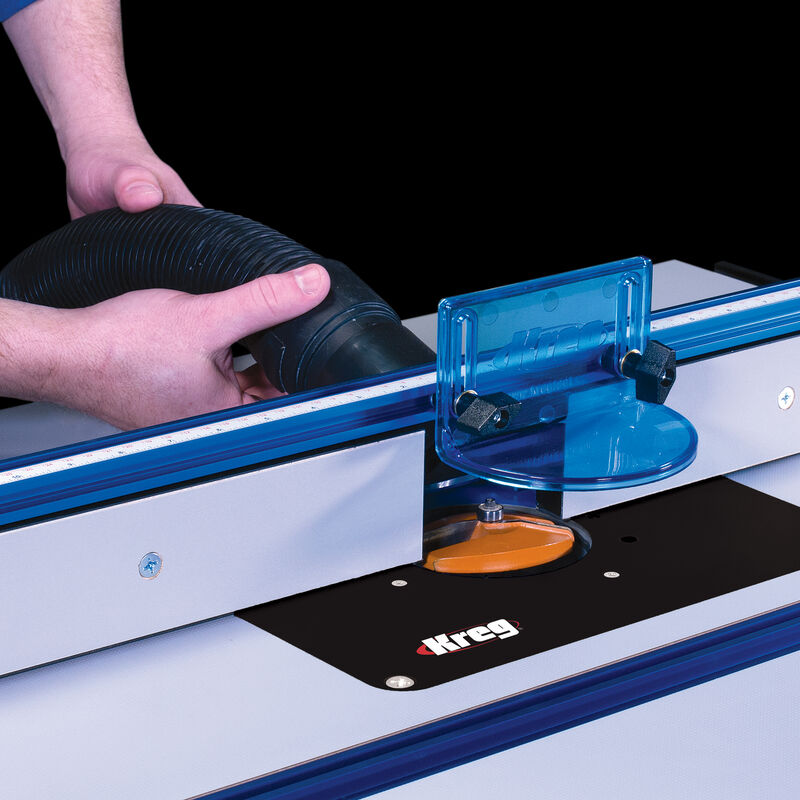

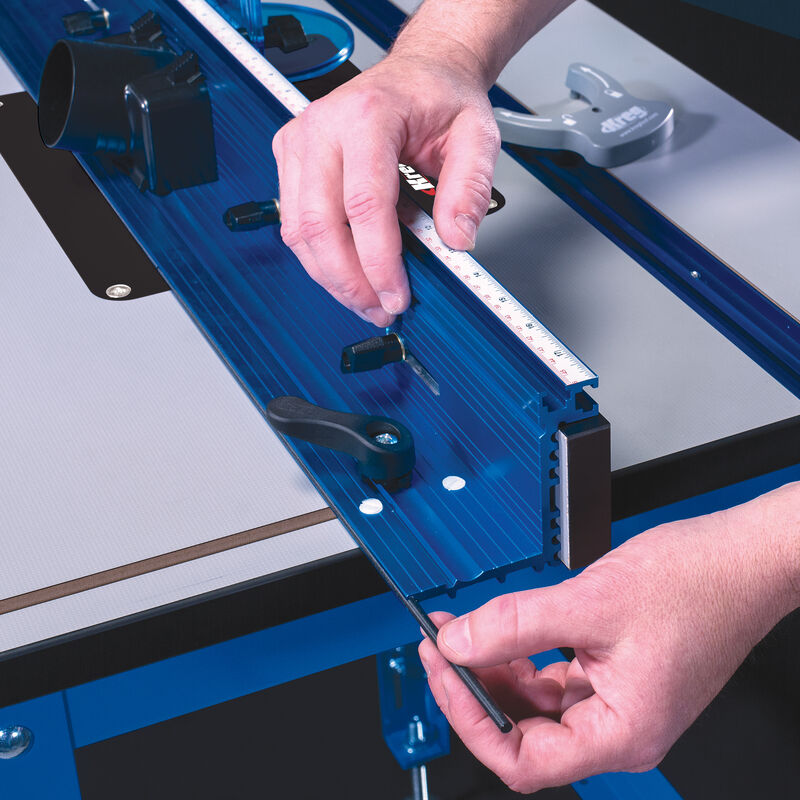

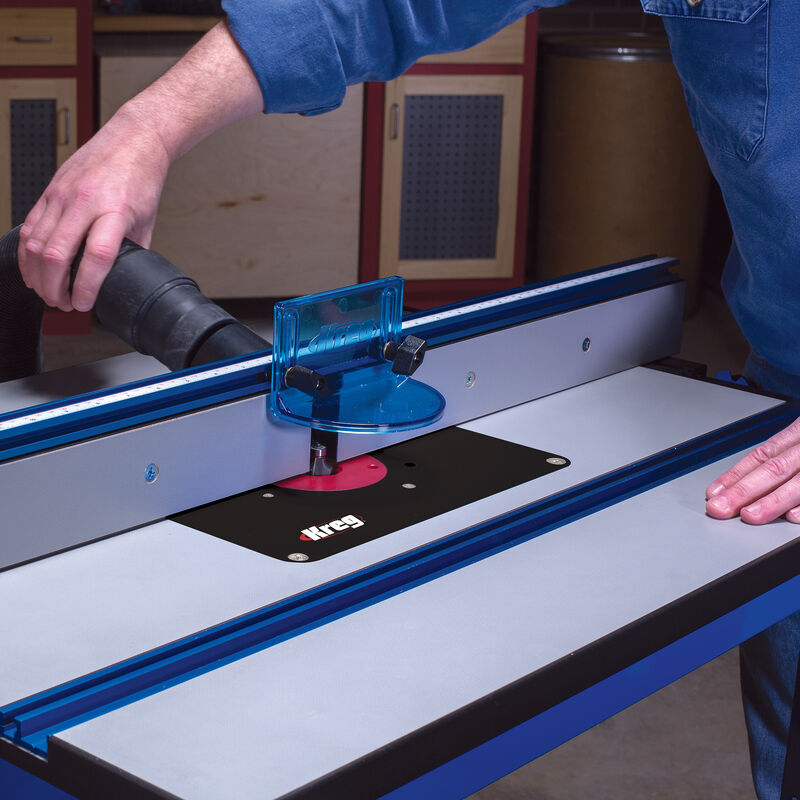

Independent sliding fence faces can be positioned exactly where needed to provide workpiece support close to the bit and to maximize chip collection into the fence’s built-in dust port. Plus, two jointing rods are included. Just slide them into position behind the outfeed fence face, and the fence doubles as a jointer for putting perfect edges on boards.

High-herformance precision router table top

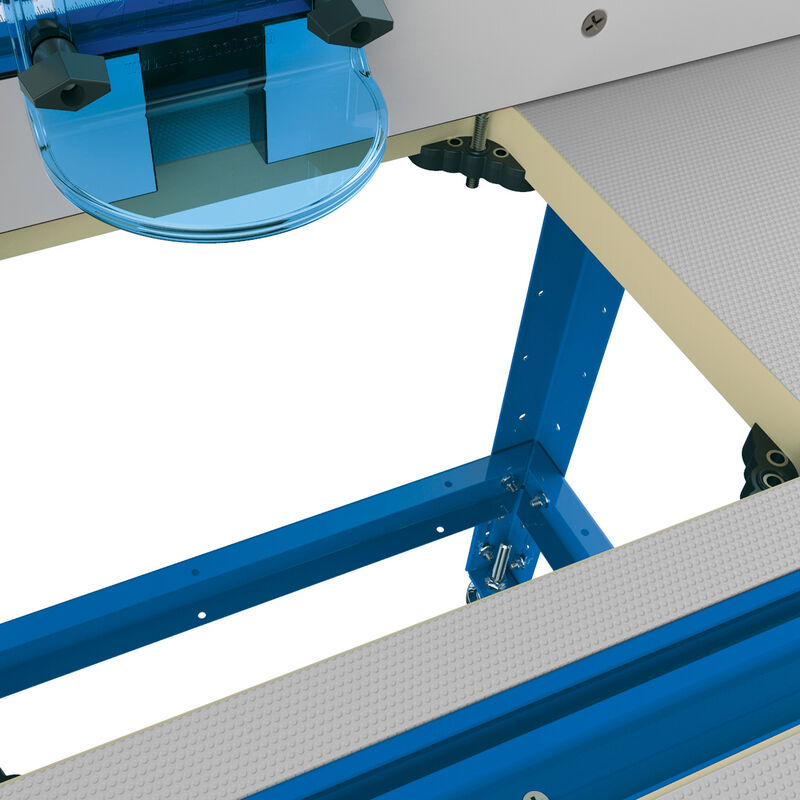

The fence sits on Kreg’s large, durable Precision Router Table Top. This 24" x 32" (609mm x 813mm) table has a 1"-thick (25mm) MDF core that absorbs vibration and offers mass to help create a stable router table. A tough surface, made from high-pressure laminate, helps workpieces glide easily. Underneath, steel-reinforcing struts ensure that the table will stay flat to provide years of dependable service.

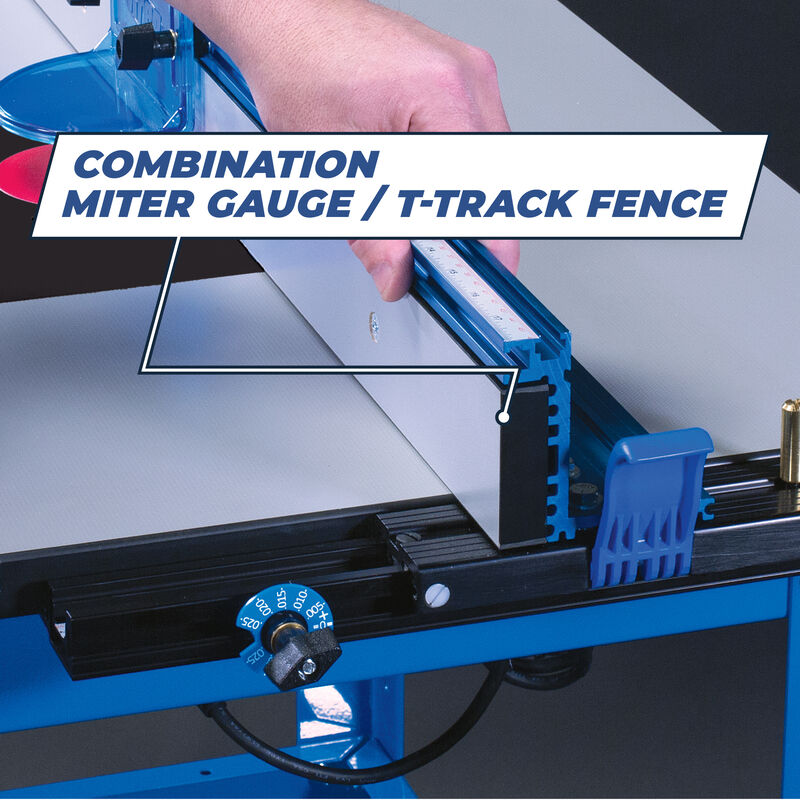

A keyhole slot in the table accepts the quarter-turn fence lock and allows the fence to be removed easily for freehand routing operations. In addition, the table comes equipped with a combination miter-gauge/T-track to accept a miter gauge and other accessories. Four (4) included Precision Insert-Plate Levelers keep plate and table top surfaces perfectly flush.

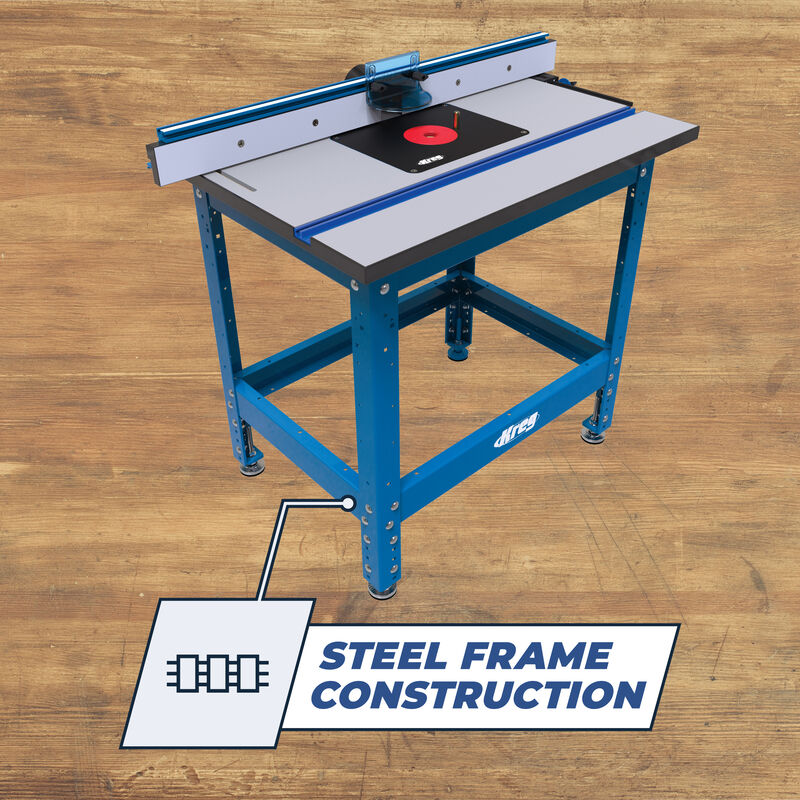

Heavy-duty, easily-adjustable steel stand
To make routing even easier, the table and fence sit atop a heavy-duty stand. Made from heavy-gauge steel, the stand can be adjusted from 31" to 39" (78.7cm to 99.1cm) high, and has levelers to compensate for uneven floors. Plus, the stand has predrilled holes that make it easy to mount accessories and to customize the stand.

Create a custom router table system
Create a custom router table system to meet all of your routing needs with the Kreg Precision Router Table Top and Kreg Multi-Purpose Shop Stand. Or, create your own system with a shop-made table top and stand.

Note: Router bit hole must be located 16" (406mm) from the right side of the table. Fits 1"-thick (25mm) tables without modification. Thinner or thicker tables may require modification.

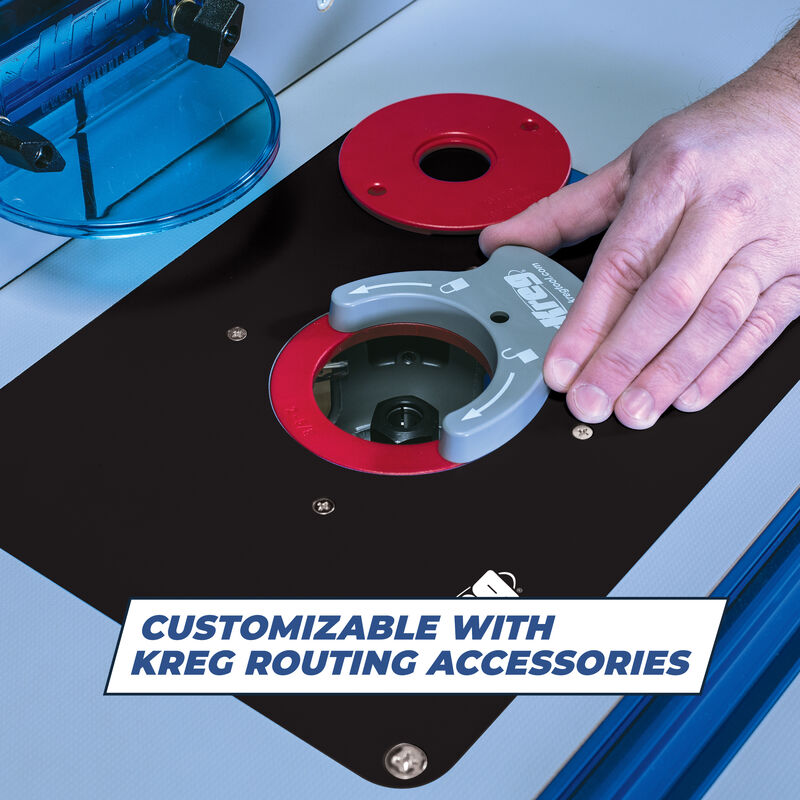

Router Table Insert Plate Custom Drilling Program: Click here to watch the video on drilling mounting holes in your insert plate, or fill out this form and we'll help drill the holes for you.

We take customer
satisfaction seriously.

If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.

Specifications

Technical Specifications
features

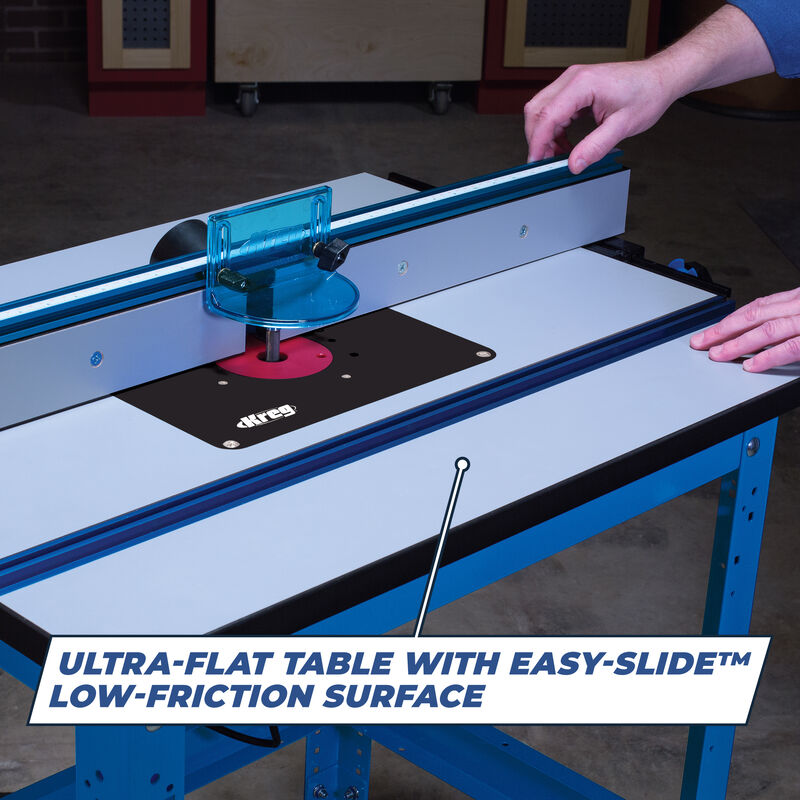

  • Heavy-duty table with Easy-Slide™ low-friction surface

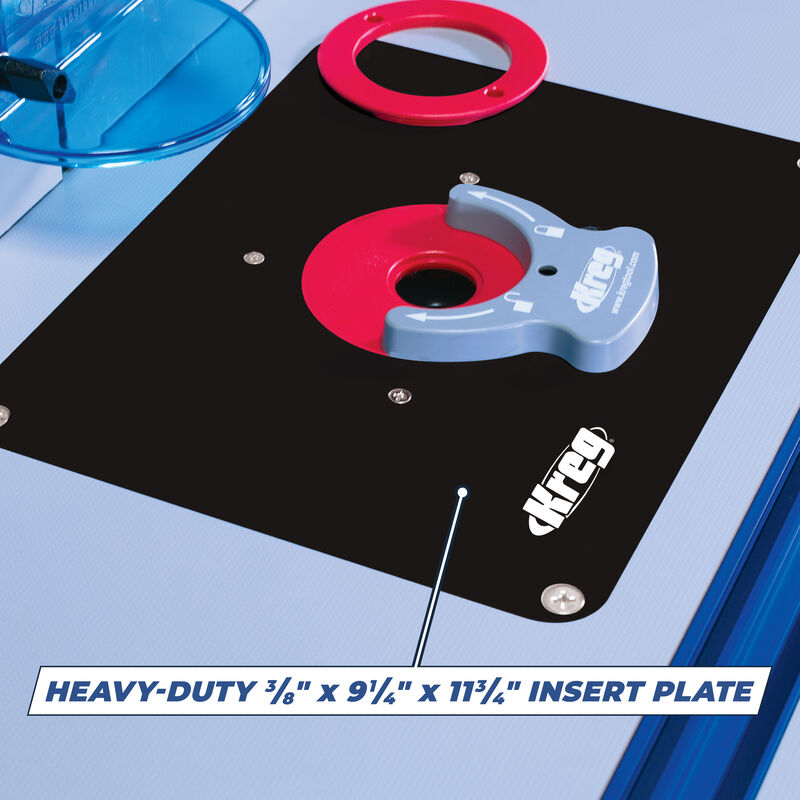

  • Heavy-duty 3/8" x 9 1/4" x 11 3/4" insert plate
  • Precision T-Square style fence with independent sliding faces
  • Heavy-duty steel stand
construction Anodized aluminum, MDF, melamine, steel
adjustability Height adjustable from 31" to 39"
compatibility
  • Precision Router Lift
  • 3" Dual-Locking Casters
  • Precision Beaded Face-Frame System
  • Multi-Purpose Router Table Switch
  • True-FLEX™ Featherboards
  • Precision Router Table Setup Bars
dimensions 24" x 32" Table
includes
  • (1) Precision Router Table Top (PRS1025)
  • (1) Precision Router Table Fence (PRS1015)
  • (1) Multi-Purpose Shop Stand (KRS1035)
