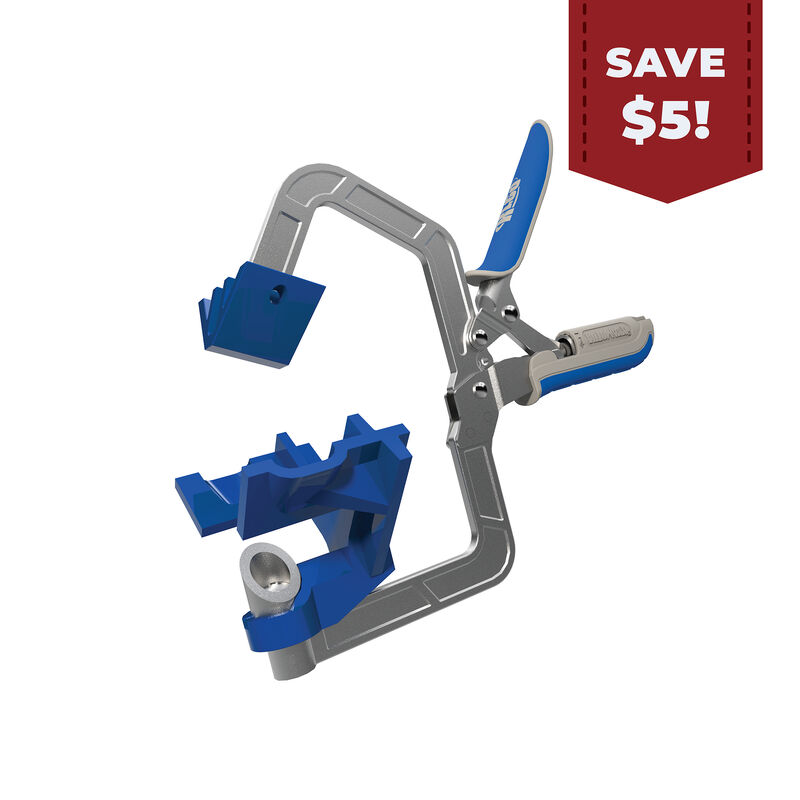

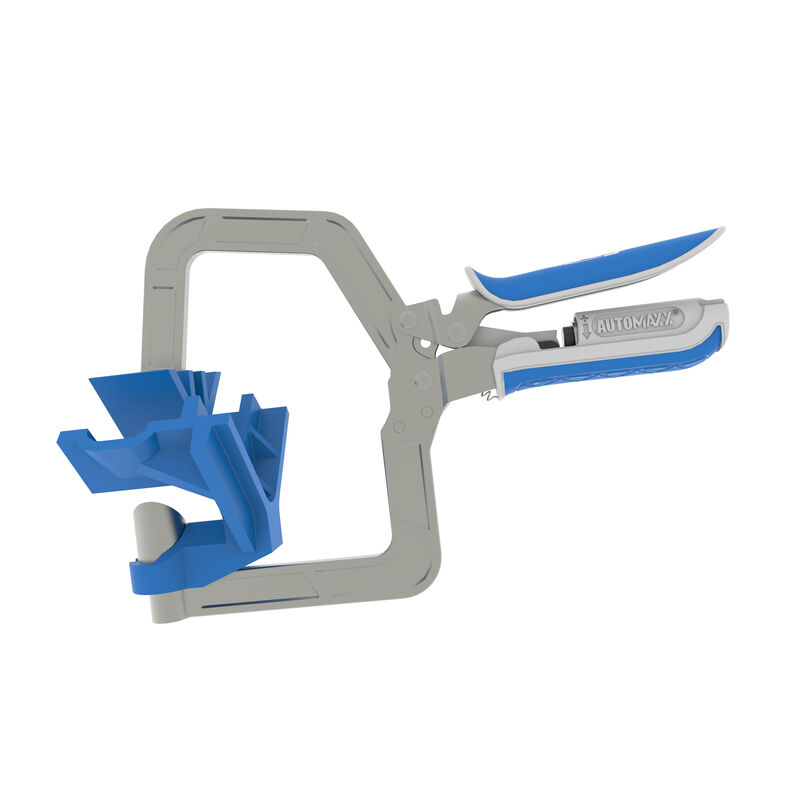

90° Corner Clamp
Item#: KHCCC
90° Corner Clamp
Item#: KHCCC
Availability:
-
In Stock
$44.99
$44.99

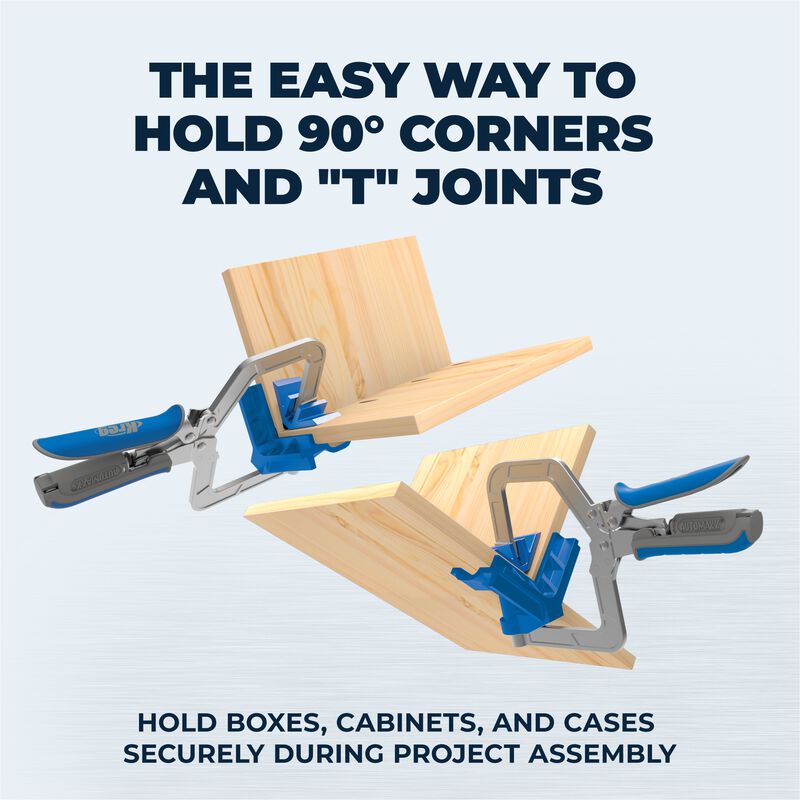

- Works on 90° corners and "T" joints
- 1" maximum capacity
- Cast aluminum "V" and wedge clamp pads
- Automaxx® auto-adjust technology

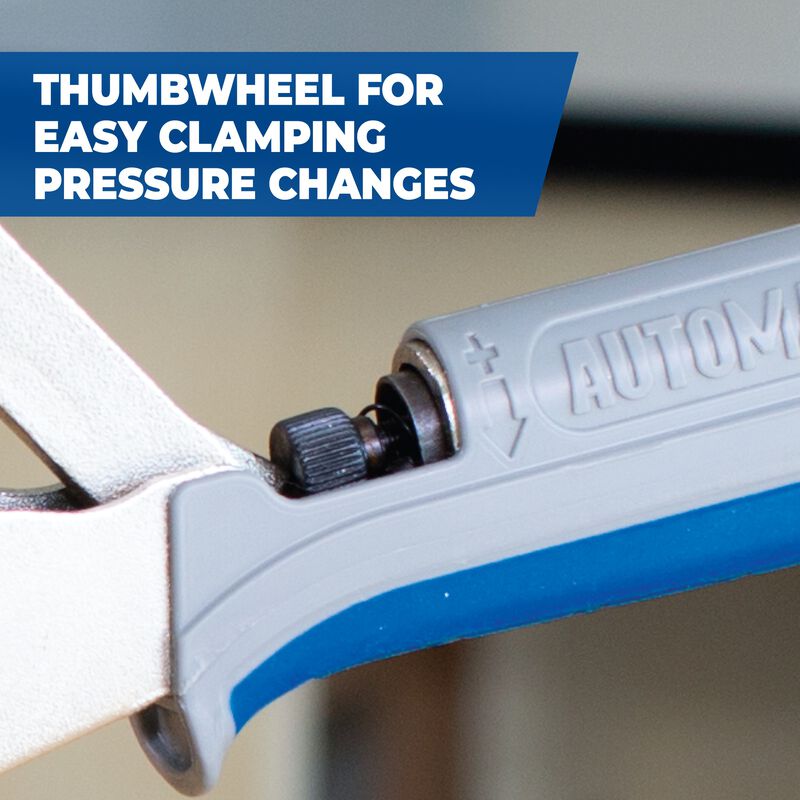

- Easy-to-regulate clamping pressure with thumbwheel

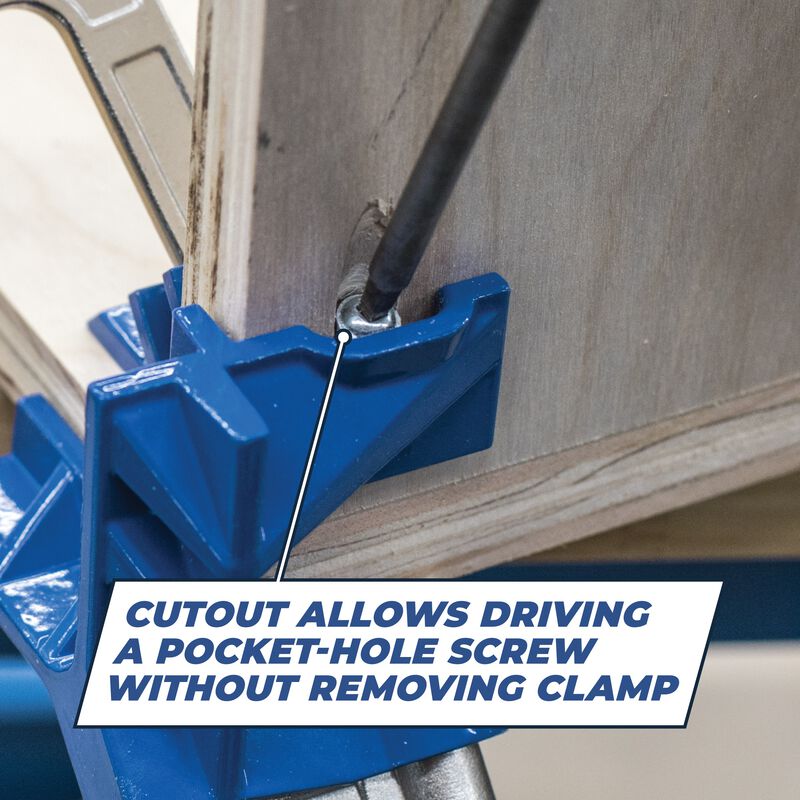

- Cutout allows driving a pocket-hole screw without removing clamp

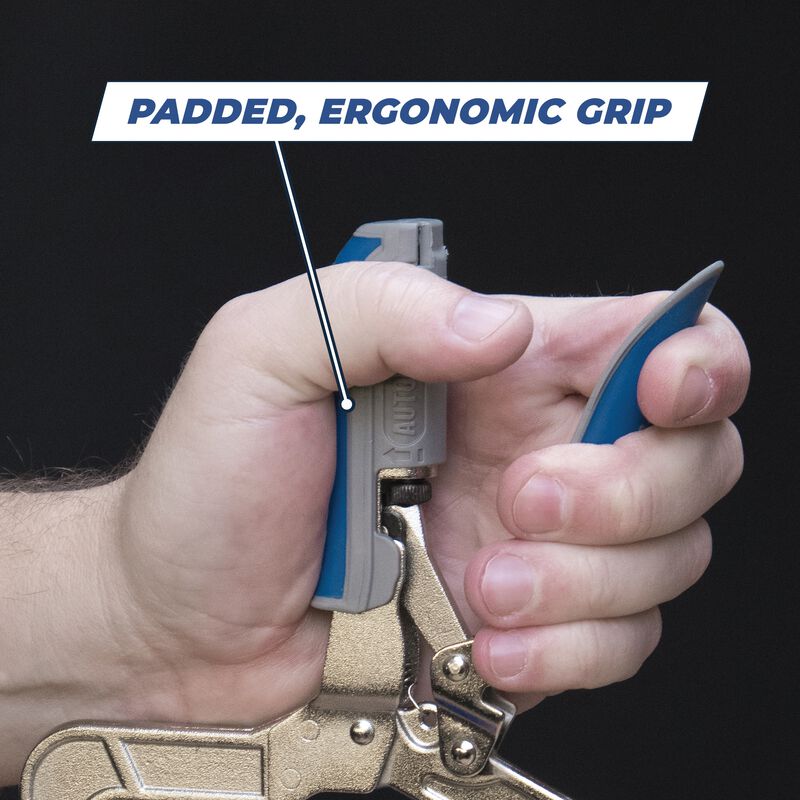

- Padded, ergonomic handles
Product Details
The Kreg® 90° Corner Clamp gives you the helping hand you need to hold 90° corners and "T" joints together securely when you’re assembling boxes, drawers, cabinets and cases. Plus, the 90° Corner Clamp leaves both of your hands free to add your fasteners. The 90° Corner Clamp is the fastest, easiest-to-use corner clamp you can buy thanks to Kreg Automaxx® auto-adjusting technology.

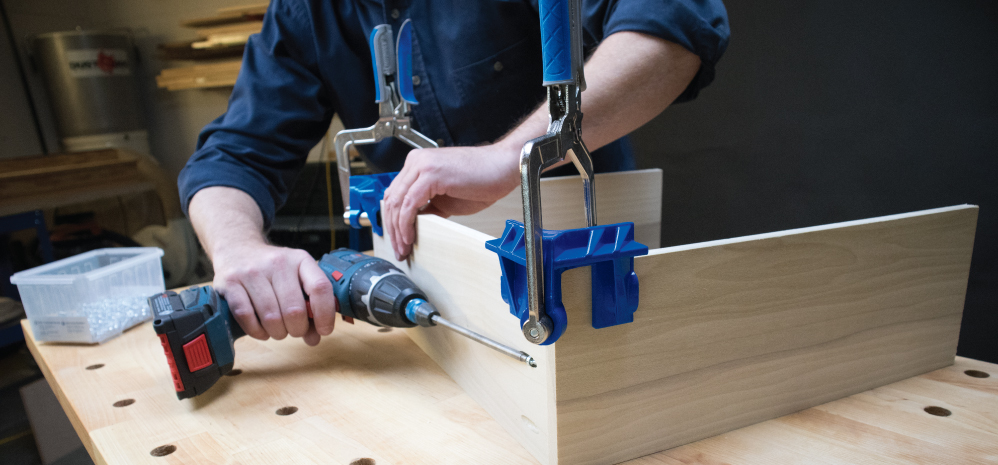

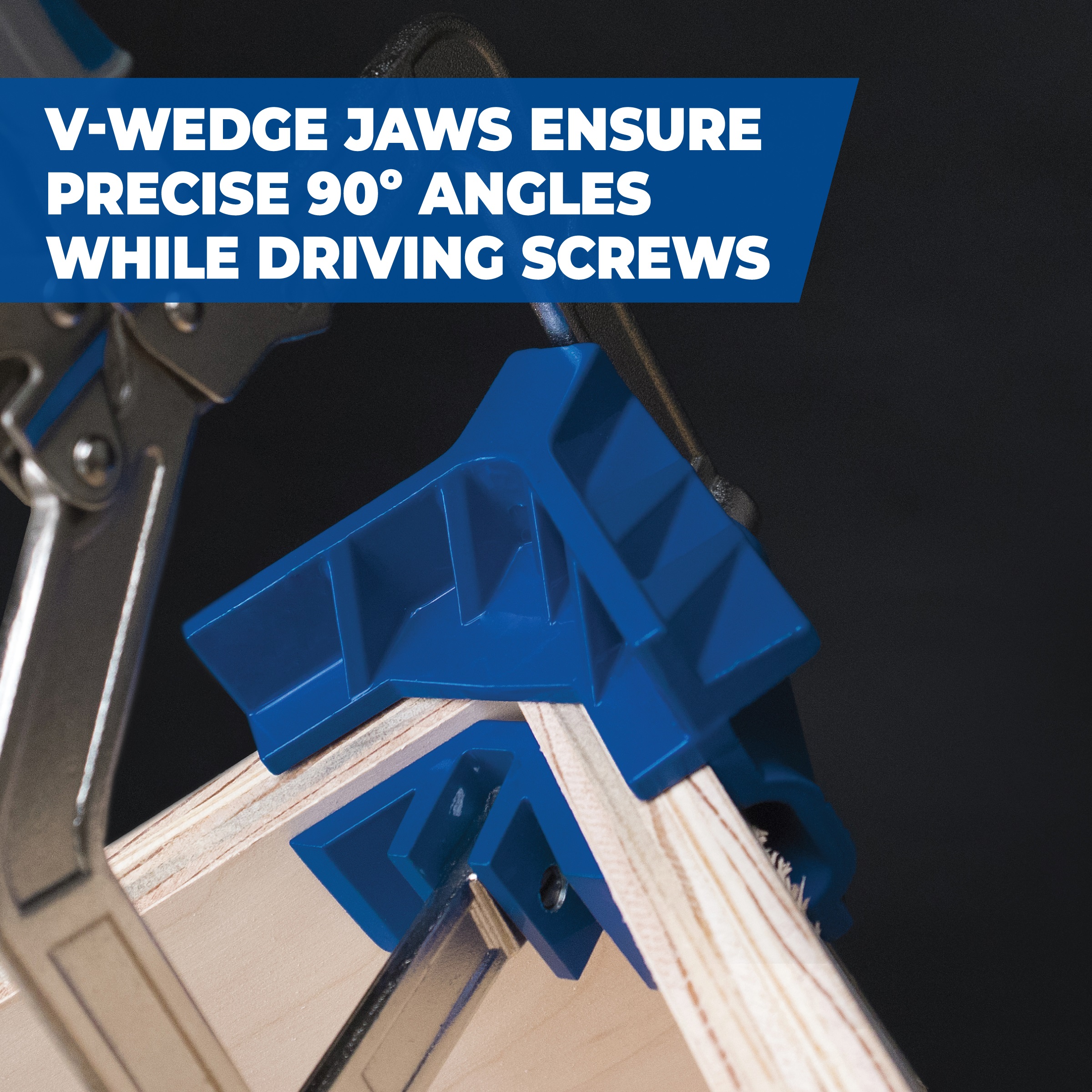

The 90° Corner Clamp helps hold assemblies like boxes, cabinets, drawers, and cases together to ensure that you get strong, tight-fitting assemblies — whether you’re using Kreg pocket-hole joinery, or another method. The clamp’s V-wedge jaws grip the mating pieces securely, ensuring that the pieces sit at precise 90° angles while you drive in Kreg Screws, or even another type of fastener, such as a nail or wood screw.
The 90° Corner Clamp features all-metal construction, including cast-aluminum pads — an outer "V" and inner wedge — that press against the inside and outside faces of the two pieces being joined in order to hold those pieces at a 90° angle to one another. Edge stops also help align the edges of the pieces to ensure accurate assembly of structures like boxes, cabinets, drawers, and cases.
Thanks to Automaxx® auto-adjust technology, all you have to do is squeeze the clamp handles. The clamp will automatically close with the amount of pressure you have set, regardless of the material, whether you’re using thin plywood for drawers, or materials up to 1" thick.
We take customer
satisfaction seriously.
If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.
Specifications
Technical Specifications
| features |
|
|---|---|
| construction | Steel with padded grips, aluminum |
| adjustability | Adjustable clamping pressure |
| capacity | Materials up to 1" thick |

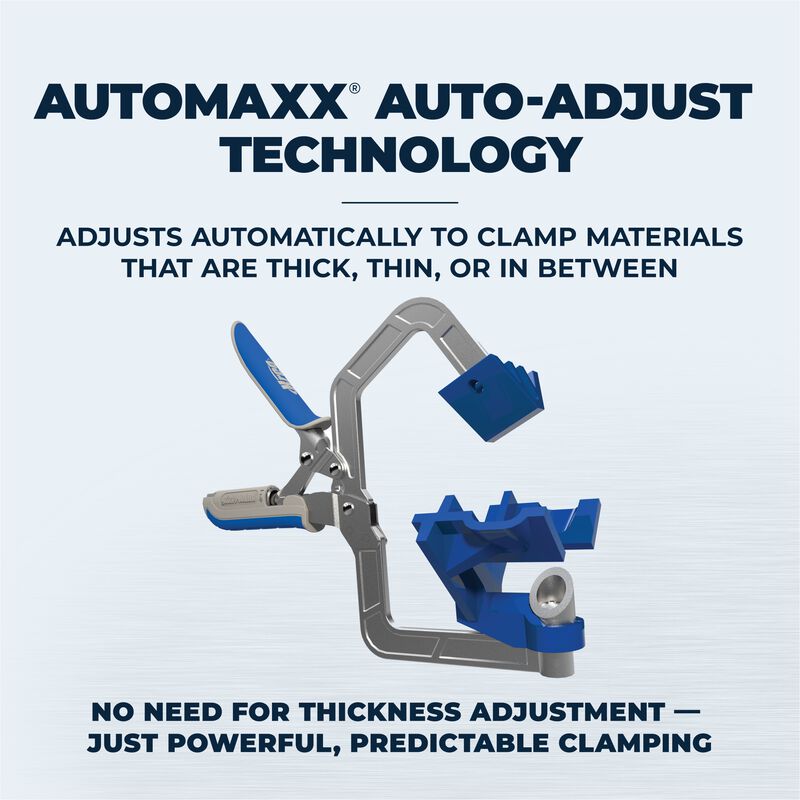

Clamping, simplified with Automaxx®
No fussing with knobs that adjust the clamp capacity, no fiddling to get the exact pressure you want, no need for thickness adjustment at all — just powerful, predictable clamping every time.
Open the jaws of the clamp and back out the adjustment screw to the point where it is loose but not falling out. You should see around 3/8" of threads between the bottom of the head of the screw to where it goes into the handle. You will close the jaws of the clamp all the way, then open them back up. After that, bring the adjustment screw back to the positive about halfway and try to clamp it down.
That adjustment is not an exact adjustment as you may have to tighten or loosen it to get the correct pressure you want to apply. When you are using the clamp, you will want to make sure you are opening the clamp fully when you are moving the clamp. This will allow the Automaxx system to reset to zero each time. You should only need to adjust the adjustment screw if you need to add or take out pressure from the clamp as the clamp will adjust to different thicknesses on its own.
If after the reset the clamp is still not working correctly, please contact us at 800-447-8638 M-F 8-5 CST.
