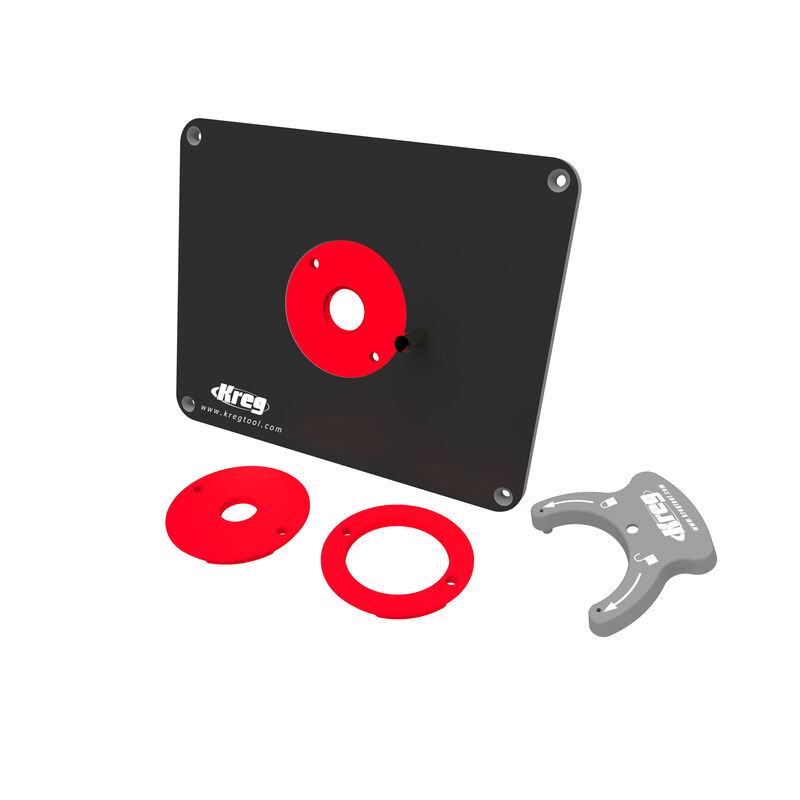

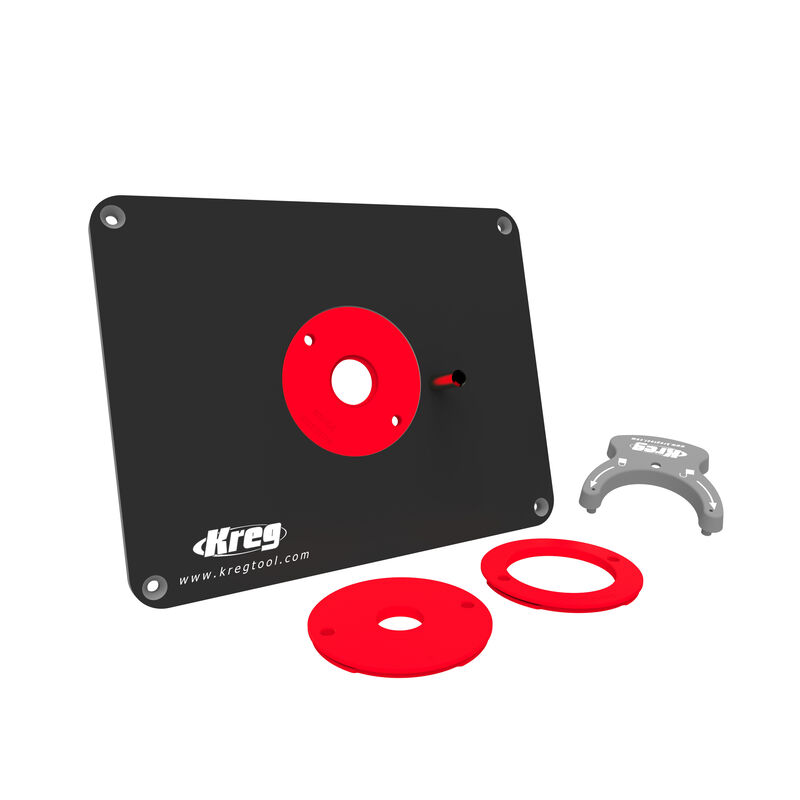

Precision Router Table Insert Plate - Predrilled for Triton

Item#: PRS4034
Loading ratings...

Precision Router Table Insert Plate - Predrilled for Triton

Item#: PRS4034
Loading ratings...
Availability:
  • In Stock
$69.99
$69.99

Buy now. Pay over time. Learn More

  • Measures 9 1/4" x 11 3/4" (235mm x 298mm)
  • 3/8" thick (9mm) phenolic insert plate
  • Comes predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, hole pattern works for Porter-Cable 7500 Series
  • Alignment marks make it easy to center and mount on almost any router
  • Level-Loc Reducing Rings
  • Available in 3 versions: undrilled, pre-drilled for Triton, and pre-drilled for Porter-Cable and Bosch

Product Details

Solid, Flat, and Perfectly Level Mounting Surface
This rugged 3/8" thick (9.5mm) phenolic insert plate is designed to provide a solid, flat, and perfectly level mounting surface for your router. Measuring 9 1/4" x 11 3/4" (235mm x 298mm), it will accept almost any router (even large, heavy models) with ease.

No Unecessary Mounting Holes
Mounting your router to this plate is easy, but it isn't cluttered up with a bunch of extra predrilled mounting holes that you won't need. Instead, this plate comes with predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, the hole pattern also works with the Porter-Cable 7500 Series.

Level-Loc Reducing Rings
The plate is equipped with our Level-Loc Reducing Rings that allow you to easily change the size of the opening around the router bit. These rings simply twist into place using an included ring wrench to lock in level and flush with the plate surface. The plate comes with three Level-Loc Rings: 1" (25mm), 1 3/16" (30mm) for use with universal-style guide bushings, and 2 5/8" (67mm).

Undrilled and Predrilled Plates
The Precision Router Table Insert Plate is available in three versions, so you can choose the one that best suits your needs.

Undrilled: This plate comes without any predrilled mounting holes. Alignment marks engraved on the underside make it easy to center and mount any router using the detailed instructions that are included with the plate.
Predrilled for Triton: This plate comes with predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, the hole pattern also works with the Porter-Cable 7500 Series.
Predrilled for Porter-Cable and Bosch: This plate comes with predrilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617.

We take customer
satisfaction seriously.

If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.

Specifications

Technical Specifications
features
  • Predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers
  • Router centering marks in underside
  • Comes with 3 Level-Loc insert rigns
construction Phenolic
adjustability -
compatibility
  • Precision Router Table Top
  • Precision Benchtop Router Table
  • Level-Loc Reducing Rings
  • Precision Router Table Insert Plate Levelers
dimensions 9 1/4" x 11 3/4" with 3/8" thick phenolic insert plate
includes
  • (1) Phenolic insert plate
  • (3) Level-Loc Rings: 1", 1 3/16" (for use with universal-style guide bushings), and 2 5/8"
  • Installation Instructions
