Precision Router Table Insert Plate - Predrilled for Porter-Cable & Bosch

Availability:
  • In Stock
$79.99

  • Highlights
  • Measures 9 1/4" x 11 3/4" (235mm x 298mm)
  • 3/8" thick (9mm) phenolic insert plate
  • Comes with predrilled holes and mounting hardware to fit the Porter-Cable 690/890 Series, and Bosch 1617
  • Alignment marks make it easy to center and mount on almost any router
  • Level-Loc Reducing Rings
  • Available in 3 versions: undrilled, pre-drilled for Triton, and pre-drilled for Porter-Cable and Bosch
Show More

Solid, Flat, and Perfectly Level Mounting Surface

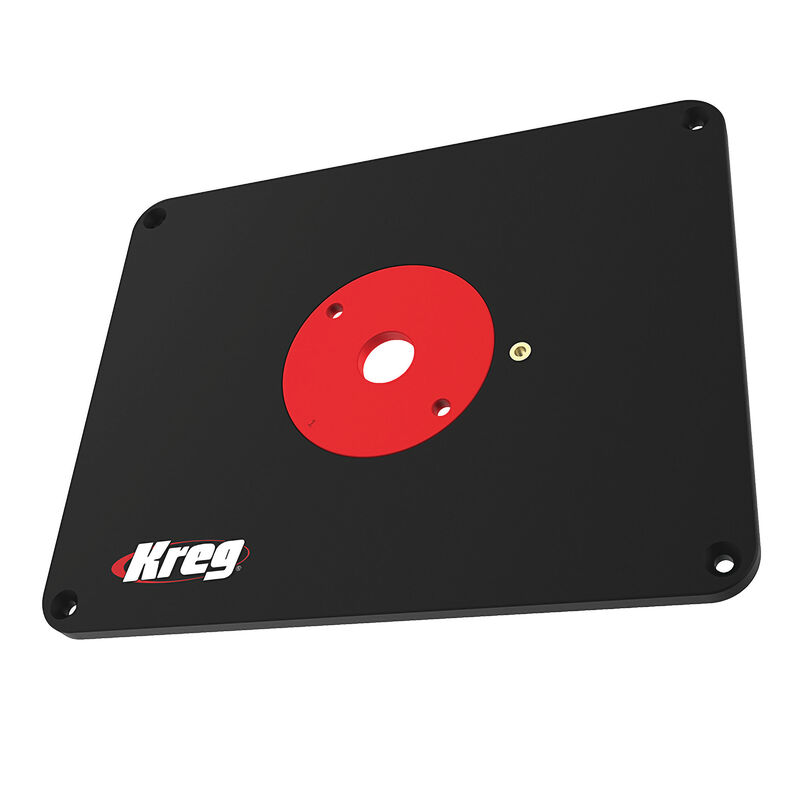

This rugged 3/8" thick (9.5mm) phenolic insert plate is designed to provide a solid, flat, and perfectly level mounting surface for your router. Measuring 9 1/4" x 11 3/4" (235mm x 298mm), it will accept almost any router (even large, heavy models) with ease.

No Unecessary Mounting Holes
Mounting your router to this plate is easy, but it isn't cluttered up with a bunch of extra predrilled mounting holes that you won't need. Instead, this plate comes with predrilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617.

Level-Loc Reducing Rings

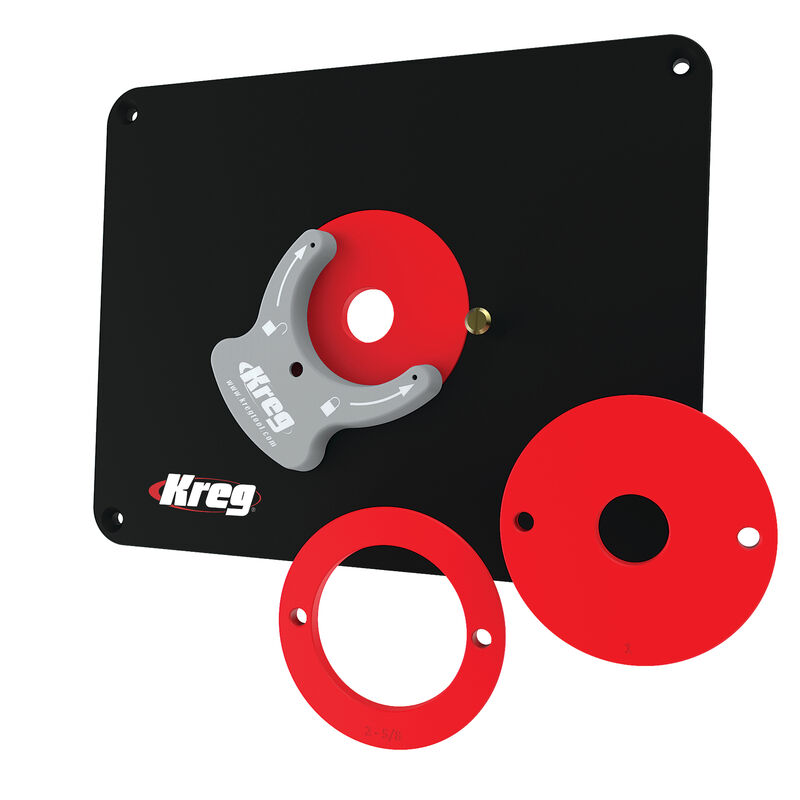

The plate is equipped with our Level-Loc Reducing Rings that allow you to easily change the size of the opening around the router bit. These rings simply twist into place using an included ring wrench to lock in level and flush with the plate surface. The plate comes with three Level-Loc Rings: 1" (25mm), 1 3/16" (30mm) for use with universal-style guide bushings, and 2 5/8" (67mm).

Undrilled and Predrilled Plates
The Precision Router Table Insert Plate is available in three versions, so you can choose the one that best suits your needs.

Undrilled: This plate comes without any predrilled mounting holes. Alignment marks engraved on the underside make it easy to center and mount any router using the detailed instructions that are included with the plate.
Predrilled for Triton: This plate comes with predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, the hole pattern also works with the Porter-Cable 7500 Series.
Predrilled for Porter-Cable and Bosch: This plate comes with predrilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617.

Show More
features
  • Predrilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617
  • Alignment marks make it easy to center and mount on almost any router
  • Comes with 3 Level-Loc insert rigns
construction
Phenolic
compatibility
  • Precision Router Table Top
  • Precision Router Table System
  • Precision Benchtop Router Table
  • Level-Loc Reducing Rings
  • Precision Router Table Insert Plate Levelers
dimensions
9 1/4" x 11 3/4" with 3/8" thick phenolic insert plate
includes
  • (1) Phenolic insert plate
  • (3) Level-Loc Rings: 1", 1 3/16" (for use with universal-style guide bushings), and 2 5/8"
  • Installation instructions
  • Mounting hardware
