I was able to get
"I was able to get the fixture bar with zero play!"
Overall rating: 4.6666665 / 5 from 9 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Super courteous service
"Super courteous service"
made table saw sled worked
"made table saw sled worked great"
Kreg tools are the best.
"Kreg tools are the best. Look nowhere else if they have what you’re looking for. Their reputation as a company for their efforts in the community along with the quality of their products is second to no one. Thank you Kreg Tools."
Kreg tools
"I have purchased Kreg tools three times in the last 60 days. They send my orders quickly and in superb packaging. Why even bother going anyplace else?"
ok. expensive
"ok. expensive"
Jig Bars
"Very easy to adjust. Works perfect, just like all Kreg products"
Great part, good quality
"Great part, good quality"
Looks like a quality item
"I haven’t assembled the crosscut table saw sled yet. So I haven’t used the items."
Q&A
- Where is this product manufactured?
- These are manufactured here in USA.
- Will this miterbar work on a Dewalt table saw
- The miter bar is 3/4" wide x 3/8" deep. So if that miter slot on that saw is that size, it will work.
- I need an exact width of the runner. I had one from another source which did not quite fit...it measured .745" and was too wide. My slot (Craftsman table saw) is .735".
- The measurement of the bar is .736"
- Can I get replacement plastic adjustment screws? I am talking about the small plastic machine screws used to remove the side-to-side slop.
- To get parts, please email us at technicalsupport@kregtool.com
- I want to find a bolt that fits in the holes that are threaded. What size do I need and what type of threading is it?
- The threads on the side of the bar are 10-32.
- I need to shorten these bars to use for rails on a crosscut sled. Can you cut them with a miter saw. I have cut top track with no problem, but these seem more substantial. Thanks, Marc
- You sure can, they are made of aluminum so cutting with a miter saw will work.
- I'm looking at the Jig and Fixture Bar. What size mounting screws is it predrilled for? (My cut off sled base is 1/2 inch plywood.) Thanks!
- The holes are made for a #6 flat head headed screw.
- I just purchased one of these mitre-guage jig runners to use for a cross cut table sled. I noticed an extra hole at one end which seems to accommodate a bolt and plastic nut that came with the package. Sorry for my ignorance, but I just don't know this function/purpose. Also, I wondering: can I cut this bar with say a mitre saw without damaging my blade too much. Obviously, I'm a novice woodworker and hobbyist. Thanks for your help!
- I will be happy to help you out so I emailed you directly to see what you are looking at.

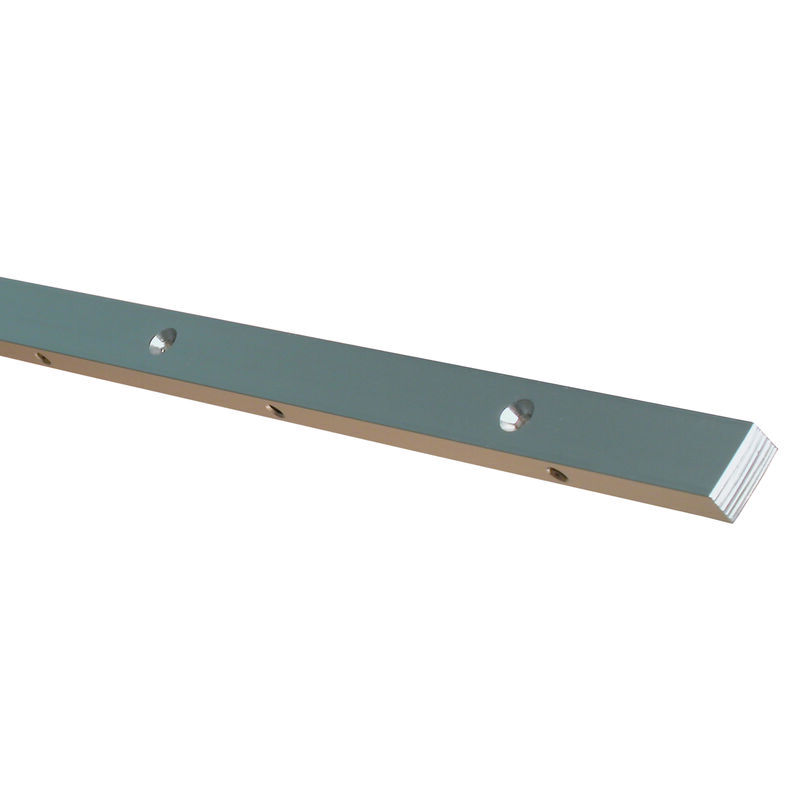

Jig & Fixture Bar - 30"
Availability:
- Discontinued
Discontinued
- Highlights
- Perfect for building workshop jigs and fixtures
- Screws along the bar adjust easily to compensate for any "play" in the miter gauge slot
- Mounting holes every 4" (101mm) along bar length
- Fits standard 3/8" (9mm) x 3/4" (19mm) miter gauge slots
Show More
