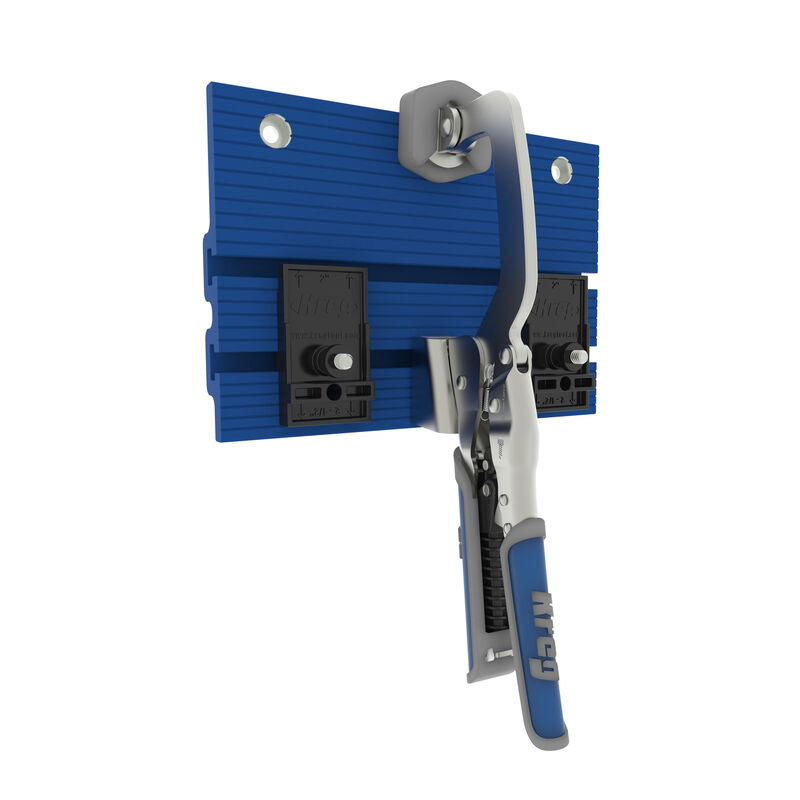

Clamp Vise

A: Due to different head styles, the non-marring pad that comes with your Bench Clamp™ will not work with our Face Clamp™ family. Non-marring pads are usually unnecessary when using our Face Clamps™, as they are generally not used to apply the same amount of clamping pressure as our Bench Clamps™ are.

A: Kreg® Clamps with Automaxx® make clamping faster and easier than ever by adjusting automatically to clamp materials that are thick, thin, or in between. With Automaxx, there’s no fussing with knobs that adjust the clamp capacity, no fiddling to get the exact pressure you want, no need for thickness adjustment at all — just powerful, predictable clamping every time. Below are some helpful hints to ensure your clamping experience is consistent every time.

Remove the clamp from the packaging and test the clamp pressure on your material.
If you are happy with the pressure of the clamp, no further adjustment is needed. If you would like more/less clamping pressure, simply open the clamp handles fully. Once open, turn set screw one-half turn (to the positive for more pressure, to the negative for less pressure) to adjust. Try out the clamp on the same material and repeat these steps until the desired pressure is found.
Once you are happy with the clamping pressure, the clamp will maintain this same pressure until you change the setting again. If you would like to increase or decrease clamping pressure, follow the previous steps until the appropriate pressure is met.
To ensure consistent pressure, open the clamp handles completely each time you move the clamp. This allows the Kreg Automaxx system to reset for the correct clamping pressure.
Following these steps will ensure that these clamps will perform their best for all your project-building needs. If you have any additional questions please contact our Support Team at technicalsupport@kregtool.com.

A: I m sorry to say, we do not have that block separate. We only have it as a kit.

A: I am sorry to say, we only have the extrusion in the one length.

A: The plate is 8" wide and 5.5" tall. The mounting holes are 1" from both edges then 6" between the holes.
