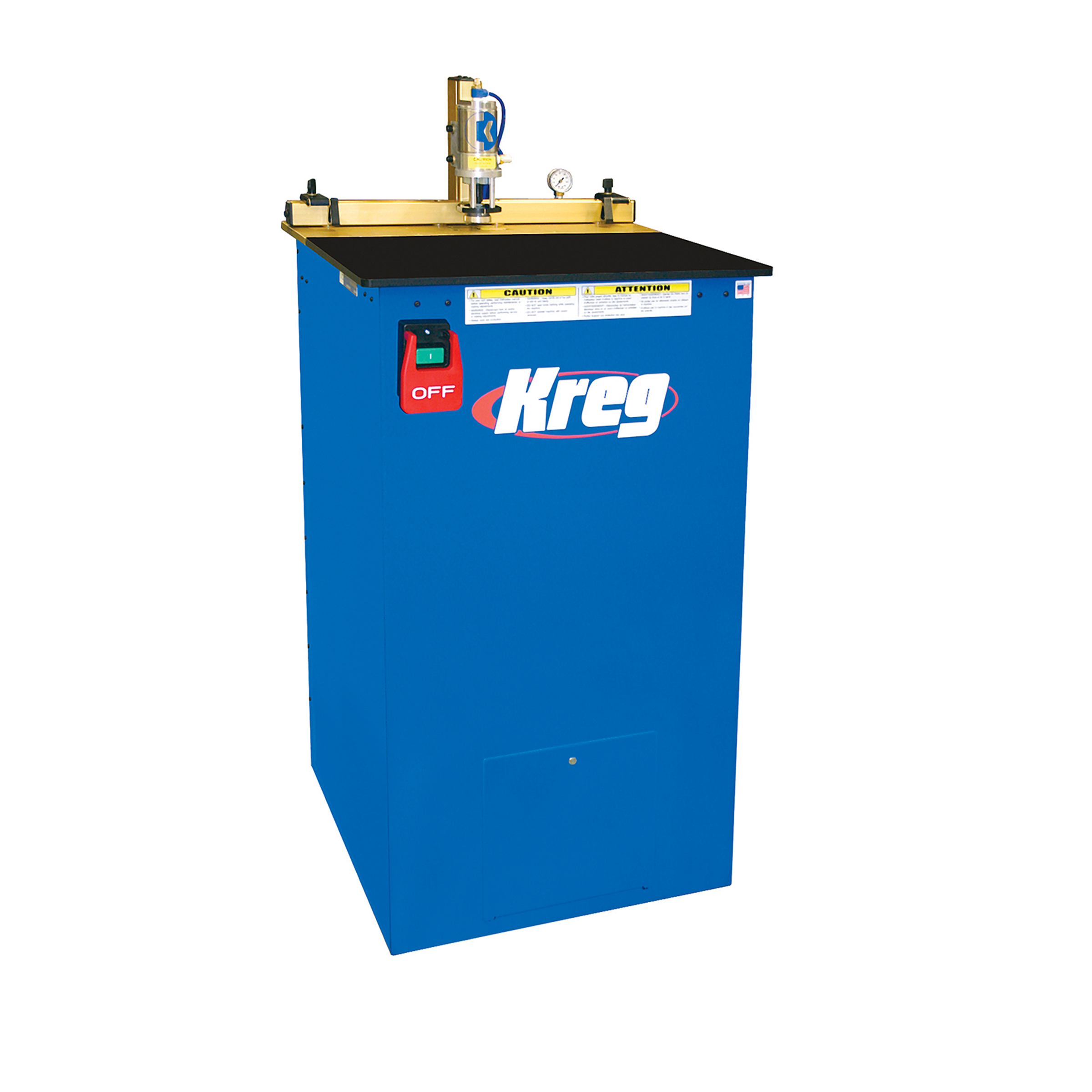

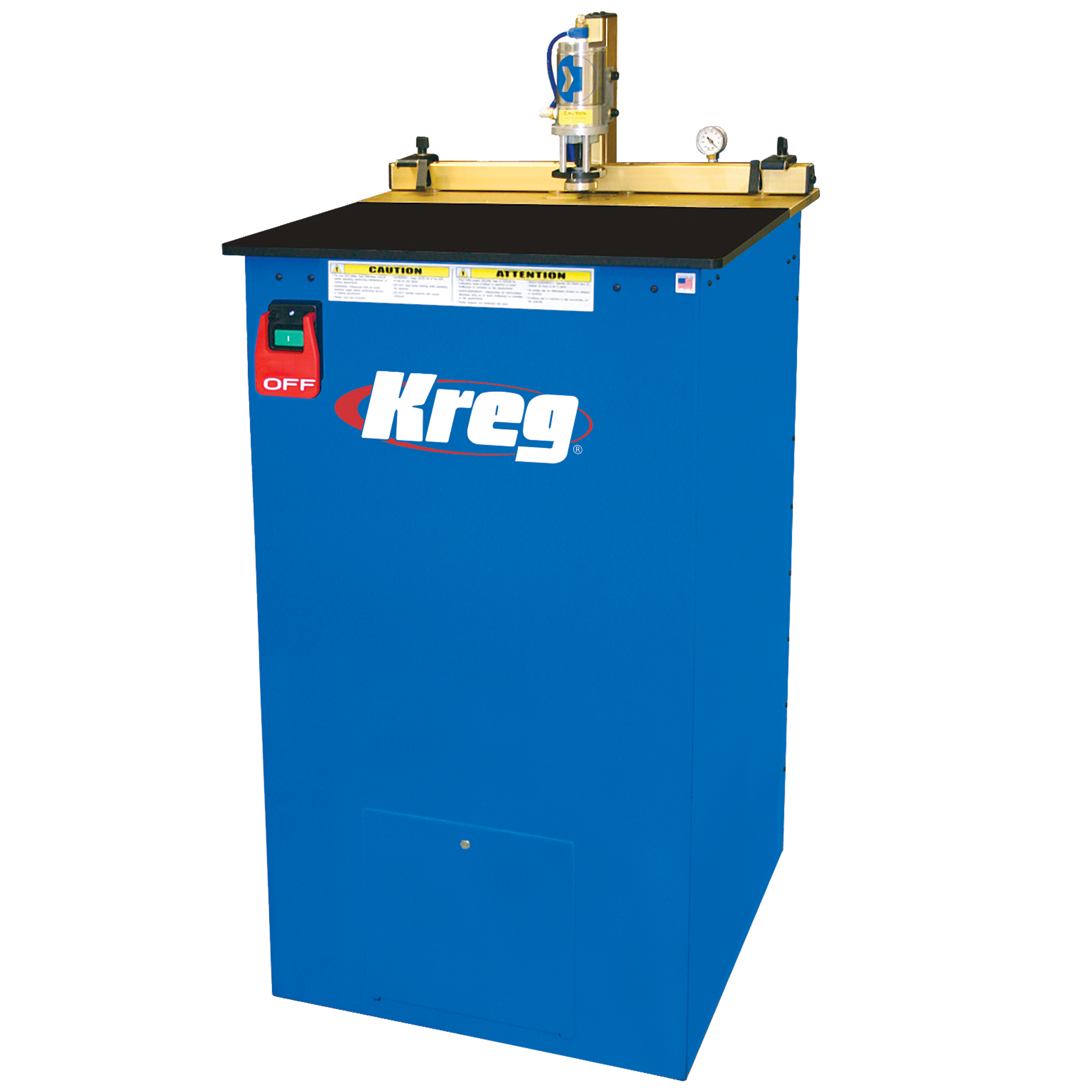

Single-Spindle Electric Pocket-Hole Machine

Item#: DK1100FE
Loading ratings...

Single-Spindle Electric Pocket-Hole Machine

Item#: DK1100FE
Loading ratings...
Availability:
  • Out Of Stock
$3,999.99
$3,999.99
PayPal Credit

Buy now. Pay over time.

Learn More

Product Details

The DK1100 series of machines are the standard in the industry for drilling a single pocket hole at a time. We’ve packed these machines with functional features that set them apart from the competition. Choose from electric- or pneumatic-powered, freestanding- or bench-mounted to fit the way you build. Each DK1100 machine is built with industrial-grade motors that provide the power to run day after day – quickly, quietly, and reliably – in even the most high-production environments.

Add real productivity and efficiency to your shop with the "Production Pocket-Hole Standard." This model works with any standard 20-amp 110-volt outlet and features a strong 11/2-HP electric motor, single-spindle simplicity, and a cycle time of less than one second.

Convenient Swing Stops
Quickly position two pocket holes across rails of various widths by placing it against one stop, drilling the hole, and then repeating with the rail against the other stop. For drilling pocket holes in panels, the stops simply swing out of the way.

Adjustable Fence
Adjustments couldn’t be easier, as the fence adjusts from the top side of the machine to let you center a screw in 1/2" to 1 1/2" (12-38mm) thick material. The clamp hold-down also adjusts to allow materials up to 4" (101mm) thick to be drilled.

Quick Drill Bit Changes
Changing drill bits is a quick and simple process. Simply loosen the collet with the provided Allen wrench, replace with a new bit, and you are back in production in less than 60 seconds.

Long-Lasting Motors
The industrial-grade motors used in Kreg machines are built for long-lasting service. Kreg machines are also designed to minimize stress on moving parts, greatly reducing the likelihood of failure.

  • Works with any 20-amp 110-volt outlet
  • Strong 1 1/2-HP electric motor
  • Single-spindle simplicity
  • Cycle times of less than 1 second

We take customer
satisfaction seriously.

If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.

Specifications

Technical Specifications
features
  • Single-spindle pocket-hole machine
  • Electric drill motor, pneumatic clamping
  • Works with any 20-amp 110-volt outlet
  • 1-second cycle time
adjustability Pilot-hole centering in material thickness
capacity Materials from 1/2"- to 1 1/2"-thick
power
  • 1 1/2"-HP, 110-volt, single-phase
  • 1 CFM clamp cylinder (90 PSI/minute)
compatibility DKDB Stepped Drill Bit
dimensions 50"H x 24"W x 24"D (40" table height), 176 lbs.
includes
  • (1) DK1100FE with bits and fittings
  • Owner's Manual
warranty 5 years
