Kreg® Pocket-Hole Jig K4 Master System
Kreg® Pocket-Hole Jig K4 Master System
- Removable Drill Guide for benchtop and portable use
- Drill Guide includes 3-hole fixed spacing
- For use with materials 1/2" to 1 1/2" (12-38mm) thick in 1/8" (3mm) incremental settings

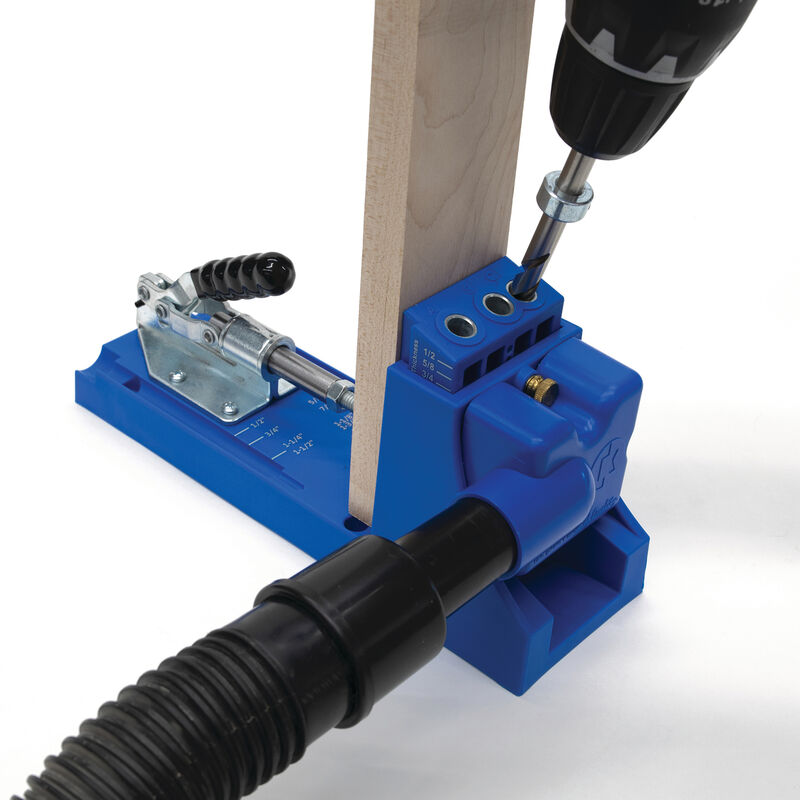

- Dust-Collection Shroud collects wood chips as you work
- Material Support Stop for consistently repeating hole spacings
- Hardened-steel Kreg Drill Guides feature a lifetime warranty
The do-it-yourself Kreg Pocket-Hole Jig with bonus accessories
The Kreg Pocket-Hole Jig K4 Master System is a great choice for any woodworking enthusiast looking for a complete set to get started building with Kreg Joinery™. With its solid clamp, large clamping recess, dust collection attachment, material support stop, and removable 3-hole drill guide, this jig truly has it all. The Master System includes a Pocket-Hole Jig K4, Bonus Kreg Accessories: the Kreg Face Clamp, Portable Base, and more.
Large clamping recess
The Large Clamping Recess makes it easy to secure your jig to your workbench using Kreg multi-purpose Face Clamps or any common bar clamp or C-clamp.

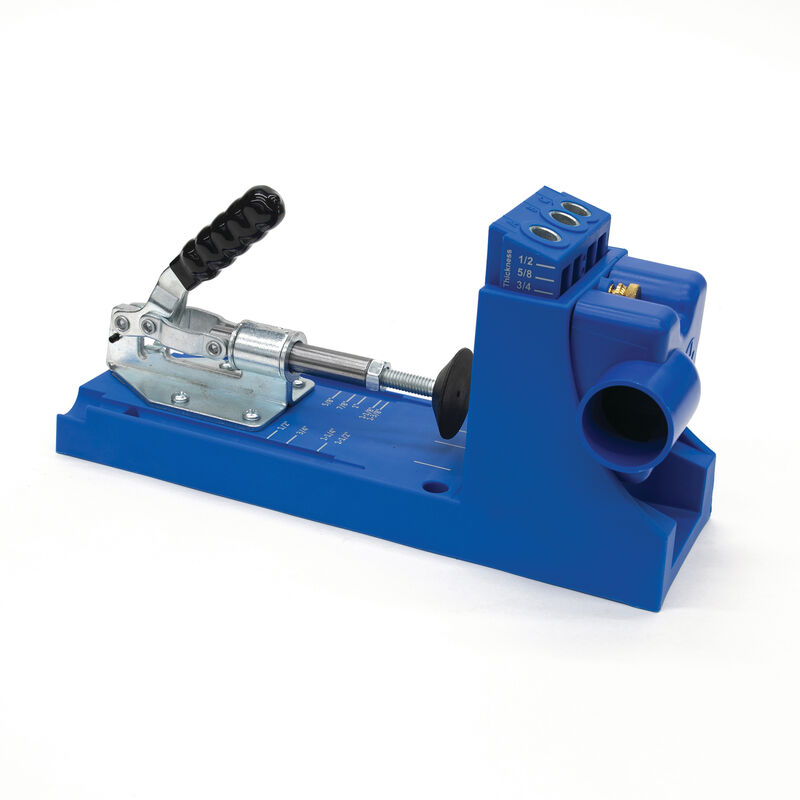

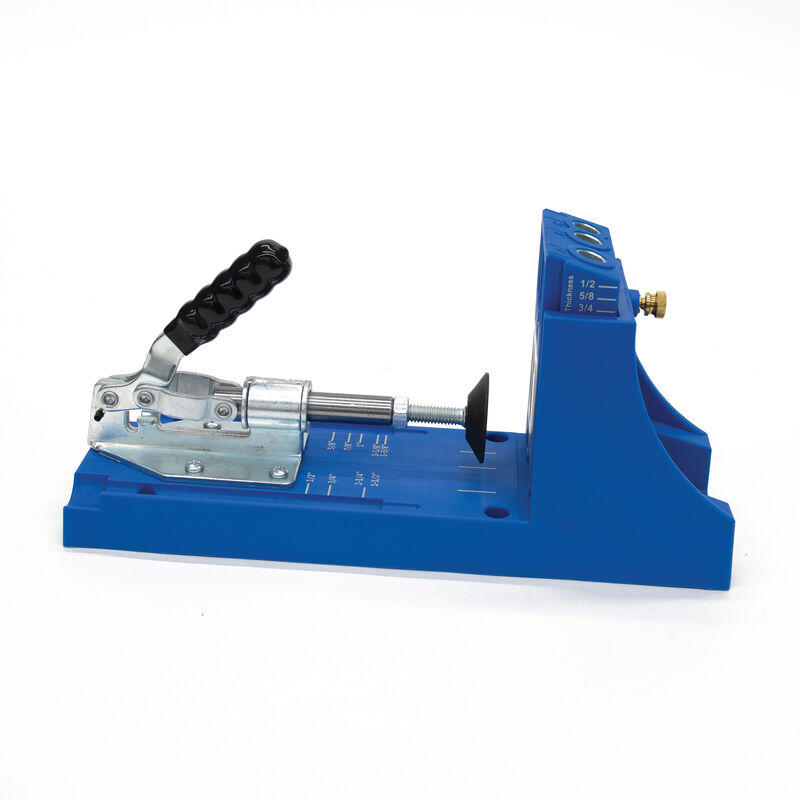

The Kreg Pocket-Hole Jig K4's rear-mounted clamp design has been around since the first Kreg Pocket-Hole Jig. It's a proven design, offering incredible rigidity and uncompromising workpiece hold-strength. Adjustments are as easy as releasing the locknut and rotating to the correct setting.
3 Tools in 1

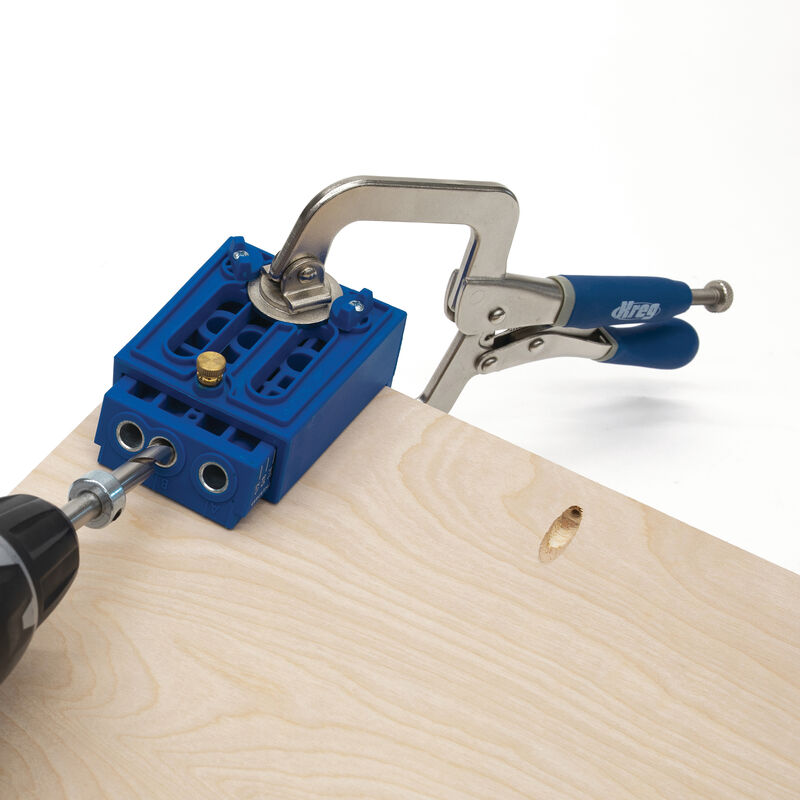

Thanks to its removable Drill Guide, the K4 Master System can serve as many different tools: a sturdy benchtop jig that utilizes the benchtop base for high speed pocket holes, a contractor-grade jig for work on the road through the use of the portable base, and a high-quality repair jig when you add spacer blocks to the bottom of the drill guide.

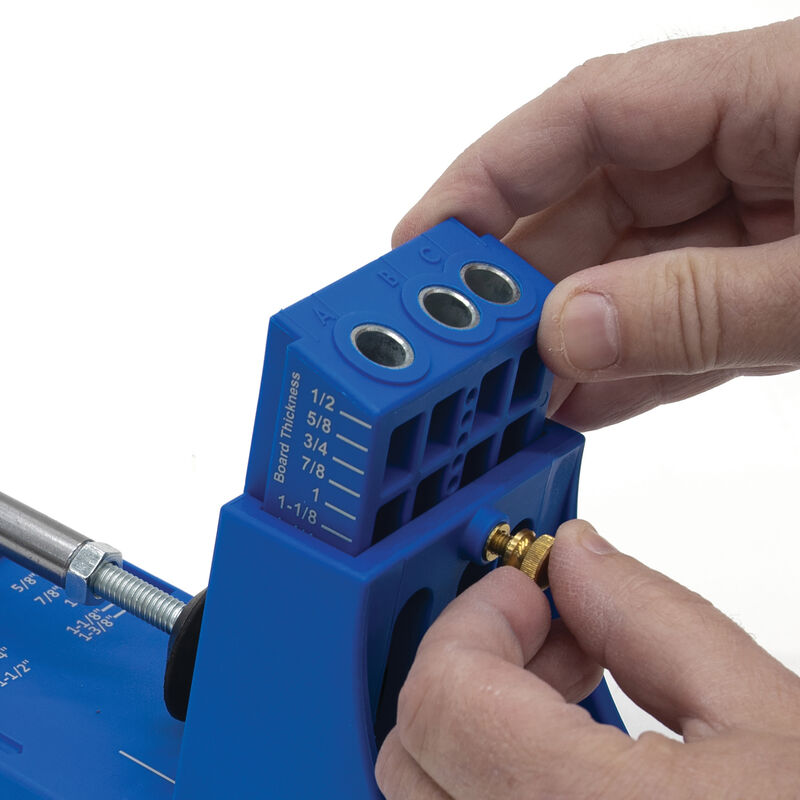

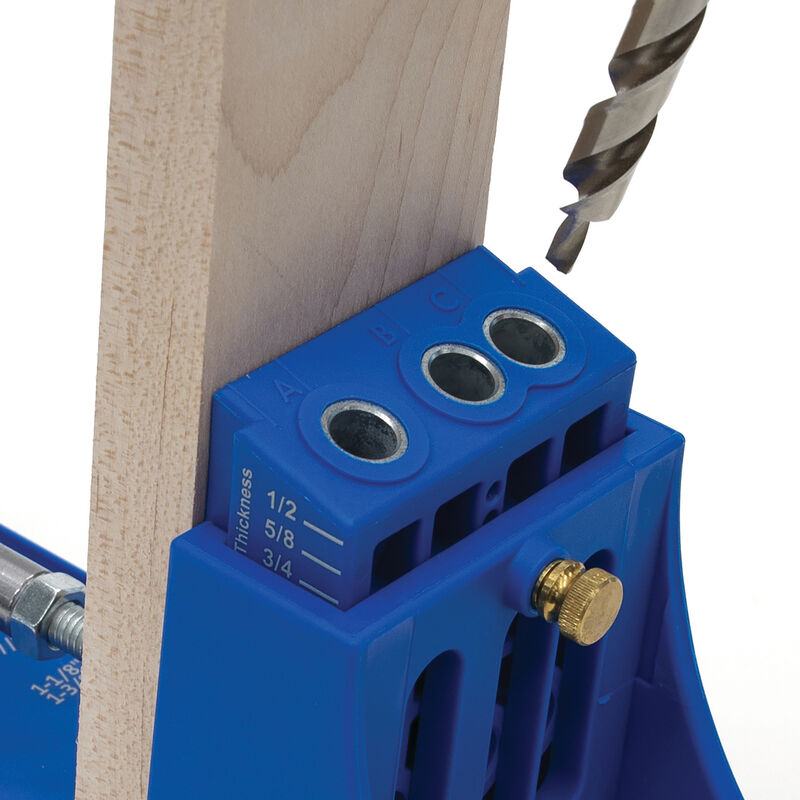

Three-Hole drill guide
The 3-hole Drill Guide lets you drill pocket holes in a wide variety of material widths and thicknesses — from 1/2" to 1 1/2" in 1/8" increments. Every Kreg Drill Guide features a hardened-steel core, which carries a lifetime guarantee. The core shrouds the bit and supports the workpiece through 100% of the drill-stroke, resulting in minimal bit deflection, reduced tear-out, and a clean, pluggable pocket hole.
Material support stop
The Material Support Stop can be set at any distance from the jig to help you repeat the same pocket holes over and over again. The stop can also be swung out of the way to serve as a height support for larger panels.
Glass-reinforced nylon body
The blue body of every Pocket-Hole Jig K4 is made from a heavy-duty, glass-reinforced nylon. This composite material offers the resiliency and flexibility you need without sacrificing the strength and durability Kreg customers have come to expect.
Unlike competing jigs with a shallower angle of approach, the K4 Master System features an optimized drilling angle, specifically designed to increase driving efficiency and minimize the overall size of the pocket hole. The result is a compact pocket hole, less than 1 1/2" in size.
The K4 Master System includes one wood-chip relief hole for every Drill Guide hole, designed to keep the drill bit clear of excess wood chips, minimize drill torque, increase the longevity of your drill bits, and allow you to complete a perfect pocket hole in just one plunge.
- Adjustable, removable drill guide
- Hardened-steel drill guides
- Includes bonus accessories
- 9/16", 7/8", 1 7/16" hole spacing
- Drill guide adjusts for 1/2"-1 1/2" thick material
- Adjustable clamp pad

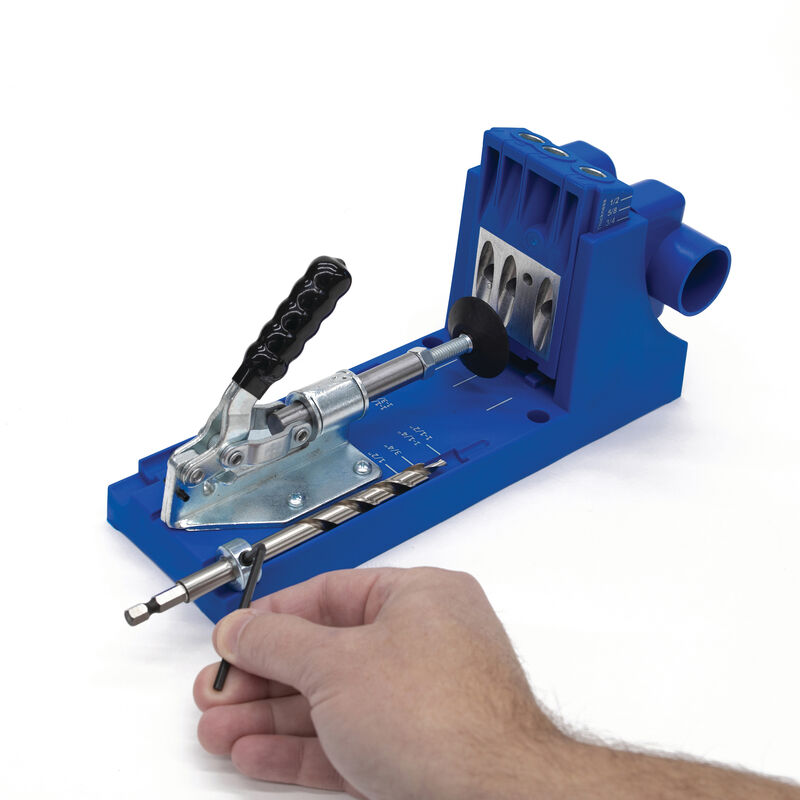

- Adjustable drill-bit stop collar
- Kreg Pocket-Hole Screws
- Kreg Pocket-Hole Plugs
- Micro-Pocket Drill Guide
- Kreg Jig HD
- Easy-Set Drill Bit

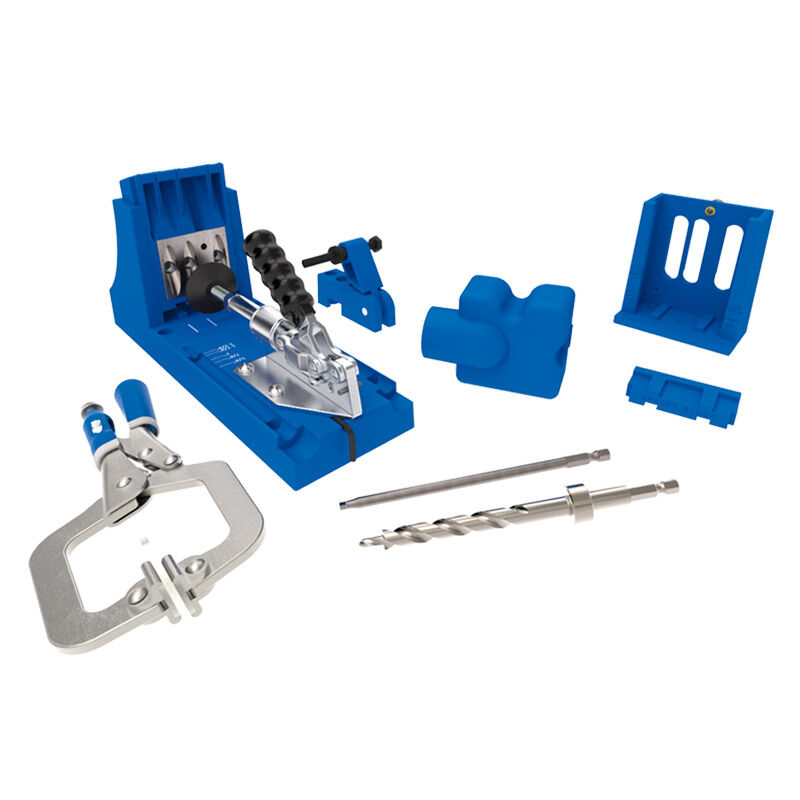

- (1) Pocket-Hole Jig K4
- (1) stepped drill bit
- (1) 6" square-drive bit
- (1) screw and plug sample pack

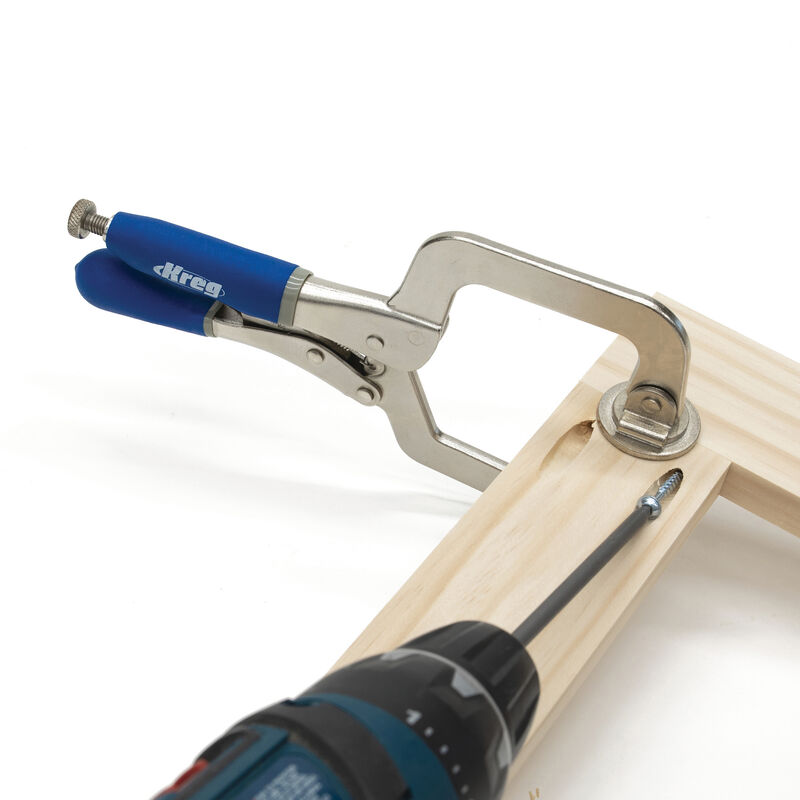

- (1) 3" face clamp
- (1) portable base
- (1) drill-guide spacer
- (1) material support stop
- (1) dust-collection attachment
- Owner's Manual
