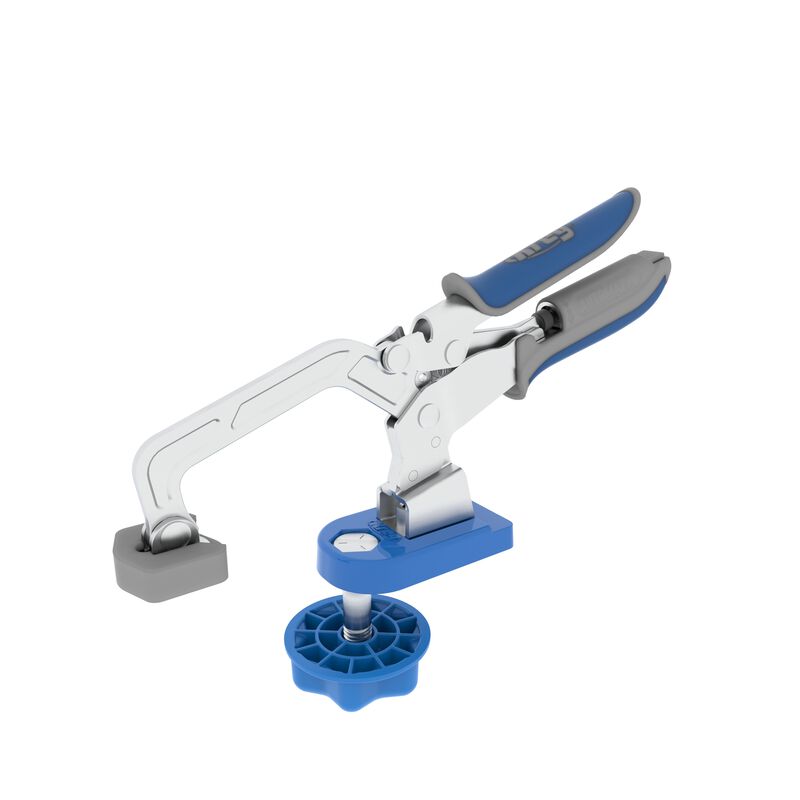

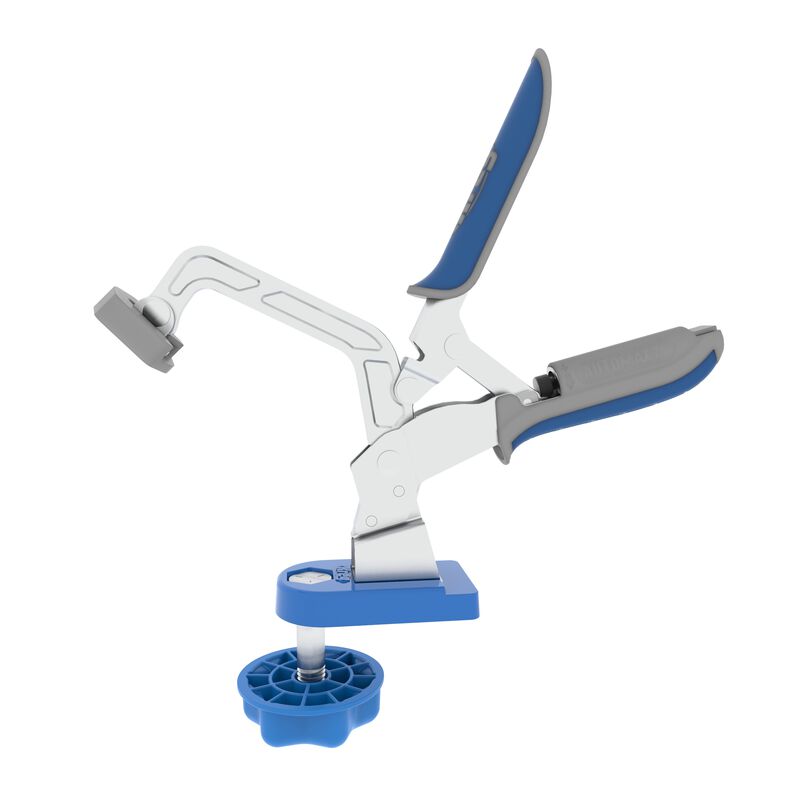

Bench Clamp with Bench Clamp Base
- Includes 3" (76mm) Bench Clamp and Bench Clamp Base with bolt and knob
- Automaxx™ auto-adjust technology adjusts the clamp automatically to match material thickness

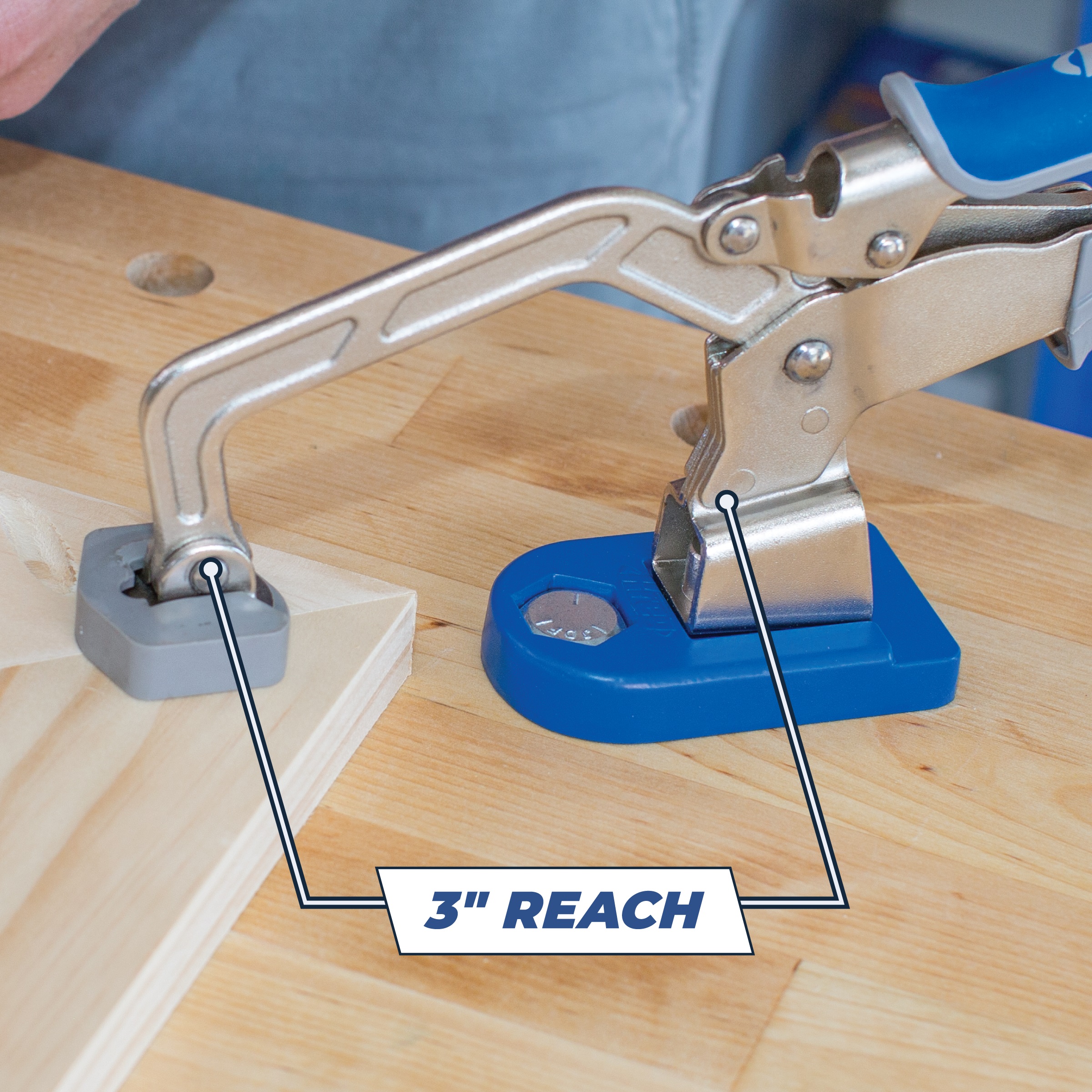

- Clamps materials up to 3 1/2" (88mm) thick: 3" (76mm) reach

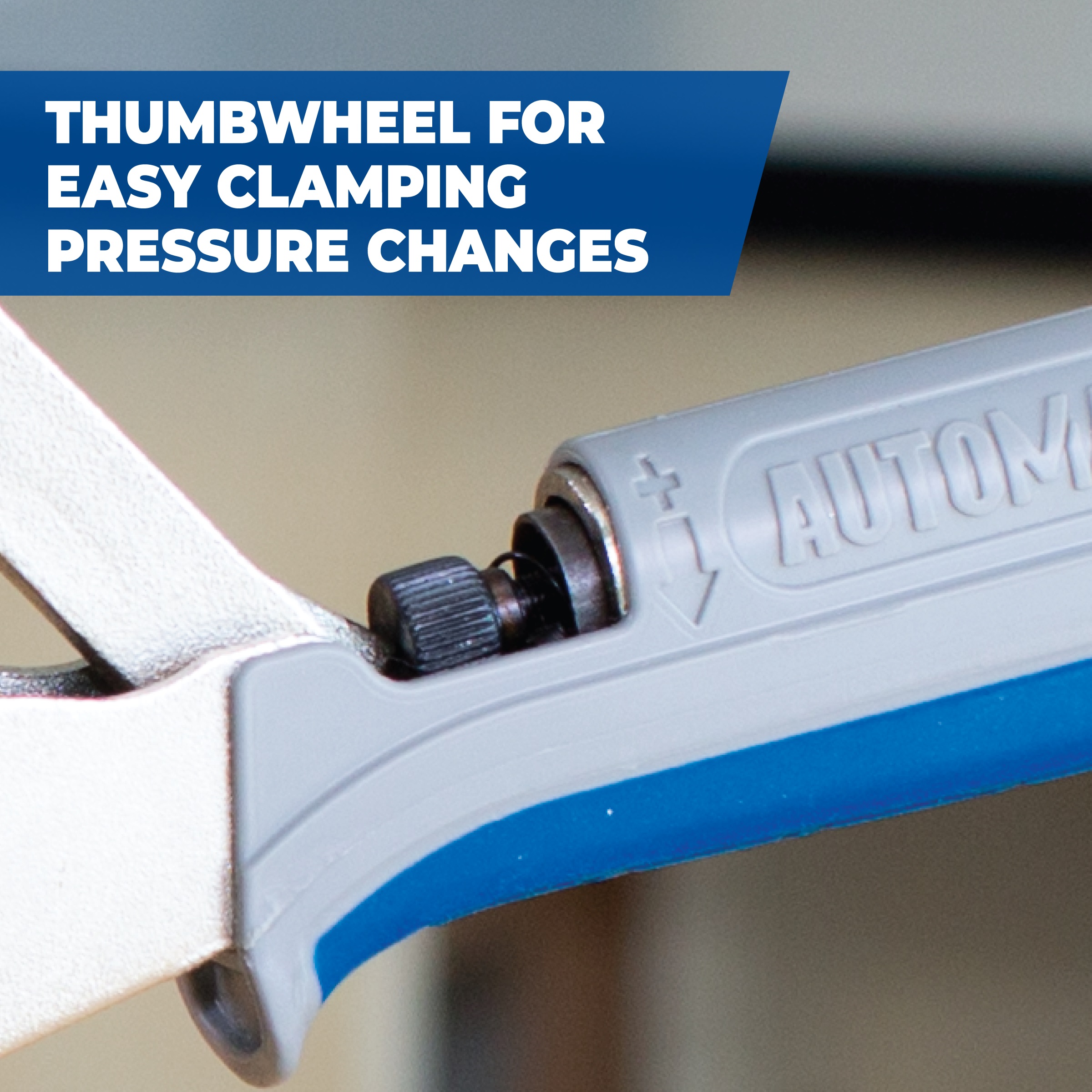

- Easy-to-regulate clamping pressure with a simple thumbscrew

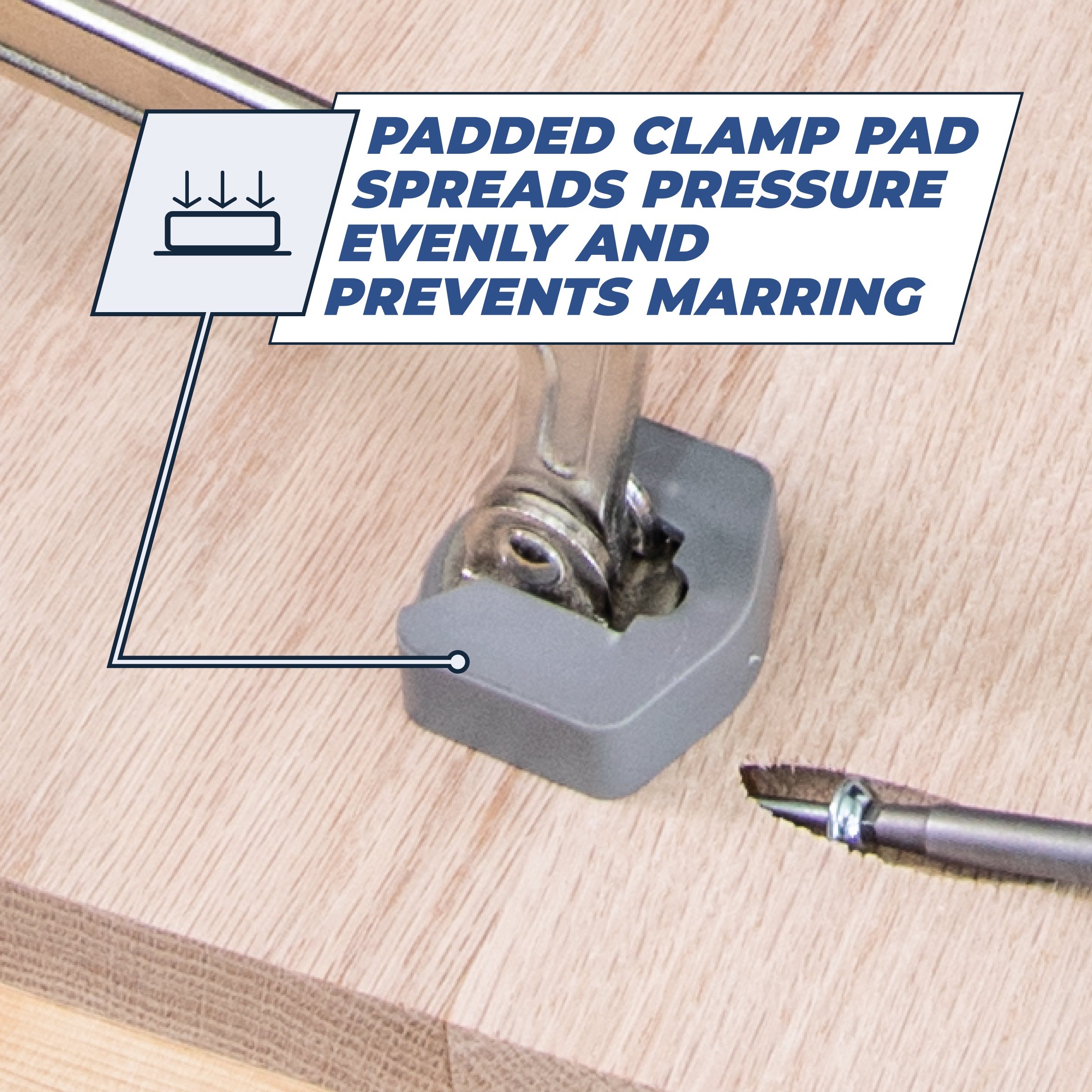

- Extra-large padded clamp spreads clamping pressure evenly

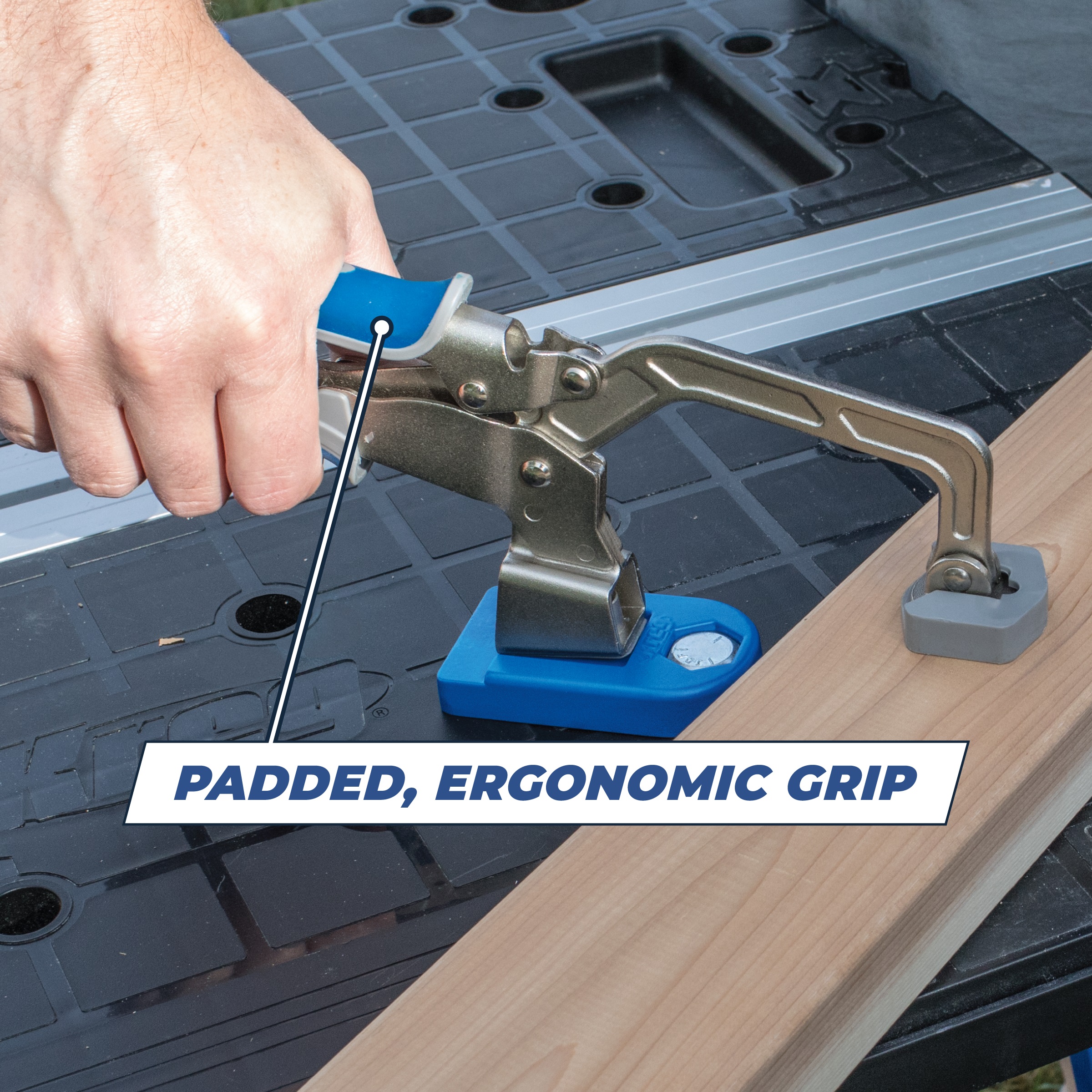

- Ergonomic padded grips prevent hand fatigue
- Compatible with Kreg Clamp Trak and Clamp Vise
Create a versatile, moveable benchtop clamping station
By combining a 3" Bench Clamp with a Bench Clamp Base, this kit allows you to take the power, versatility, and convenience of a Kreg Bench Clamp almost anywhere.

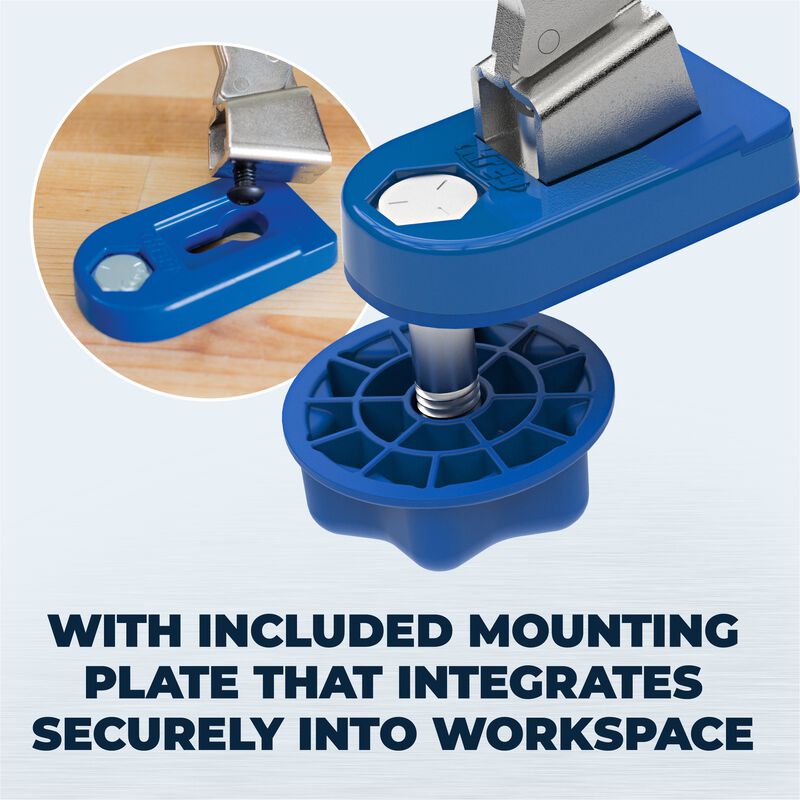

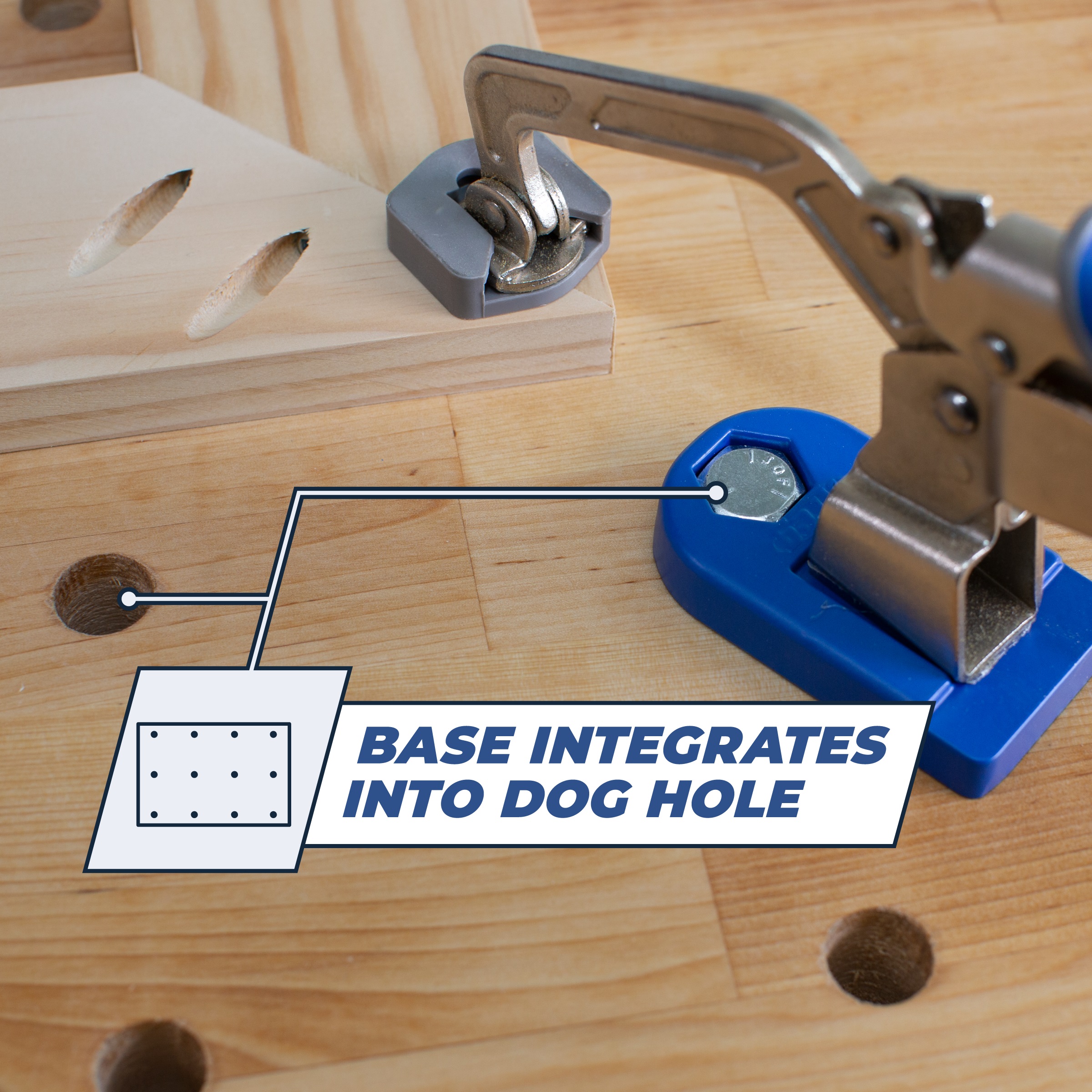

The Bench Clamp Base (also available separately) is made from durable cast aluminum. It can be mounted quickly and easily to any work surface that’s equipped with 3/4" or 20mm bench dog holes. Or, you can simply drill a hole in any work surface, and attach the Bench Clamp Base. You can also remove the Bench Clamp Base just as easily when not in use, or to move it to another location. Plus, the base swivels to offer 360° clamping capability.

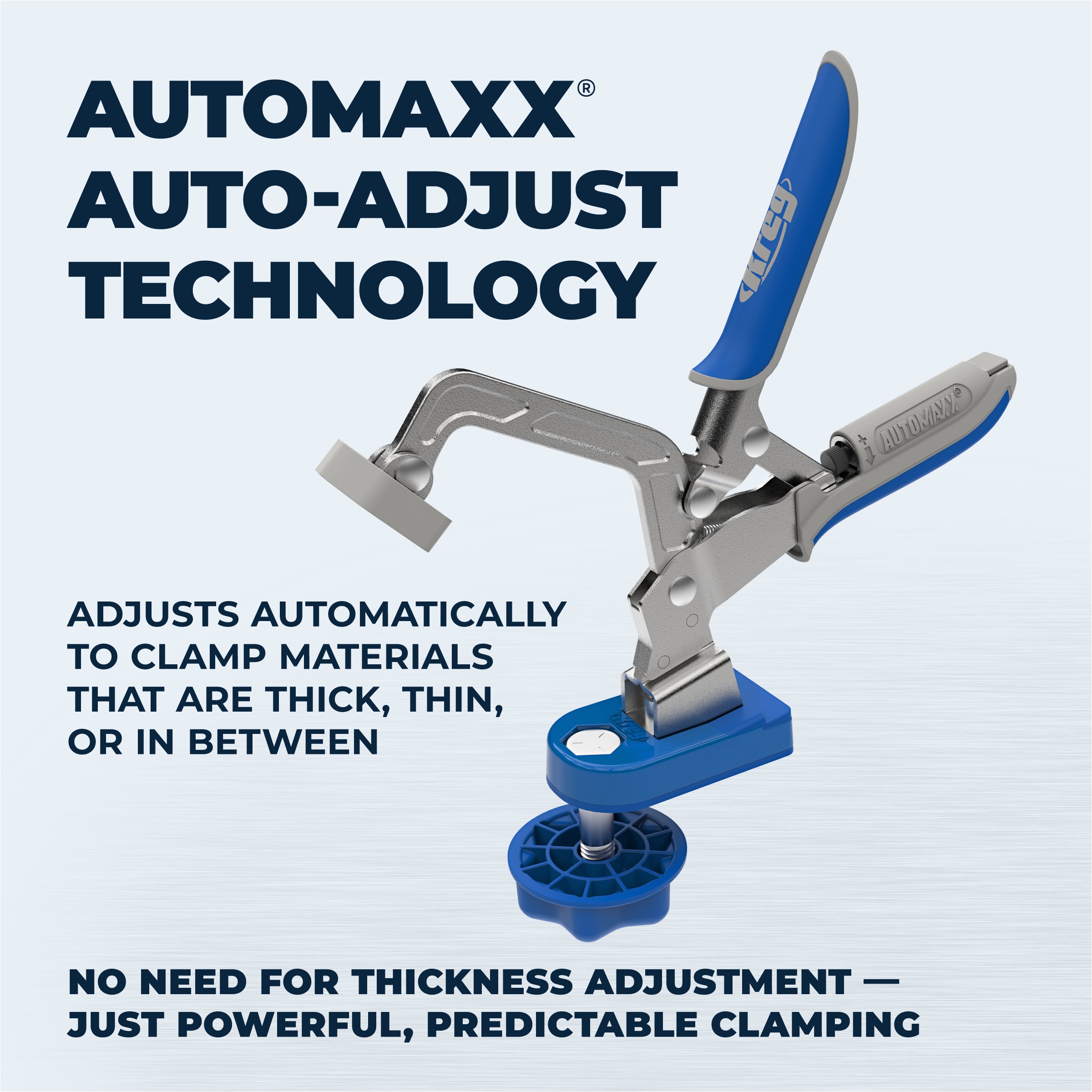

The versatile Bench Clamp in the kit is perfect for Kreg Joinery™, and for project assembly, routing, cutting, sanding, drilling, and more. Thanks to Automaxx® auto-adjust technology, the Bench Clamp adjust to match material thickness automatically with a simple squeeze of handles — whether the material is thick, thin, or in between. You can clamp a 2x4 and then a piece of 1/2" plywood without ever readjusting the clamp.
We take customer
If you have any questions, or issues for any reason, visit our Support Page for answers to common questions, and ways to contact us directly.
|features||Automaxx® Auto-Adjust Technology|
|construction||Steel with Molded Grips, Aluminum|
|adjustability||Adjustable Clamping Pressure|
Your question will appear on the site once someone answers it.
- 5.0 star rating
- 4.0 star rating
- 3.0 star rating
- 2.0 star rating
- 1.0 star rating
Open the jaws of the clamp and back out the adjustment screw to the point where it is loose but not falling out. You should see around 3/8" of threads between the bottom of the head of the screw to where it goes into the handle. You will close the jaws of the clamp all the way, then open them back up. After that, bring the adjustment screw back to the positive about halfway and try to clamp it down.
That adjustment is not an exact adjustment as you may have to tighten or loosen it to get the correct pressure you want to apply. When you are using the clamp, you will want to make sure you are opening the clamp fully when you are moving the clamp. This will allow the Automaxx system to reset to zero each time. You should only need to adjust the adjustment screw if you need to add or take out pressure from the clamp as the clamp will adjust to different thicknesses on its own.
Remove the clamp from the packaging and test the clamp pressure on your material.
If you are happy with the pressure of the clamp, no further adjustment is needed. If you would like more/less clamping pressure, simply open the clamp handles fully. Once open, turn set screw one-half turn (to the positive for more pressure, to the negative for less pressure) to adjust. Try out the clamp on the same material and repeat these steps until the desired pressure is found.
Once you are happy with the clamping pressure, the clamp will maintain this same pressure until you change the setting again. If you would like to increase or decrease clamping pressure, follow the previous steps until the appropriate pressure is met.
To ensure consistent pressure, open the clamp handles completely each time you move the clamp. This allows the Kreg Automaxx system to reset for the correct clamping pressure.
Following these steps will ensure that these clamps will perform their best for all your project-building needs. If you have any additional questions please contact our Support Team at firstname.lastname@example.org.
