Shelf Pin Jig 5 mm

Availability:
  • In Stock
$39.99
  • Highlights
  • Pairs well with Shelf Pins 5 mm
  • Create perfectly spaced holes at 1-1/4" (32 mm) increments
  • Drill clean, precise holes with hardened-steel drill guides
  • 32 mm system compatible for locating hinges and drawer slides
  • Work confidently with alignment windows for visibility
  • Snap two jigs together to quickly drill more holes in one run
  • Keep accessories close by with on-board storage
Show More

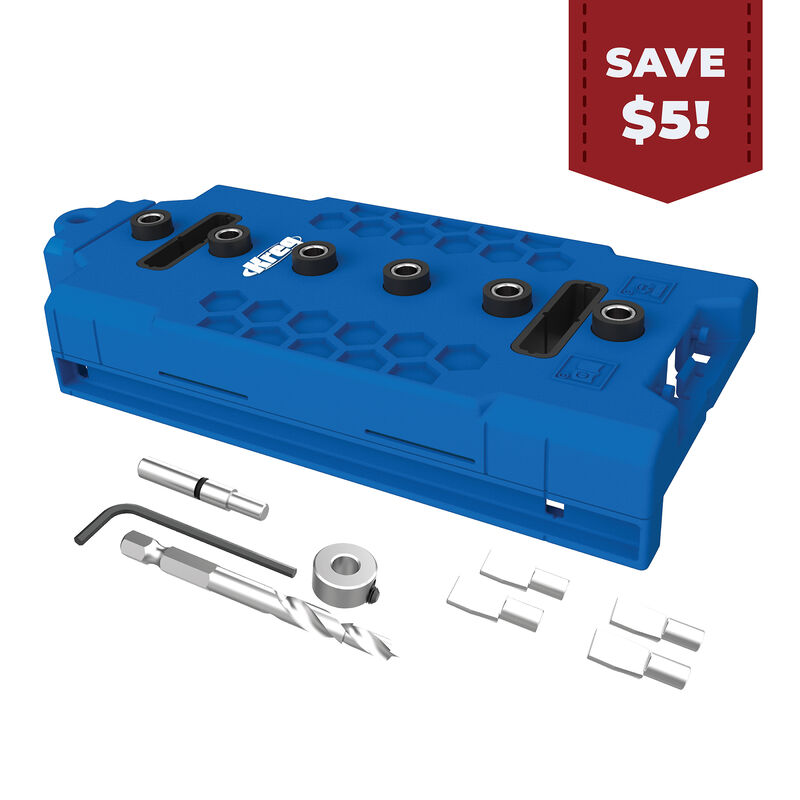

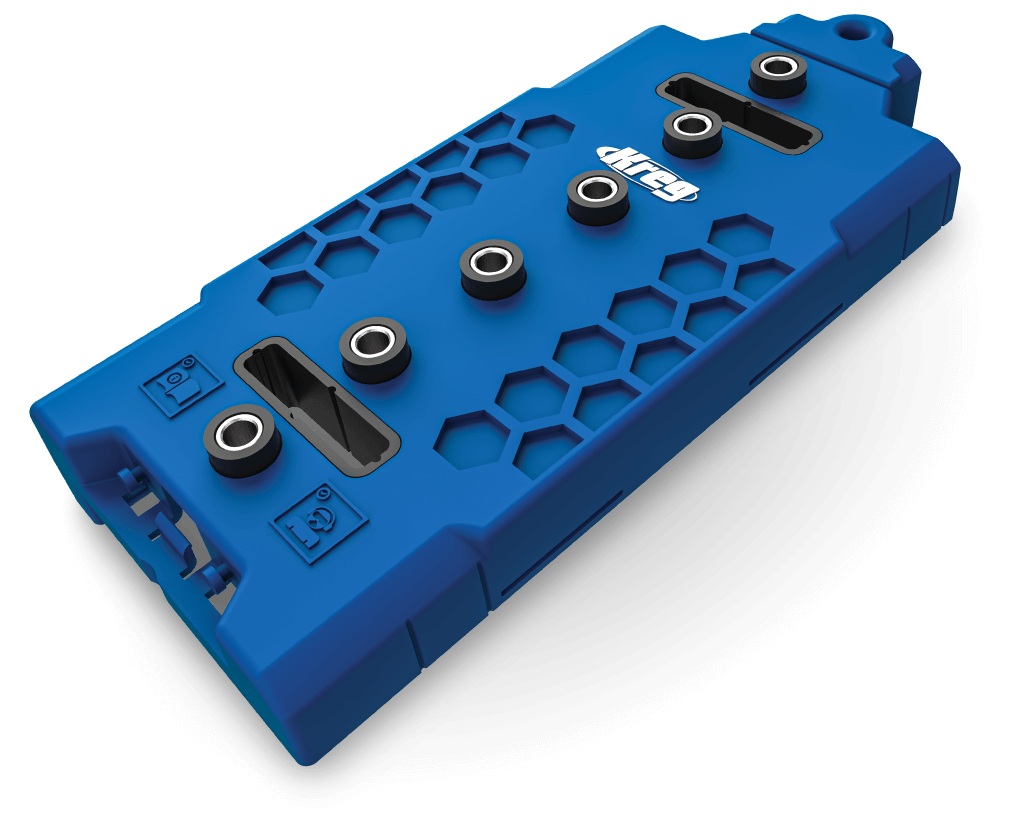

Add perfectly spaced shelf pin holes to your projects with the Kreg Shelf Pin Jig. Hardened-steel drill guides ensure precision for level, wobble-free shelves. It comes complete with a 5 mm high-quality brad-point bit. Drill guides are centered on standard 1 1/4" (32 mm) spacing and feature a lifetime warranty.

Whether you’re adding shelves to existing furniture, or building from scratch, creating the shelf pin holes is easy. Use the fence to align the jig with the edge of your workpiece for straight, accurate rows. Quickly drill six holes in one setup – or connect a second Shelf Pin Jig to drill longer rows of holes with the same consistent spacing.

The jig also has useful features for installing concealed cabinet hinges and drawer slides in frameless cabinets. Molded-in alignment marks and an indicator window help align mounting screws for hinge plates – set at standard backspacing for a 32 mm cabinet system – which also helps with locating the front hole for drawer slide installation.

Show More
adjustability
Dual-position fence
features
  • Six hardened-steel drill guides
  • Consistent 1 1/4" (32 mm) spacing
  • Compatible with 32 mm cabinet system
  • Removable dual-position fence
  • Aids alignment of concealed hinges and drawer slides
  • Connect two jigs without tools
  • Onboard storage for bit, pin, wrench
compatibility
  • Kreg Shelf Pin Jig Drill Bit (1/4")
  • Kreg Shelf Pin Jig Drill Bit (5 mm)
warranty
3 year limited warranty
How to simplify installing adjustable shelves
How to simplify installing adjustable shelves
A tool for every task

The most efficient way to make shelf pin holes for adjustable shelves.

Ingenious

Unique solutions to common problems.

Professional quality

Precise, repeatable results every time.

Easy to use

Approachable, intuitive, easy-to-use tools to help eliminate mistakes.

Quick and simple

Simple design for quick setup.

Easy
Easy

Creates perfectly spaced holes for level, wobble-free shelves.

Precise
Precise

Cams and measuring scale make it easy to set the jig and position the hinge cup precisely.

Fast
Fast

Expandable design lets you snap two or more jigs together for fast drilling of multiple holes.

Repeatable
Repeatable

A locating pin lets you confidently move the jig and reference the last hole drilled.

Durable
Durable

Hardened steel drill guides for years of dependable, accurate drilling.

Versatile
Versatile

A built-in fence aligns with the edge of the workpiece to set the proper. The fence is removable for working inside a case.
