Precision Router Lift RL2.0K

Name: Precision Router Lift RL2.0K
Brand: Kreg Tool
SKU: PRS-RL2.0K
Price: 499.99 EUR
Availability: InStock

Item#: PRS-RL2.0K

Item#: PRS-RL2.0K

Availability:

499,99 €

Quantity

Prices incl. VAT

Quality made in Germany: construction made of high-quality aluminum and steel
Height adjustment to 1/10mm: extremely precise adjustment, with exact scaling and effective spindle lock, easily operated via hex key

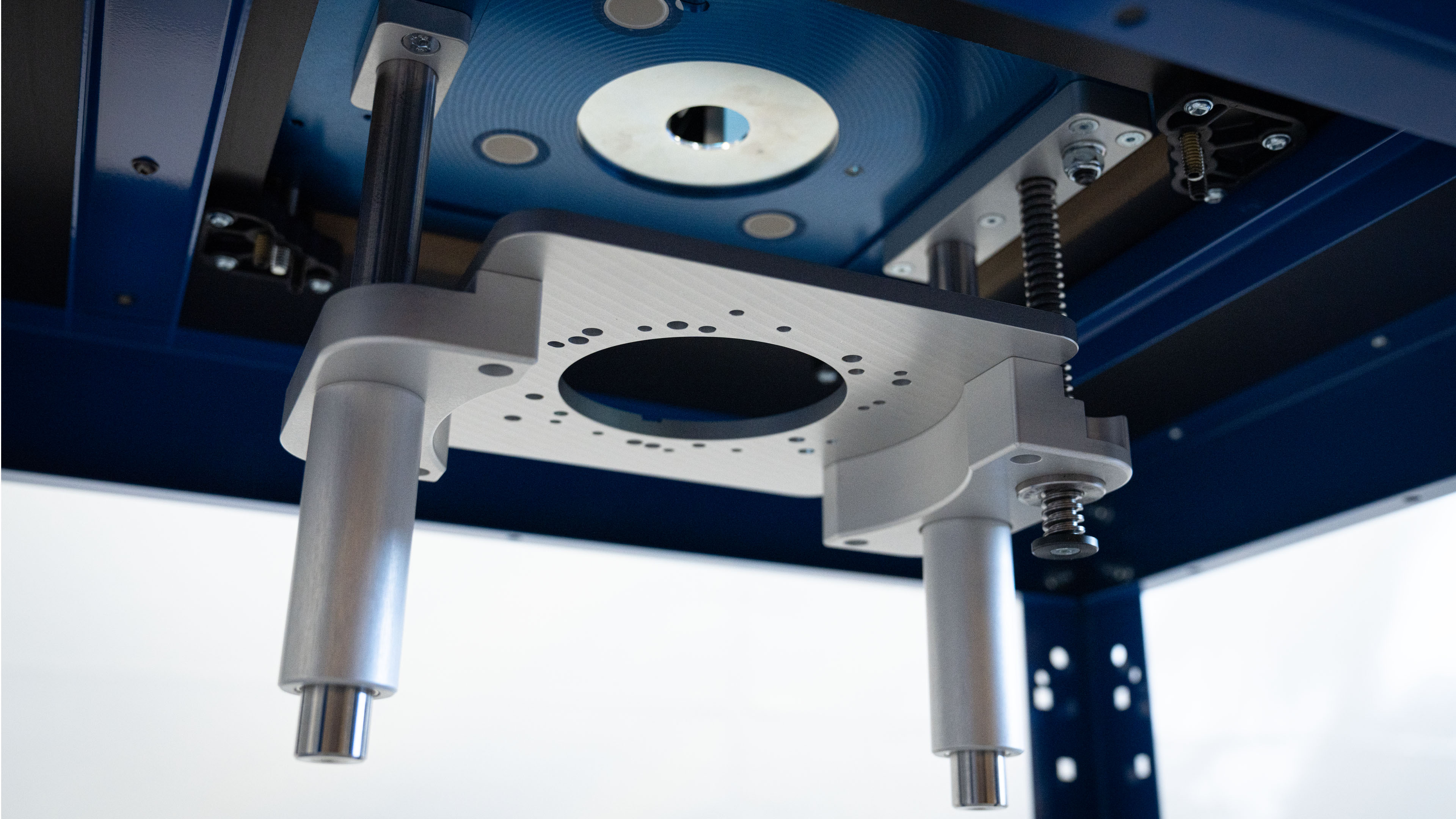

Smooth-running spindle columns: allow for continuous and exact fine height adjustment
Routing without rip fence: 2 drill holes for the rip fence pin enable free routing of e.g. round workpieces without rip fence

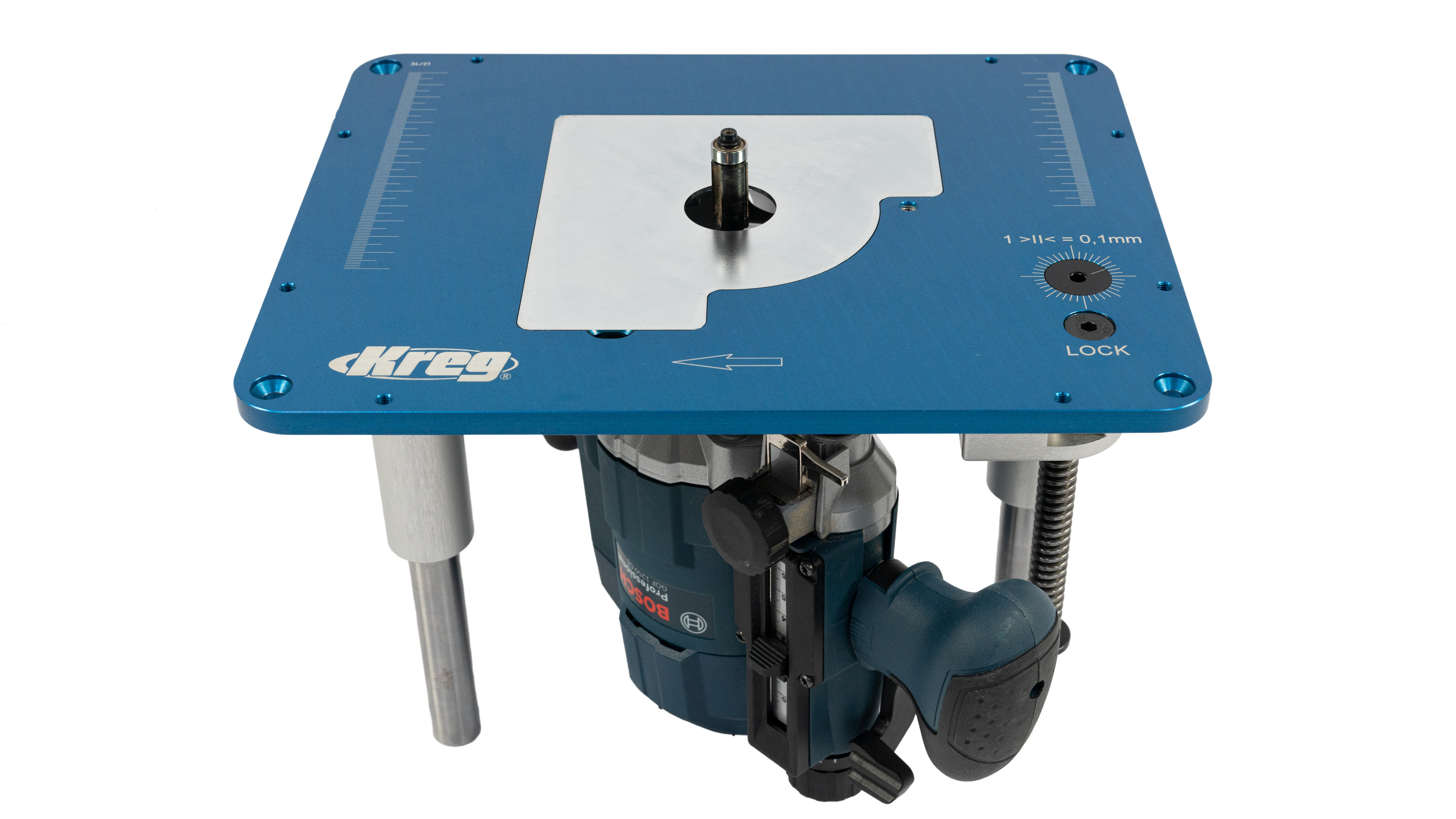

Easy mounting: mount the router to the RL2.0K using pre-drilled mounting holes (hole pattern in operating instructions)
Completely flat: easy levelling of the RL2.0K by means of levelling screws in the insert plate

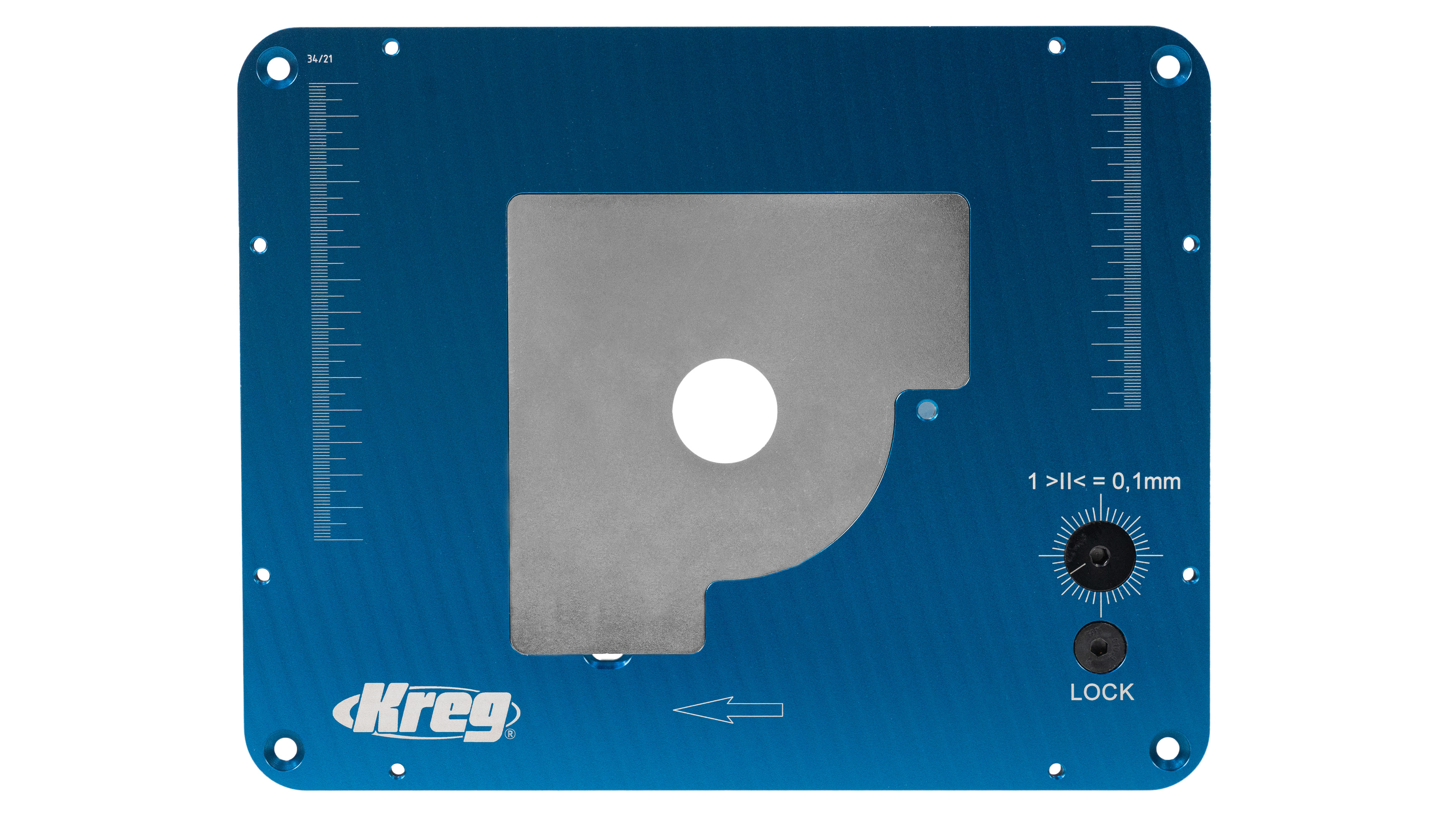

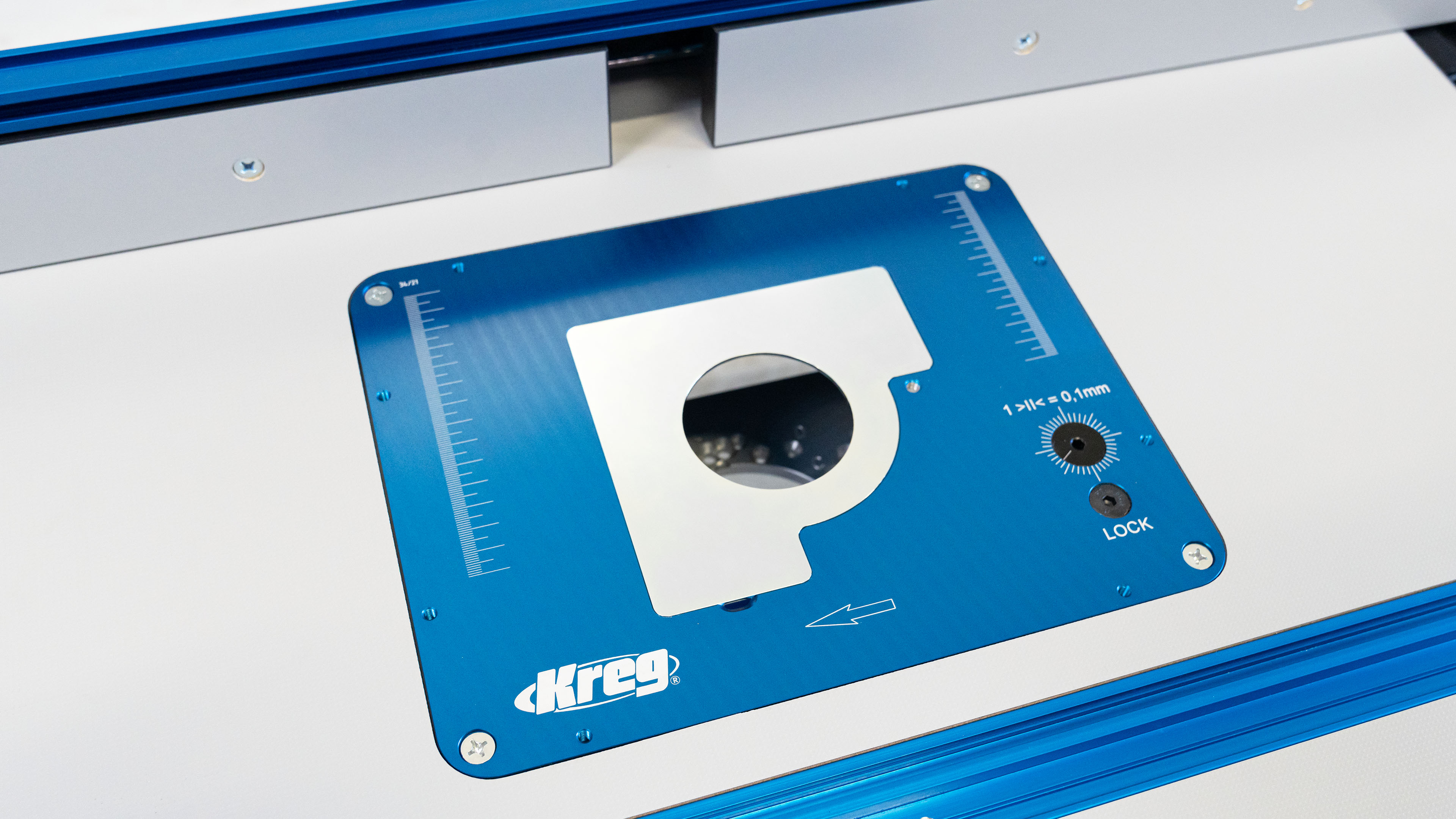

Laser scaling: millimeter scale on the surface for exact alignment of the rip fence
No need to drill your own holes: mounting holes (countersunk head) for quick router table installation are already pre-drilled

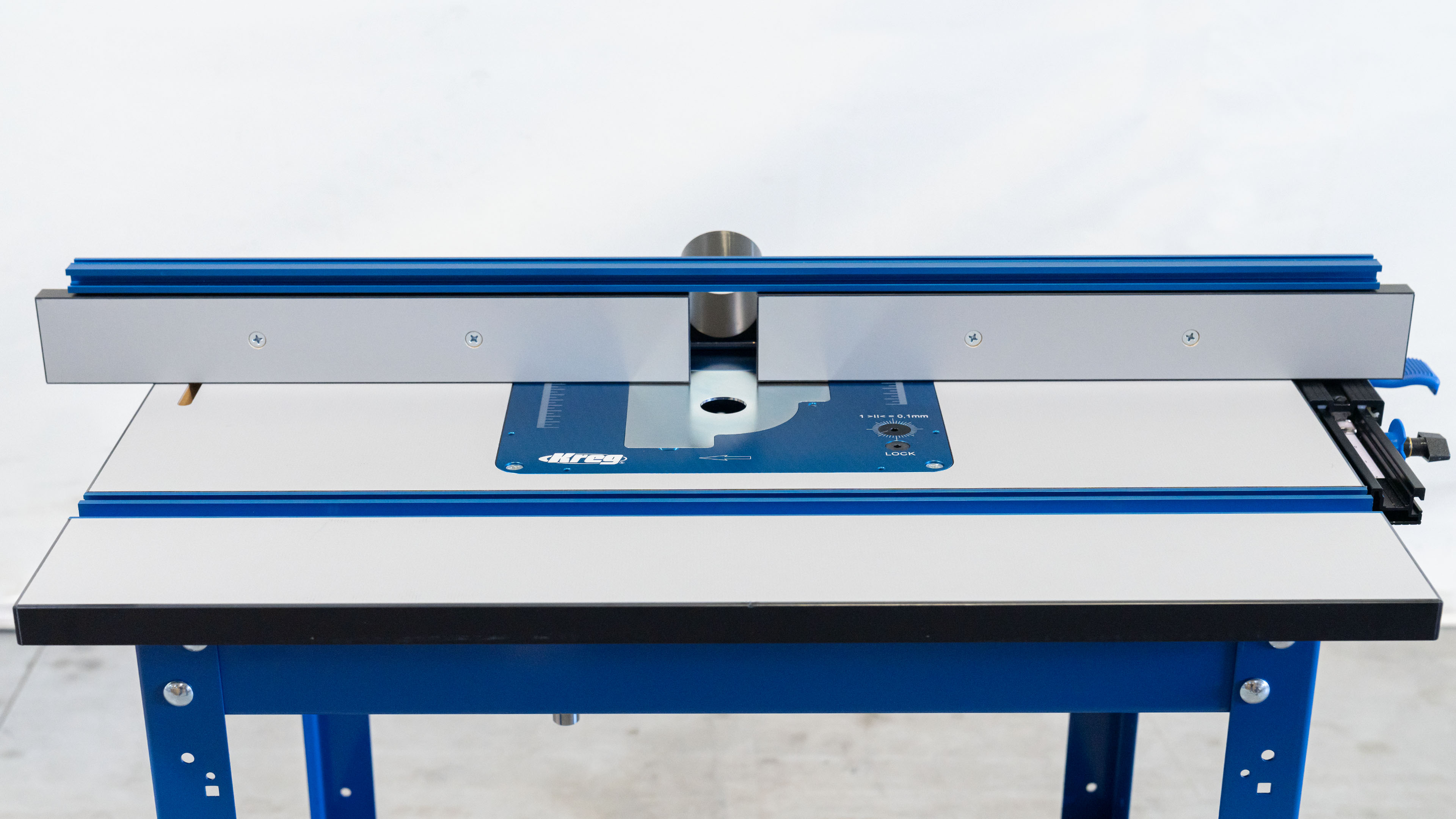

Compatible with Kreg PRS1045 and PRS2100 router table systems

Features

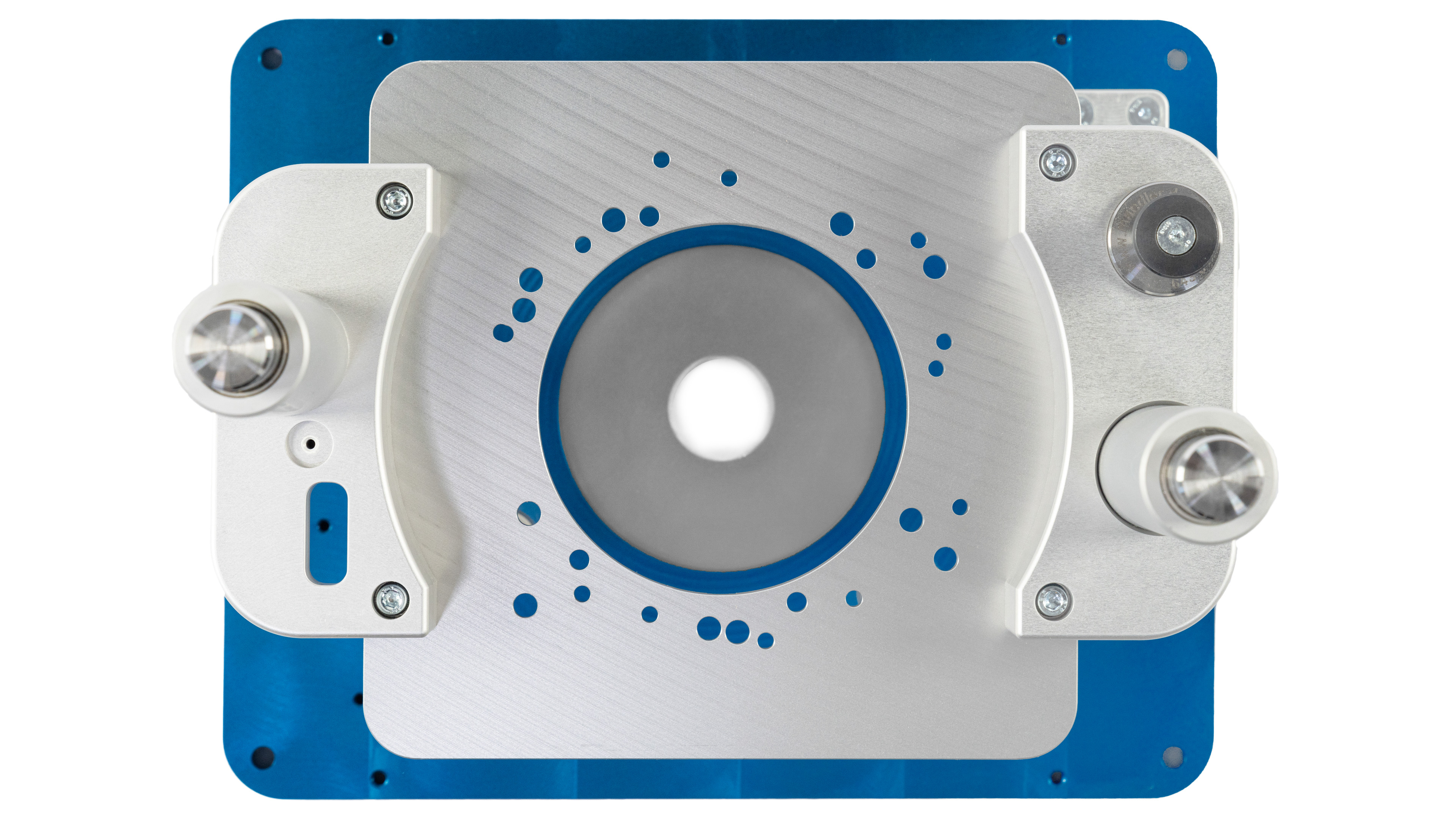

The magnetic reduction plates offer more choice and control in choosing the right hole size. Perfectly adapted to the size of the router cutter - especially for small workpieces, "getting stuck and stuck" at the edge of the hole is eliminated.
Magnets for attaching additional accessories are distributed over the entire reduction plate.
Additional recessed grip for easy changing of the reduction plates.

Construction

Compatibility

Bosch: POF1200AE, POF1300, POF1400ACE, GOF1250CE/LCE, GMF1600CE, GOF1600CE
Casals: CT2200VCE
DeWalt: DW615, DW621, DW622, DW624, DW625, DWE627KT-QS
Elu: MOF96(E), MOF97(E), MOF131, MOF177(E), MOF 177/02 Type 2
Festool: OF1400 (without Dust collection attachment)
Freud: FT2000 (Diabolo), FT2200VCE
Mafell: LO 65 EC
Makita: RP1110
Perles: OF3-808(RE), OF9(E)
Trend: T5, T10, T11
Würth: OF1100E
Exceptions: ELU MOF 96/02 (no tapped holes available), Festool OF2000, OF2200 and DeWalt DW626 (these are too large in the entire circumference and cannot be fitted into the lift construction)

dimensions

Corner radius of insert plate: 19 mm
Dimension insert plate: 298 x 235 x 9 mm
Distance from the top edge of the inlay plate to the base plate of the mounted router: 15 mm (loss of routing depth)
Height adjustment travel/rotation: 4 mm
Height router lift (max. extended): 240 mm
Max. cutter diameter: 86 mm
Max. adjustment travel: 105 mm
Weight: 4.5 kg
