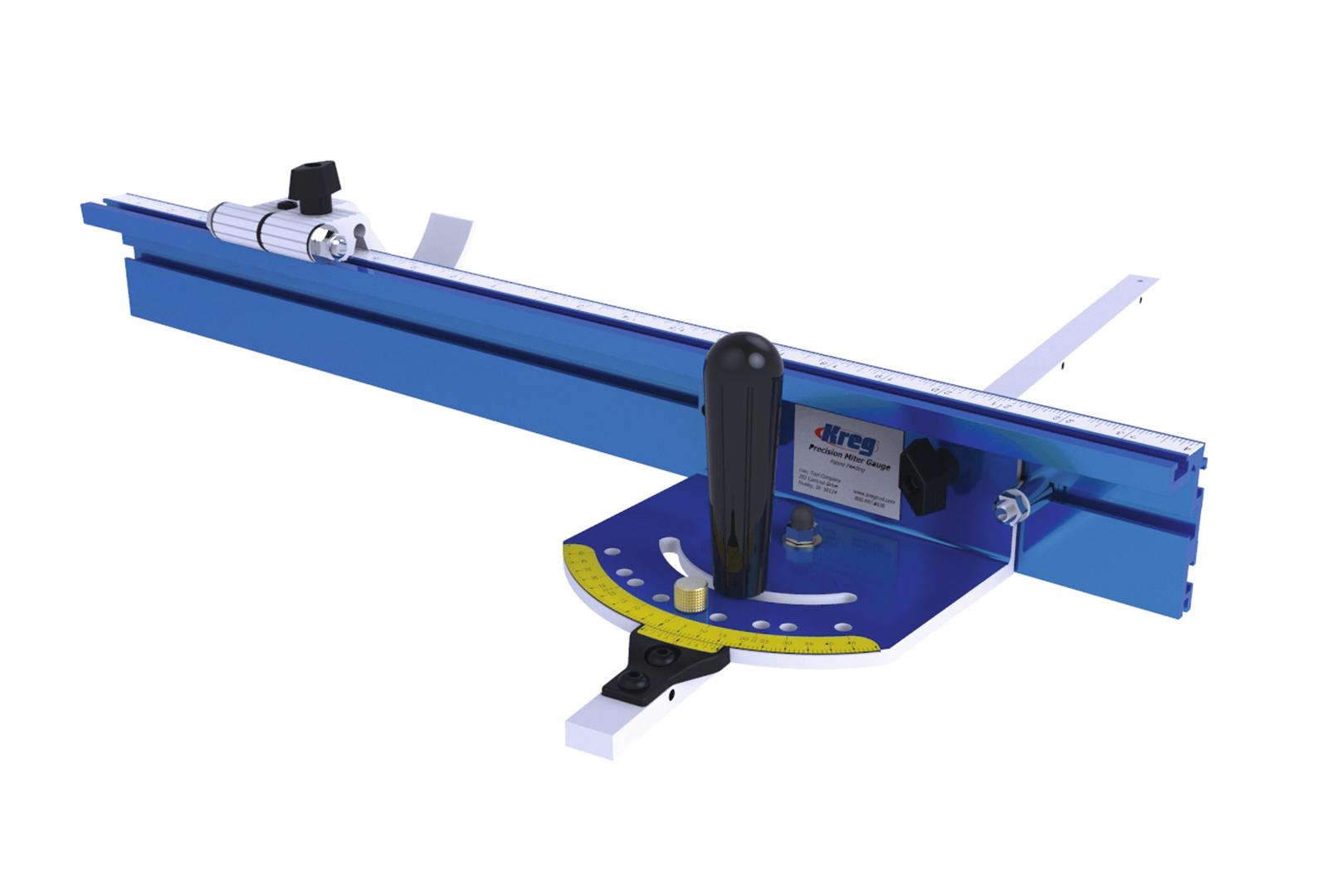

Precision Miter Gauge System

Name: Precision Miter Gauge System
Brand: Kreg Tool
SKU: KMS7102
Price: 177.99 EUR
Availability: InStock

Item#: KMS7102

Precision Miter Gauge System

Item#: KMS7102

Availability:

In Stock

177,99 €

Quantity

Prices incl. VAT

Highlights

Fence for angle milling and cutting
High-quality and very accurately manufactured fence
Side stop made from robust aircraft aluminum
Scale with fine adjustment: 1/10 degree precise, adjustable angles
Quick-adjustable angle stops at 0°, 10°, 22.5° and 45° using a brass knob
Includes oscillating fence that enables repetitive routing and cutting
Swing stop with magnifying glass for better visibility and more accurate setting of the scale (inches)
3/4" (19 mm) wide aluminum rail with 5 separate adjustment screws for optimal guidance

One miter gauge with everything you need for accuracy
Why spend your time calibrating a miter gauge when you can get amazing accuracy right out of the box? Our Precision Miter Gauge System requires no calibrating, and features positive stops at 0°, 10°, 22 1/2°, 30° and 45° to make it easy to cut accurate miters quickly.

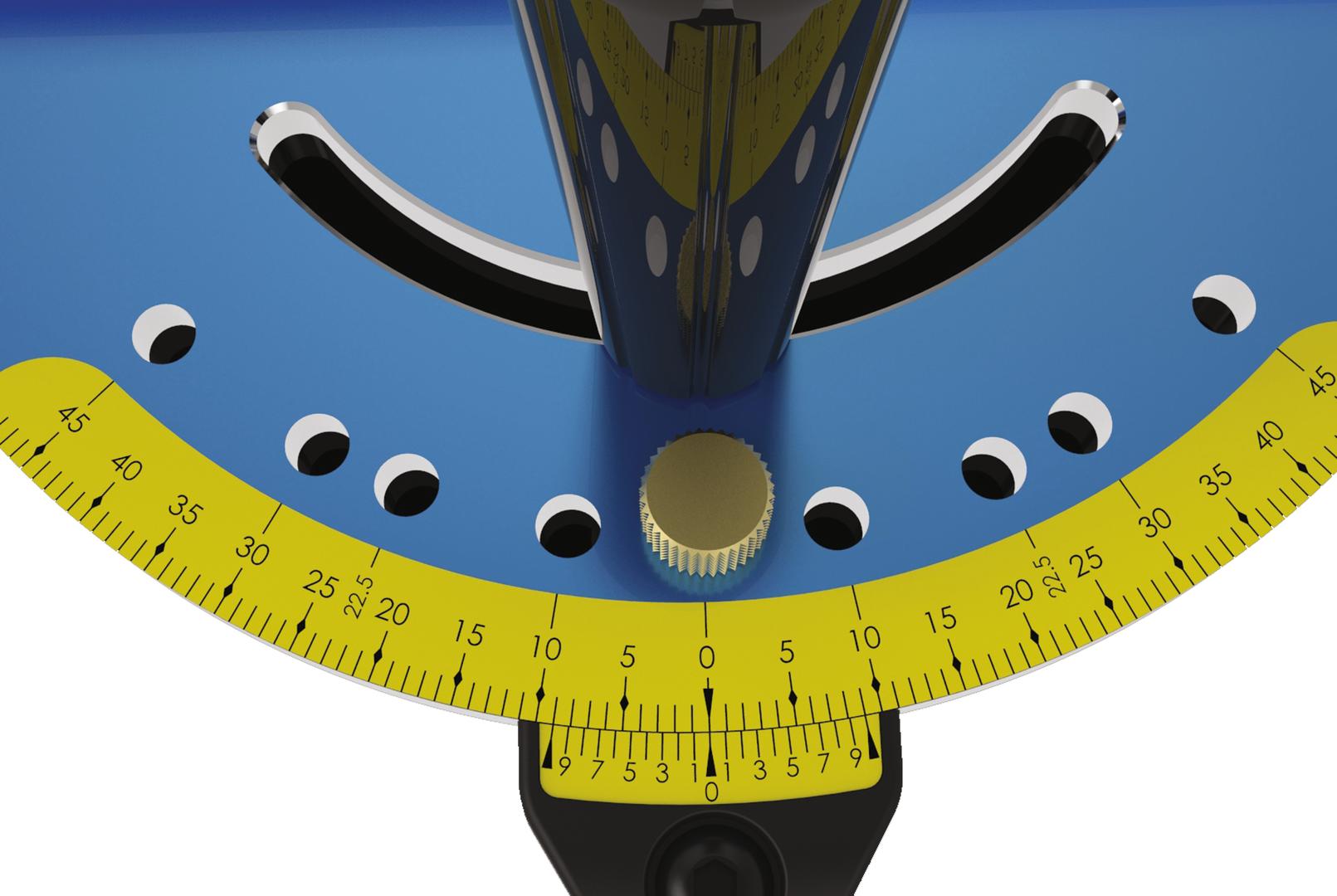

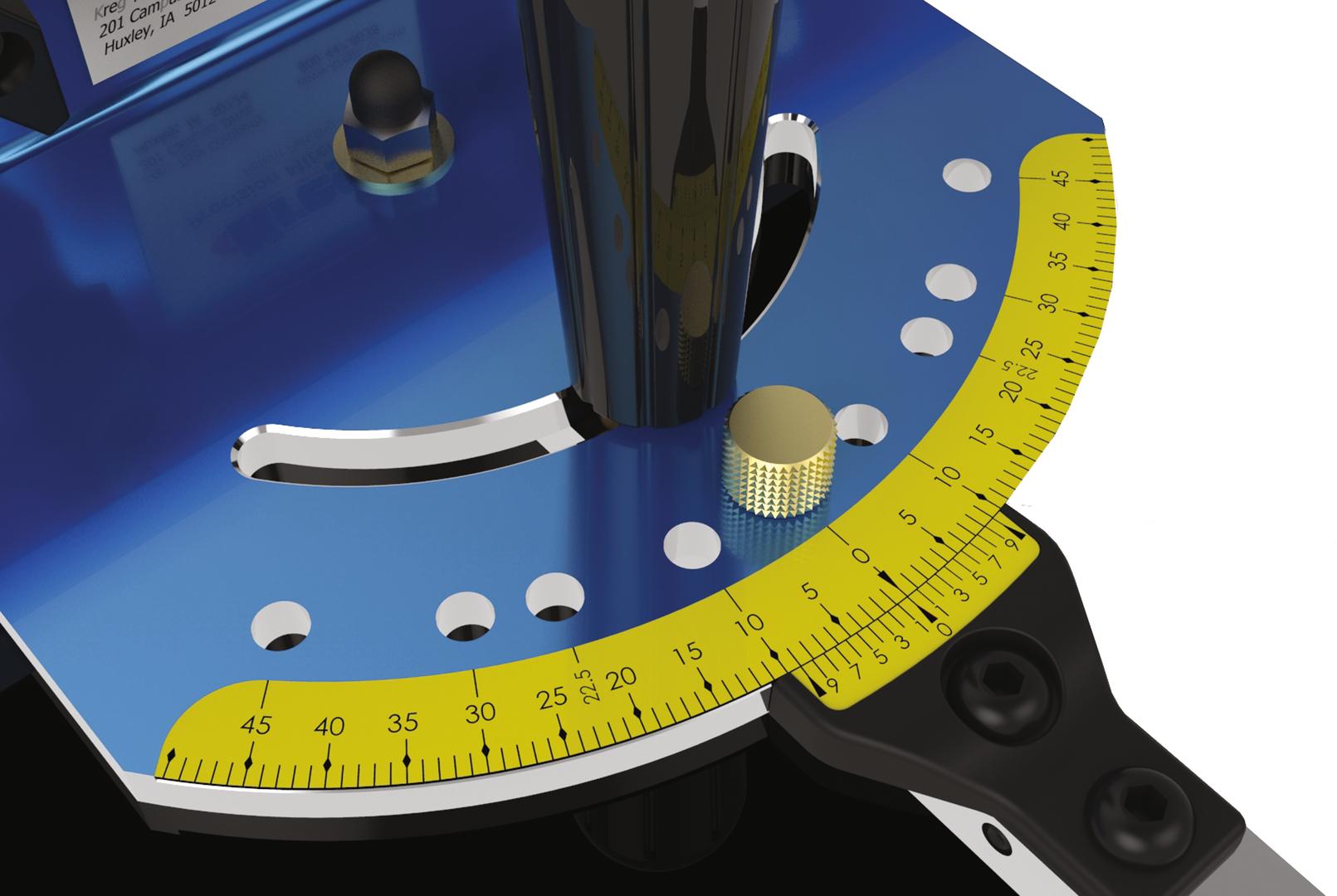

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree. Plus, the Precision Miter Gauge System offers a long, anodized-aluminum fence and stop system that let you easily make accurate, repeatable cuts.

Perfect Miters, Fast!
Precision is the name of the game for this CNC-milled miter gauge. We worked to build accuracy into every feature of this product, from the rugged aluminum fence, to the solid yet versatile Swing Stop, to the easy-to-use yet amazingly accurate Vernier scale. With all of its great features, this miter gauge will give you better, more accurate cuts to ensure project success.

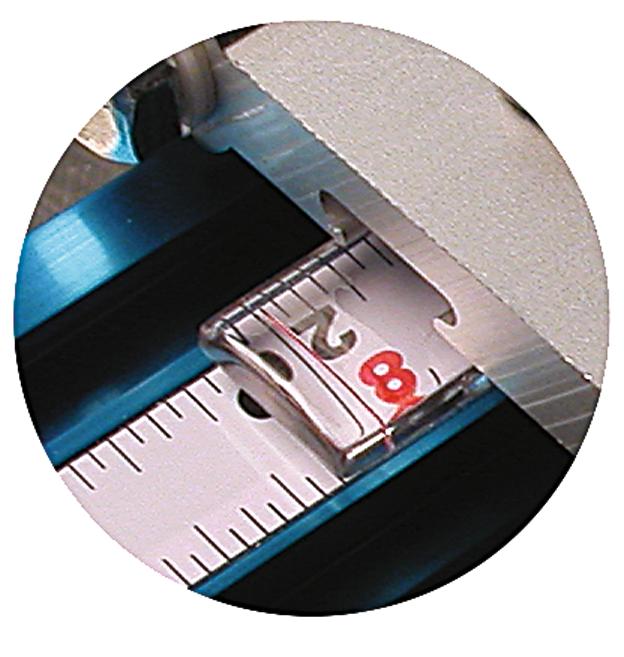

Precision Lens Cursor
Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibility red line that makes it easy to set the Swing Stop for precise cuts, time after time.

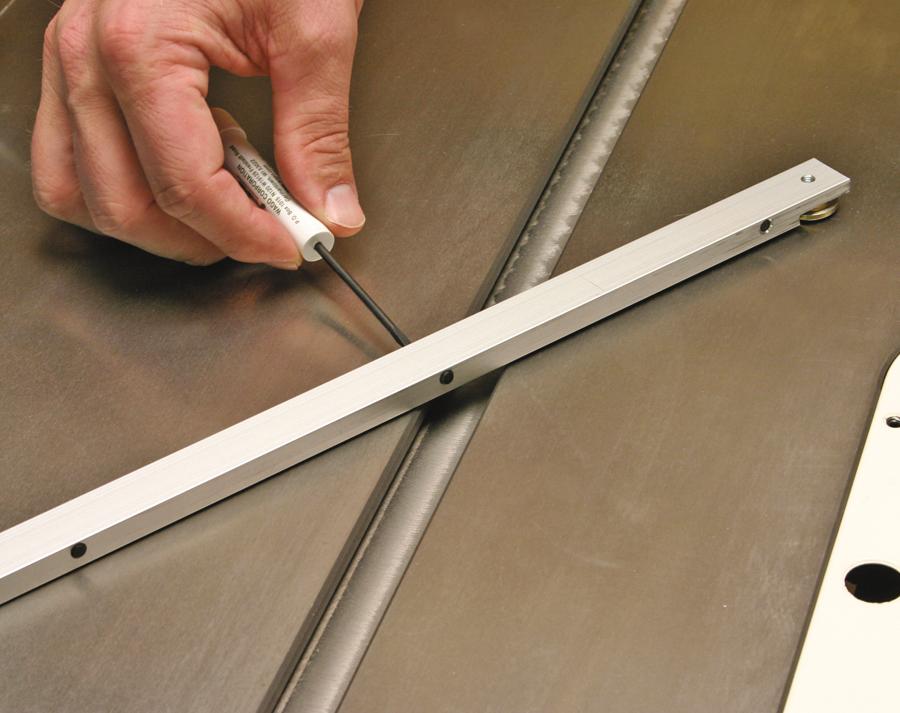

No Play in the Miter Slot
Our extremely straight 24" (610mm) anodized-aluminum bar is 3/8" (9.5mm) thick by 3/4" (19mm) wide, and features five bar adjusters that you can use to eliminate "play" in the miter slot with the turn of a screw driver.

Swing Stop
The Swing Stop slides effortlessly along the fence of the Precision Miter Gauge and locks securely into place with the turn of a knob. It also features a curved foot that lets you easily swing the stop temporarily out of the way without having to remove it. That means you can quickly square one end of a board, flip it around, and then cut it to final length without ever moving the stop.

Add a Versatile Fence
The curved foot of the Swing Stop can be used as its "break-away" design allows you to add a versatile, heavy-duty fence to your Miter Gauge.
